Specifications
Brand Name :
FDR
Model Number :
M200
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Supply Ability :
1000
Delivery Time :
15
Productname :
Delta Robot Feeding Workstation
Installationtype :
Desktop or Bench-mounted
Framematerial :
Aluminum Alloy
Payloadcapacity :
Up to 5 kg
Workingradius :
500 mm
Robottype :
Delta Robot
Operatingtemperature :
0°C to 45°C
Repeatability :
±0.02 mm
Application :
Feeding and Material Handling
Weight :
Approximately 50 kg
Controlsystem :
PLC and Servo Motor Control
Safetyfeatures :
Emergency Stop, Safety Sensors
Maximumspeed :
3000 mm/s
Degreesoffreedom :
3
Description

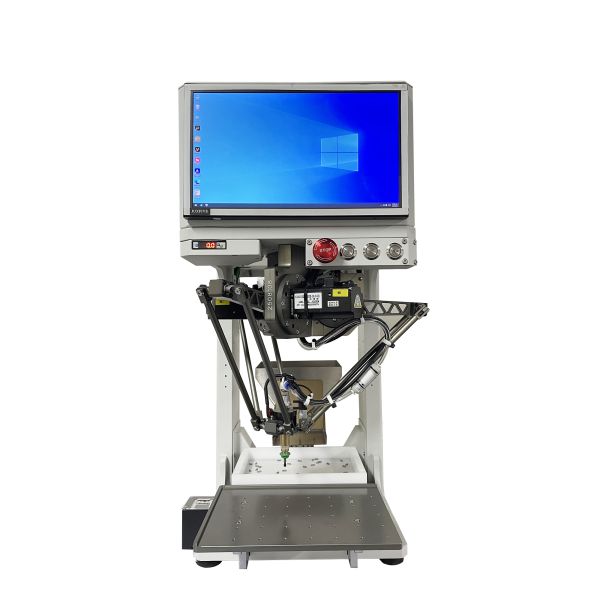

M200.PDF Delta Robot Feeding Workstation | Automatic Small Parts Picking & Loading Station
This automatic Delta robot feeding workstation is specially designed for high-speed automatic picking, sorting and loading of tiny and small parts. It is widely applied in 3C electronics, semiconductor, food packaging, pharmaceutical, hardware and plastic industries.
Application Scenarios
The system handles bulk disordered small components such as electronic connectors, precision screws, nuts, plastic accessories, capsules, candy and miniature stamped parts. Equipped with vision positioning system, it realizes random material feeding, automatic identification, precise grabbing and orderly palletizing/assembly line feeding.
Core Components

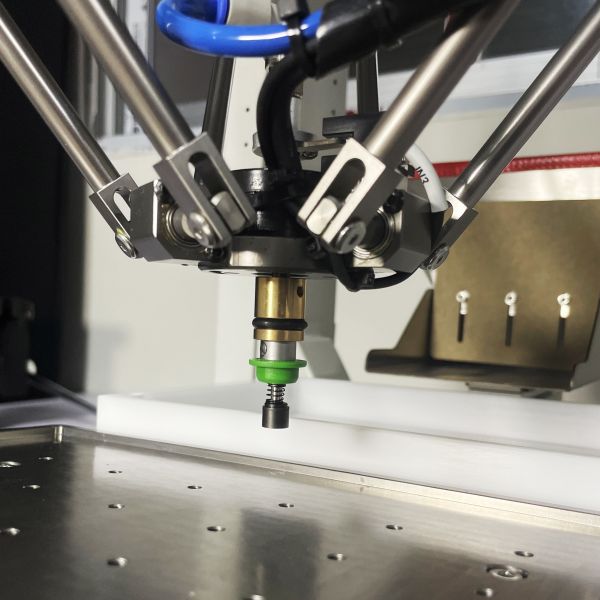

  • Delta Robot (Parallel Manipulator): Consists of 3 sets of servo linkages and a moving end platform; payload 0.3–10kg; repetitive positioning accuracy ±0.01~±0.1mm; cycle rate 100–200 cycles per minute

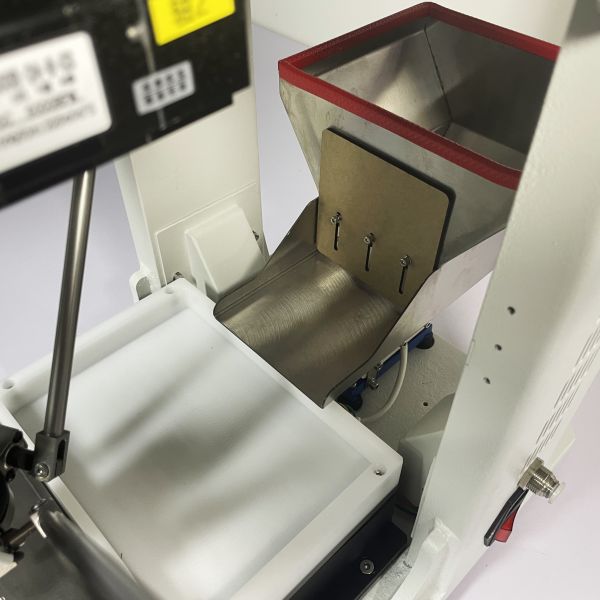

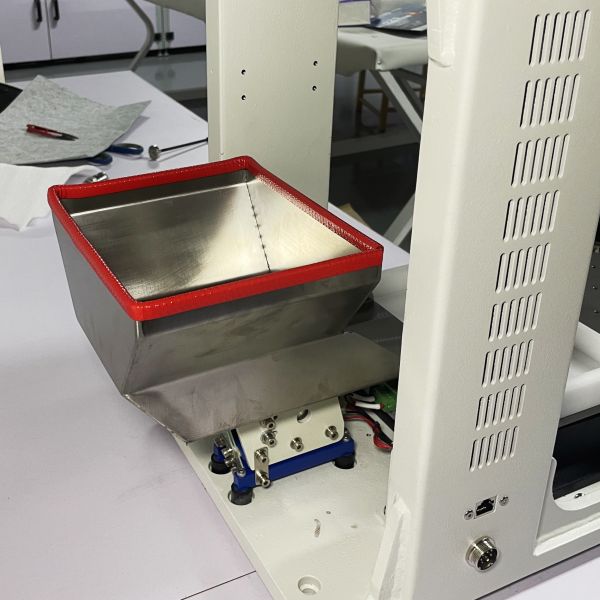

  • Flexible Vibratory Feeder: Scatters scattered small parts evenly with random postures for visual recognition and robotic picking; compatible with mixed materials of multiple specifications
  • Machine Vision System: Top camera (global positioning) + bottom camera (secondary correction); positioning accuracy up to ±0.05mm
  • Control System & End Effector: Integrated vision and motion controller with EtherCAT bus; vacuum suction cup and micro gripper options
Working Process
  1. Manual / hopper feeding → Material dispersion and homogenization by flexible vibratory feeder
  2. Top-view camera imaging → Visual recognition of part position and posture → Coordinates transmitted to the Delta robot
  3. High-speed movement of Delta robot → Precise picking (vacuum adsorption)
  4. (Optional) High-speed capturing by bottom camera → Secondary position correction → Parts placed into jigs, carriers or production lines
Core Advantages
  • High Speed & High Efficiency: Up to 2000–4000 cycles per hour, replacing 2–3 operators
  • High Flexible Changeover: Mixed production of multiple products; model switching within 5 minutes
  • High Precision & Non-damage: Positioning accuracy up to ±0.01mm level; yield rate above 99.5%
  • Space & Cost Saving: Covers 0.5–1m² with investment payback period of 6–12 months
Typical Industries & Processed Materials
  • 3C Electronics: Small components for mobile phones, earphones and watches, chips, resistors, capacitors, connectors
  • Precision Hardware: Micro screws, springs, stamped parts, turned parts
  • Semiconductor & Optics: Wafer fragments, lenses, optical filters, ceramic micro-parts
  • Food & Pharmaceutical: Capsules, tablets, small packaged products, plastic shells
Key Selection Parameters
  • Part Size: 1–50mm (mainstream), maximum size ≤100mm
  • Part Weight: 0.1–500g, preferably less than 100g
  • Cycle Requirement: ≥60 cycles per minute
  • Positioning Accuracy: Standard ±0.1mm; high-precision ±0.01~±0.05mm
  • Changeover Frequency: Flexible solution preferred for production with ≥3 product types per day
Equipment Specifications
Parameter Specification
Model FDR-M200
Appearance Size 610*345*648mm (Lx Wx H)
Air Pressure 0.5-0.7Mpa
Power 0.6KW
Maximum Working Radius 200mm
Maximum Load 0.75KG
Maximum Grab Weight 0.5KG
Plate Size 250*200mm
Place Accuracy ±0.05mm
CT 0.6s
UPH 6000
Overall Weight 75KG
