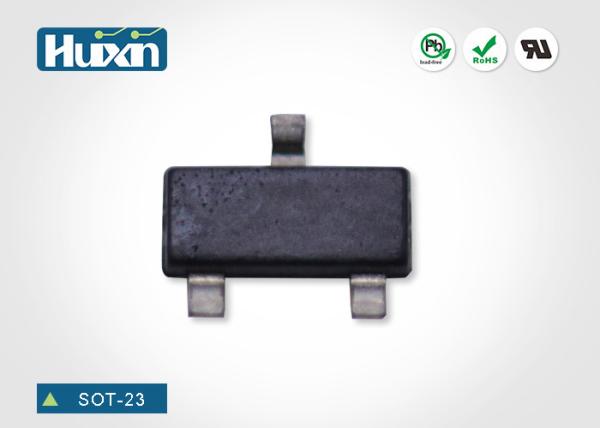

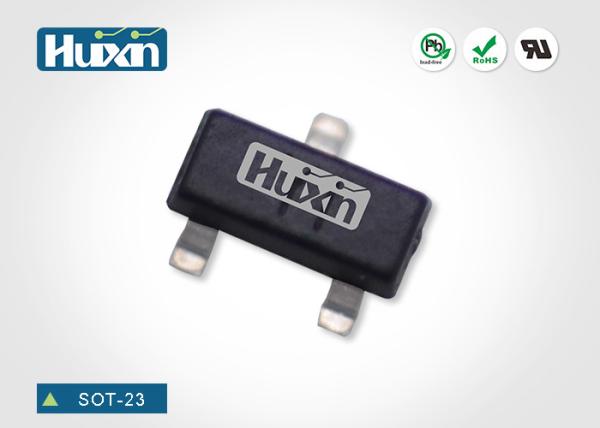

Small Signal High Speed Switching Diode BAV99 with SOT-23 Package
Small Signal High Speed Switching Diode BAV99 with SOT-23 Package
Small Signal High Speed Switching Diode BAV99 with SOT-23 Package
Small Signal High Speed Switching Diode BAV99 with SOT-23 Package
Specifications
Brand Name :
Huixin
Model Number :
BAV99 SOT-23
Certification :
ISO14001 ISO9001 IATF16949 UL
Place of Origin :
China
MOQ :
3000pcs
Payment Terms :
T/T, Paypal, Cash
Delivery Time :
2-4Weeks
Packaging Details :
3000pcs/ Reel
Price :
Negotiable
Supply Ability :
1 billion pieces/ Month
Type :
Small Signal Switching Diode
Package :
BAV99 SOT-23
Package Type :
SMD Surface Mount Diode
MPQ :
3000pcs
Sample Time :
5-7Days
Lead Time :
3-4Weeks
Applications :
Switching Use
Lead Free Status :
RoHS Compliant
Power Dissipation :
350mW
Marking Code :
A7
Description

BAV99 SOT-23 High Speed Switching Diode Small Signal Switching Diode

Small Signal High Speed Switching Diode BAV99 with SOT-23 Plastic Package
Specification Features:


  • Fast Switching Speed
  • For General Purpose Switching Applications
  • High Conductance
  • Marking Code: A7
  • Plastic Surface mounted package, 3 leads

Absolute Maximum Ratings and Characteristics at ( Ta=25℃unless otherwise specified )



Parameter Symbol Value

Units
Peak Reverse Voltage VRM 85

V
Reverse Voltage VR 75

V
Continuous Forward Currenet( Double Diode Loaded) IF(AV) 125

mA
Continuous Forward Currenet( Single Diode Loaded) IF(AV) 215

mA
Repetitive Peak Forward Current IFRM 450

mA
Non-repetitive Peak Forward Surge Current at t=1us IFSM 4.5

A
Power Dissipation PD 350

mW
Junction Temperature TJ 150

℃



FIVE CORE ADVANTAGES

1.Ensure excellent quality products with professional technology
  • Focusing on R & D and manufacturing of semi- conductor devices for years with abundant experience and unique professional technology;
  • Owning 100,000 square meters factory and equipping the international advanced automation equipments and testing equipments;
  • SGS Test passed, and all products complying with RoHS and REACH 1907/2010/EC48 criteria



2.Providing efficient and convenient services

  • Management center is in southern China, providing customers with efficient and convenient services for import and export.

3.Purchasing without worry due to the help of technical guidance center
  • Providing real-time purchasing assistant, and offering the best procurement project for customers in less than 30 minutes after requests;
  • Free FAQ helping you to choose the most appropriate products and save your money;
  • Providing free sample for any product and free technical support for customers

4.Non-standard product development and production available
  • Customizing special products to meet clients' needs with professional R & D team;
  • More than 30 auto-production lines and be able to launch temporary production line, providing customers with volume production of non-standard products


5.Continuous and stable supply, on time delivery
  • Owing more than a thousand types of products with of billion annual production capacity;
  • Adopting efficient ERP management system, guaranteeing the order be processed within 15 minutes;
  • Keeping strategically cooperative relationship with SF Express, DHL, UPS, EMS, etc., ensuring products delivered in the fastest way.
