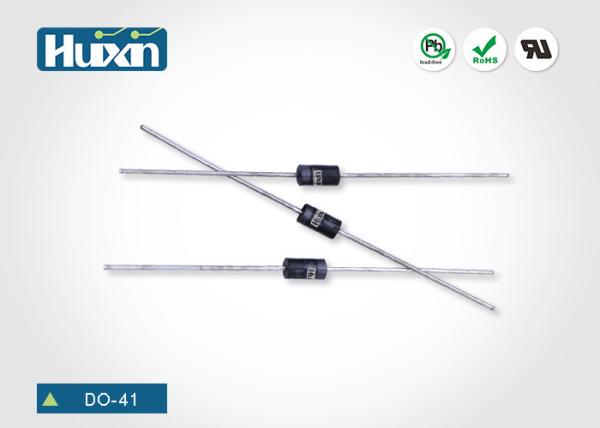

General Purpose Fast Recovery Epitaxial Diode 1.0 Ampere 800 Voltage DO-41

HER101~HER108 DO-41 Datasheet.pdf

Features:

​

  • The plastic package carries Underwriters Laboratory Flammability Classification 94V-0
  • Open Junction chip
  • Low reverse leakage
  • High forward surge current capability
  • High temperature soldering guaranteed

Mechanical Data:

  • Case : Molded plastic body
  • Terminals : Solder plated, solderable per MIL-STD-750,Method 2026
  • Polarity : Polarity symbol marking on body
  • Mounting Position : Any
  • Weight : 0.0088 ounce, 0.25 grams

Maximum Ratings And Electrical Characteristics:

Ratings at 25 C ambient temperature unless otherwise specified.Single phase half-wave 60Hz,resistive or inductive load,for capacitive load current derate by 20%.

Parameter

SYMBOLS

 HER101 HER102 HER103 HER104 HER105 HER106 HER107 HER108 UNITS
Maximum Repetitive Peak Reverse Voltage

VRRM

 50 100 200 300 400 600 800 1000 Volts
Maximum RMS Voltage

VRMS

 35 70 140 210 280 420 560 700 Volts
Maximum DC Blocking Voltage

VDC

 50 100 200 300 400 600 800 1000 Volts
Maximum Average Forward Rectifier Current at TL=100°C

IF(AV)

 1.0 Amps
Peak Forward Surge Current ,8.3msSingle Half Sine-Wave Superimposed on rated load

IFSM

 35 Amps
Maximum Instantaneous Forward Voltage at 1A

VF

 1 1.4 1.7 Volts
Maximum DC Reverse Current at rated DC blocking voltage TA=25°C

IR

10

 μA
TA=125°C

500
Maximum Reverse Recovery Time

Trr

 50 75 ns


Note: 1.Reverse recovery condition IF =0.5A,IR =1.0A,Irr=0.25A

2.Measured at 1MHz and applied reverse voltage of 4.0V D.C.
