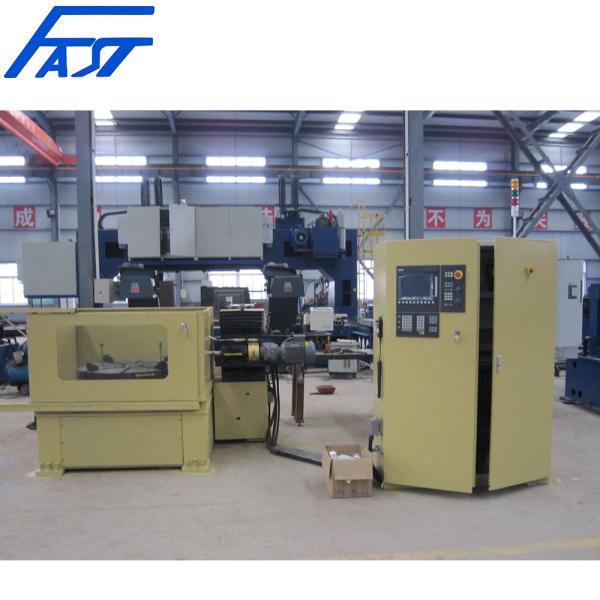

Jinan FAST CNC Horizontal Drilling Machine Model HZ900 For Drilling On Ring Workpieces.
Jinan FAST CNC Horizontal Drilling Machine Model HZ900 For Drilling On Ring Workpieces.
Jinan FAST CNC Horizontal Drilling Machine Model HZ900 For Drilling On Ring Workpieces.
Jinan FAST CNC Horizontal Drilling Machine Model HZ900 For Drilling On Ring Workpieces.
Jinan FAST CNC Horizontal Drilling Machine Model HZ900 For Drilling On Ring Workpieces.
Jinan FAST CNC Horizontal Drilling Machine Model HZ900 For Drilling On Ring Workpieces.
Jinan FAST CNC Horizontal Drilling Machine Model HZ900 For Drilling On Ring Workpieces.
Jinan FAST CNC Horizontal Drilling Machine Model HZ900 For Drilling On Ring Workpieces.
Specifications
Brand Name :
FAST
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 set
Payment Terms :
L/C, T/T,
Supply Ability :
300sets/year
Delivery Time :
40~60 days
Packaging Details :
Film；plywood wooden cases
Model Number :
HZ900
Price :
USD 10000~20000/set
Condition :
New
CNC or Not :
CNC
Voltage :
380V
Min. Order :
1 Set
Port :
Qingdao Port
Max. Drilling Diameter (mm) :
φ30
Morse Taper :
Morse #3
Infeeding Length(mm) :
320
Rotation Speed of Spindle (rpm) :
100~760
Processing Position Accuracy :
Circular Direction: ±30
Description

Jinan FAST CNC Horizontal Drilling Machine Model HZ900 For Drilling On Ring Workpieces

APPLICATION
The machine is used for drilling on ring workpieces.

FEATURES

  • This machine has central chucks on work table in horizon position. The chuck has four claws fixed manually.
  • Servomotor.
  • CNC controlling system.
  • Cooling liquid automatic circulation.
  • Only inputting the dimension of the workpiece. It can be used repeatedly.


TECHNICAL DATA

Model HZ900


Workpiece Dimension (mm)

 Inner Diameter: φ280~φ880
Outer Diameter: φ300~φ900
Height: ≤400
Max. Drilling Diameter (mm) φ30
Morse Taper Morse #3
Infeeding Length(mm) 320
Rotation Speed of Spindle (rpm) 100~760
Drilling Speed (mm/min) 30~160
Frequency Converter Stepless Speed Adjustable.
Spindle Power (kW) 3
Infeeding Servo Motor Power (kW) 1.5
Rotation Servo Motor Power (kW) 1.5
Processing Position Accuracy Circular Direction: ±30


★ All of these models can be customized according to customer requirements.
