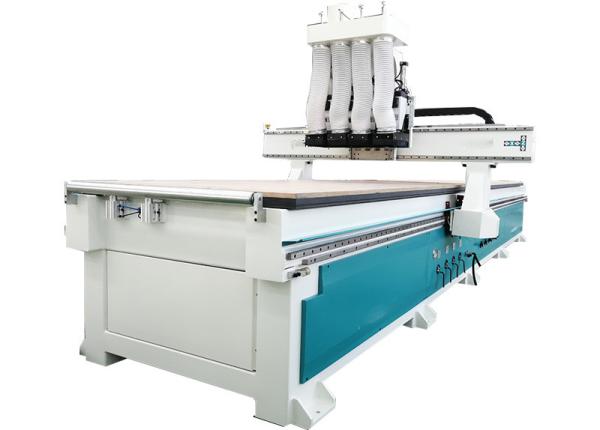

Multi Double Head 4 Spindles Automatic 3D Wood Carving Cnc Router 1325 2030 2040 1530 Cnc Nesting Machining Center
Multi Double Head 4 Spindles Automatic 3D Wood Carving Cnc Router 1325 2030 2040 1530 Cnc Nesting Machining Center
Multi Double Head 4 Spindles Automatic 3D Wood Carving Cnc Router 1325 2030 2040 1530 Cnc Nesting Machining Center
Multi Double Head 4 Spindles Automatic 3D Wood Carving Cnc Router 1325 2030 2040 1530 Cnc Nesting Machining Center
Multi Double Head 4 Spindles Automatic 3D Wood Carving Cnc Router 1325 2030 2040 1530 Cnc Nesting Machining Center
Multi Double Head 4 Spindles Automatic 3D Wood Carving Cnc Router 1325 2030 2040 1530 Cnc Nesting Machining Center
Multi Double Head 4 Spindles Automatic 3D Wood Carving Cnc Router 1325 2030 2040 1530 Cnc Nesting Machining Center
Multi Double Head 4 Spindles Automatic 3D Wood Carving Cnc Router 1325 2030 2040 1530 Cnc Nesting Machining Center
Multi Double Head 4 Spindles Automatic 3D Wood Carving Cnc Router 1325 2030 2040 1530 Cnc Nesting Machining Center
Multi Double Head 4 Spindles Automatic 3D Wood Carving Cnc Router 1325 2030 2040 1530 Cnc Nesting Machining Center
Multi Double Head 4 Spindles Automatic 3D Wood Carving Cnc Router 1325 2030 2040 1530 Cnc Nesting Machining Center
Multi Double Head 4 Spindles Automatic 3D Wood Carving Cnc Router 1325 2030 2040 1530 Cnc Nesting Machining Center
Specifications
Brand Name :
FAST
Model Number :
F2-1224-4
Certification :
ISO9001
Place of Origin :
China
MOQ :
1set
Price :
USD20000/set
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
300sets/year
Delivery Time :
30days
Packaging Details :
plywood cases
Condition :
New
Warranty :
12 Months
Port :
Qingdao Port
MOQ :
1 SET
Service :
24 hours online services
Voltage :
380V
Certificate :
ISO9001
CNC or Not :
CNC
Manufacture :
OEM ODM Acceptable
Transmission :
X/Y rack and pinion drive, Z ball screw drive
Table structure :
T-slot vacuum
Spindle power :
9.6KW
Spindle speed :
24000r/min
Controller :
SYNTEC / OSAI
Description

Multi Double Head 4 Spindles Automatic 3D Wood Carving Cnc Router 1325 2030 2040 1530 Cnc Nesting Machining Center

Multi Double Head 4 Spindles Automatic 3D Wood Carving Cnc Router 1325 2030 2040 1530 Cnc Nesting Machining Center

APPLICATIONS
Furniture Industry: Panel Furniture, Office Furniture, Wood Door, Cabinet, etc;Wood-working Industry: Musical Instrument, Kitchen Doors, Windows, etc;Suitable Material: Wood, Solid Wood, Panel, Acrylic, Plexiglass, MDF, Plastic, Copper, Aluminum, etc.

FEATURES

  • Four head machining

  • Servo drive system

  • Adopt world-class top brand components

  • Taiwan controller

TECHNICAL DATA

SERIES F2-1224-4 F2-1228-4
Travelling Size 2500*1260*200mm 2850*1260*200mm
Working Size 2440*1220*50mm 2800*1220*50mm
Table Size 2500*1232mm 2800*1228mm
Net. Weight 1000kg
Transmission X/Y Rack and Pinion Drive, Z ball screw drive
Table Structure Vacuum table
Spindle Power 6.0kW*2 +5.5kW*2
Spindle Speed 18000r/min
Traveling Speed 60m/min
Working Speed 20m/min
Driving System AC380/3PH/50HZ
Controller Taiwan

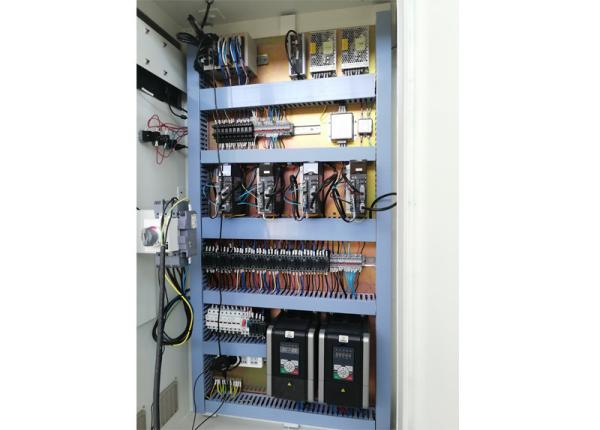

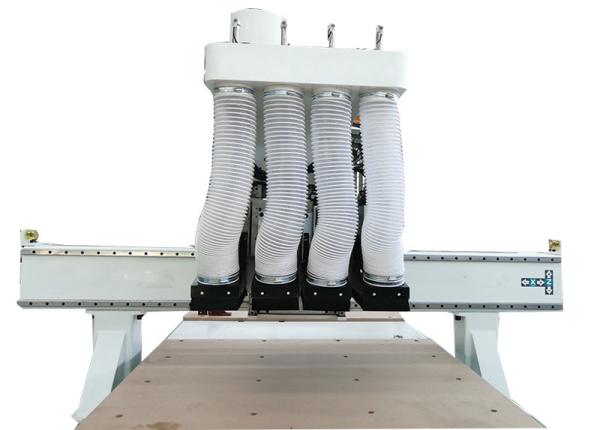

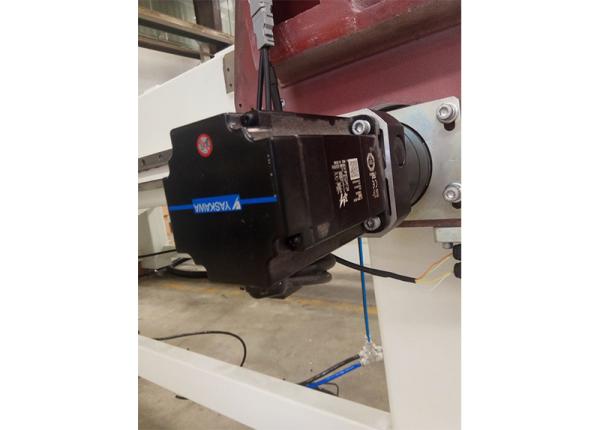

DETAIL PICTURES

Multi Double Head 4 Spindles Automatic 3D Wood Carving Cnc Router 1325 2030 2040 1530 Cnc Nesting Machining Center

Multi Double Head 4 Spindles Automatic 3D Wood Carving Cnc Router 1325 2030 2040 1530 Cnc Nesting Machining Center

Multi Double Head 4 Spindles Automatic 3D Wood Carving Cnc Router 1325 2030 2040 1530 Cnc Nesting Machining Center

Multi Double Head 4 Spindles Automatic 3D Wood Carving Cnc Router 1325 2030 2040 1530 Cnc Nesting Machining Center

Multi Double Head 4 Spindles Automatic 3D Wood Carving Cnc Router 1325 2030 2040 1530 Cnc Nesting Machining Center

Multi Double Head 4 Spindles Automatic 3D Wood Carving Cnc Router 1325 2030 2040 1530 Cnc Nesting Machining Center

Multi Double Head 4 Spindles Automatic 3D Wood Carving Cnc Router 1325 2030 2040 1530 Cnc Nesting Machining Center

Multi Double Head 4 Spindles Automatic 3D Wood Carving Cnc Router 1325 2030 2040 1530 Cnc Nesting Machining Center

Multi Double Head 4 Spindles Automatic 3D Wood Carving Cnc Router 1325 2030 2040 1530 Cnc Nesting Machining Center

Multi Double Head 4 Spindles Automatic 3D Wood Carving Cnc Router 1325 2030 2040 1530 Cnc Nesting Machining Center

Multi Double Head 4 Spindles Automatic 3D Wood Carving Cnc Router 1325 2030 2040 1530 Cnc Nesting Machining Center

Multi Double Head 4 Spindles Automatic 3D Wood Carving Cnc Router 1325 2030 2040 1530 Cnc Nesting Machining Center

Multi Double Head 4 Spindles Automatic 3D Wood Carving Cnc Router 1325 2030 2040 1530 Cnc Nesting Machining Center
