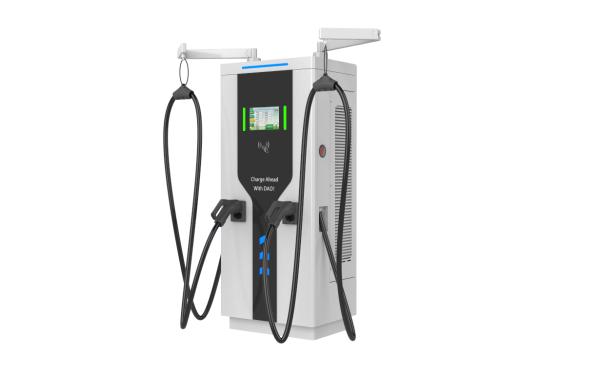

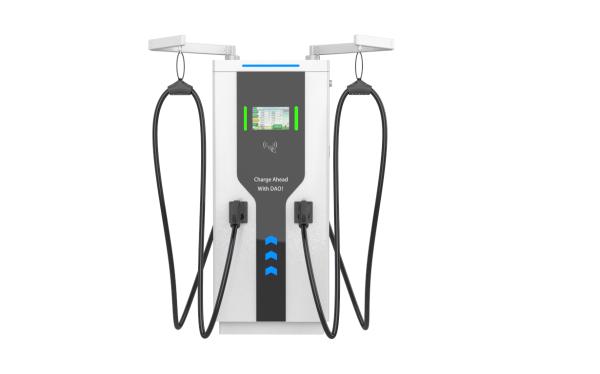

Smart 120kW DC Charging Pile | For Commercial E-Vans | Touch Control & Cable Winder System

Quick Detail:

· Max Power 120kW-Double Guns

· CCS2/CCS1/CHAdemo/GBT Standard(Optional)

· Residential/Home use /Commercial Use(Optional)

· RFID/WIFI/4G/Internet

· 10.0 Inch Touch Screen

· 5M Charging Cable

· OCPP1.6J/OCPP2.0J(Optional)

Description:

The 120kW / 160/180 kW DC charger is used for electric vehicle’s fast charging, composed of a 10-inch touch screen, 2 charging guns (CCS2/CHAdemo/GBT/CCS1) and 20kW/30kW/40kW charging modules. It could be operation by RFID card/OCPP Platform. The RFID card is an function to start and stop the charging so as to prevent the theft of electricity by others.The LED indicator on the front panel helps you understand what is happening with the charger by indicating different colors. Using well-known brand UUG power module, Flexible distribution of charging power,the charger design is highly integrated and compact, with protection grade up to IP54, the excellent capacity of water and rust proof, assuring the safe outdoor operation and maintenance. Designed according to Electric Vehicle Charging System Standard EN/IEC 61851-1-2019 and EN/IEC 61851-23:2014.

Datasheet

Notices:

Keep the explosive or flammable materials, chemicals, vapors and other hazard objects away from the charger.

Keep the charging socket clean and dry. If dirty, please wipe with clean dry cloth. Touch the socket core is strictly forbidden when power on.

Do not use the charger in case the device has defects, crack, abrasion, bare leakage and so on. Please contact the working staff in case of above conditions.

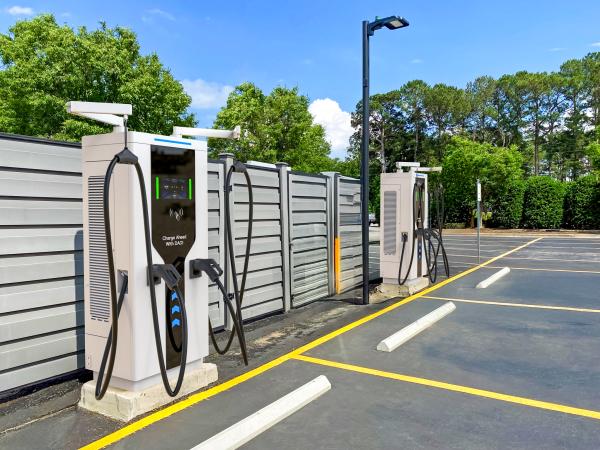

Applications:

The 120kW /160kW 180kW DC fast-charging station, tailored for commercial operations, stands out with its exceptional high power, enabling rapid charging in just 30-40 minutes across a wide range of applications. From hospitals and hotels to shopping malls, cargo distribution centers, expressway fast-charging stations, and electric truck refueling, its extensive versatility underscores its capacity to meet diverse charging demands efficiently.
