Specifications
Brand Name :
farmrob
Model Number :
H type layer cage
Certification :
ISO9001, CE
Place of Origin :
China
MOQ :
200 sets
Price :
USD 65-200/set
Payment Terms :
L/C,T/T
Supply Ability :
50000 sets per month
Delivery Time :
60 days
Packaging Details :
Normal export packing 20ft / 40HQ container
Service Life :
Over 15 years
Story Height :
700 mm
Tiers :
3-12
Characteristics :
Automatic Drinking System, Automatic Feeding System, Automatic Ventilation And Cooling System, Automatic Manure Removal System, Automatic Egg Collection System
services :
Maintenance, Debugging, Technical Trainning, Installation Guidance
Description

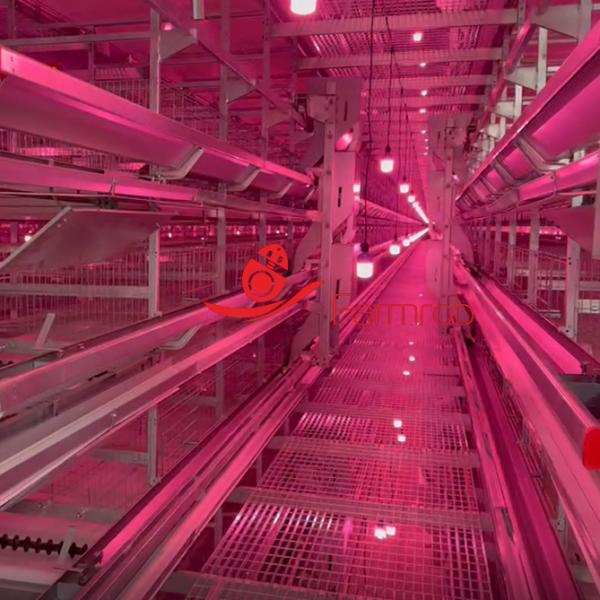

Efficient Design Layer Chicken Cage System 275g/m² Zinc


Cage Farm

The layer cage


(1) Cage frame: acts as the structural support of the cage body, consisting of a beam, beam


hook and buckle, other support. For 8 layers and below, the middle support is processed by bending


the entire piece. For more than eight layers, processed in two sections.The size of middle support is


40mm*30mm*40mm, thickness: 1.8/2.0/2.5. Material is 440 Mg-Al-Zn alloy, zinc layer thickness:


275g/m², (Al l0%, Mg 3%). The head and tail supports are 40mm*30mm* 2.0 mm rectangular tubes.


The big head support 60mm*40mm* 2.0mm rectangular tubes. The tail stand supports are


40mm*20mm* 2.0mm rectangular tubes, which are welded and then hot-dipped in zinc.


(2) Cage body: The chicken cage is made from Q235 Al-Zn alloy wire processed by straightening,


welding, and assembling. It includes the top net, bottom net, front net, back net, and cage door. The


top net can have more dense grids. The cage bottom net has a slope of 7.5°. Cage specifications


generally feature a height of 45 cm and a depth of about 65 cm, accommodating 9 chickens per cell.


Multi-layer coops can promote the health of chickens


Healthy chickens consistently demonstrate higher productivity compared to those raised in less


favorable conditions, and the use of enrichment cages can further enhance their egg-laying potential


and period. Our simple structure of the cage design allows for easy and thorough cleaning and


disinfection, effectively minimizing parasitic infestations (such as mites) and bacterial infections.


Additionally, sick birds can be promptly identified and isolated within the cage system, preventing the


spread of disease throughout the flock. The design also ensures that manure does not accumulate


on the bottom net, while eggs remain separated from waste, significantly reducing the risk of


contamination by Salmonella and other harmful bacteria.


Why Choose Us?


Farmrob has more than 20 years of poultry farming experience and mature system.


1. Top 1 layer equipment supplier and manufacturer in China


2.Customized construction and project design and engineering solutions


3.Reasonable and cost-effective quotation


4.Chicken-oriented and animal-friendly equipment


5.Advanced technical equipment with 25-year lifespan


6.Provide installation and technical guidance


7.Training for farmers on how to properly care for the birds and use and maintain the equipment
