Specifications
Place of Origin :
Fujian
Cooling Pad Models :
7090/ 5090
Exhaust Fan Power :
180W--1,100W
Airflow Capacity :
2,500-44,500cbm/h
Pad Material Options :
Resin-Impregnated Kraft Paper / Heavy-Duty Plastic
Cooling Efficiency :
80% - 85% Evaporative Efficiency Rate
Brand Name :
IGreen
System Type :
Negative Pressure Evaporative Cooling
Frame Materials :
Aluminum Alloy Frame
Description
Evaporative Wet Pad & Fan Cooling System For Greenhouse & Poultry House
What is a Wet Pad & Fan Cooling System?
A Wet Pad & Fan Cooling System (also known as an evaporative cooling system) is a highly efficient, large-scale climate control solution designed for agricultural and industrial environments. It consists of two main components: heavy-duty industrial exhaust fans installed on one side of the building, and porous evaporative cooling pads installed on the opposite wall. This integrated system provides continuous air exchange and rapid temperature drops, making it the industry standard for cooling large, open spaces where traditional air conditioning is too expensive to operate.
Evaporative Wet Pad & Fan Cooling System For Greenhouse & Poultry House

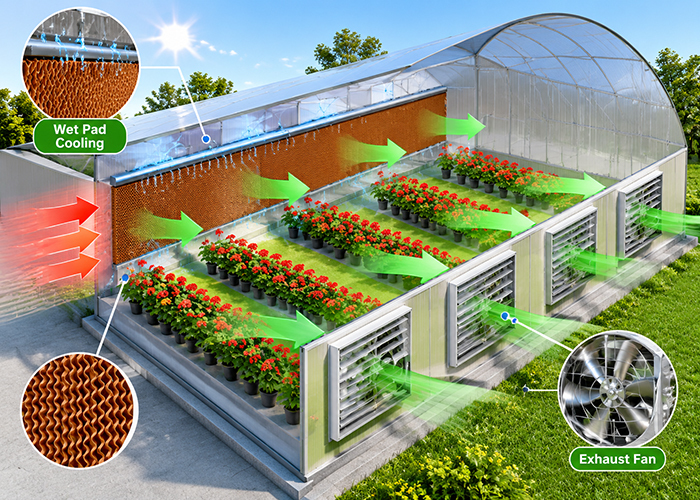

Working Principle
The system utilizes the natural physical phenomenon of water evaporation to absorb heat, operating on a negative pressure principle:
  • Air Exhaust & Negative Pressure: The powerful industrial exhaust fans pull hot, stale, and humid air out of the building. This creates a negative pressure zone (vacuum effect) inside the structure.
Evaporative Wet Pad & Fan Cooling System For Greenhouse & Poultry House
  • Outdoor Air Intake: Because of the internal negative pressure, hot and dry outdoor air is forced to enter the building through the wet cooling pads on the opposite wall.
  • Evaporative Cooling: As the hot air passes through the constantly wetted pad media, the water evaporates, instantly absorbing the sensible heat from the air.
Evaporative Wet Pad & Fan Cooling System For Greenhouse & Poultry House
  • Cool Air Distribution: Fresh, filtered, and significantly cooler air is continuously drawn into the facility, lowering the internal temperature evenly.
Technical Specifications
Parameter Specification Details
Cooling Pad Models 7090 Type / 5090 Type
Pad Material Options Premium Kraft Paper (Cellulose) / Durable Plastic
Frame Materials Aluminum Alloy Frame
Exhaust Fan Airflow 2,500-44,500 cbm/h
Exhaust Fan Power 180W - 1,100W
Cooling Efficiency Up to 80% - 85% Evaporative Efficiency
Pad Thickness Options 100mm / 150mm

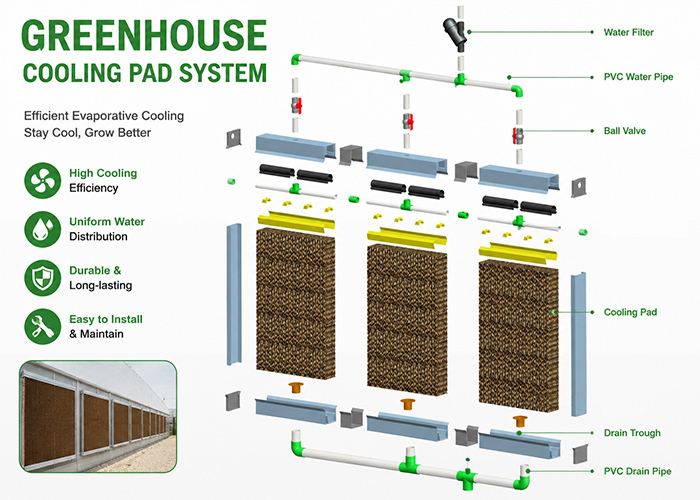

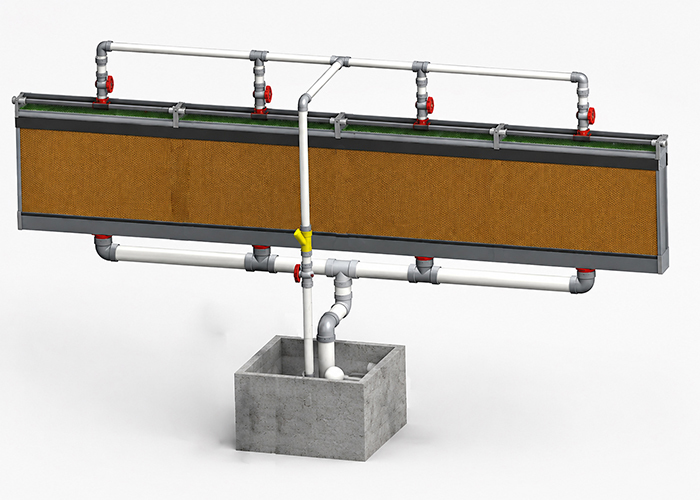

Water Distribution Uniform PVC pipe system with submersible water pump
System Benefits & Advantages
  • Maximum Energy Savings: Consumes up to 80% less electricity than compressor-based HVAC systems because it only powers a simple water pump and exhaust fans.
  • Eco-Friendly Operation: Uses zero chemical refrigerants or harmful gases. It cools purely through natural water evaporation, making it safe for crops, livestock, and workers.
Evaporative Wet Pad & Fan Cooling System For Greenhouse & Poultry House
  • Rapid Temperature Reduction: Highly effective in hot, dry climates, capable of dropping internal temperatures by 5°C to 15°C depending on ambient humidity.
  • Improved Air Quality: Continuously flushes out dust, odors, and stale air, replacing it with fresh, filtered, and oxygen-rich outdoor air.
  • Low Maintenance Costs: Simple structural design means fewer mechanical parts to break, lowering long-term repair and replacement costs.
Target Application Areas
  • Commercial Greenhouses: Maintains the ideal microclimate for high-value agriculture, floriculture, and hydroponics. It prevents heat wilting and stabilizes plant growth cycles.

Evaporative Wet Pad & Fan Cooling System For Greenhouse & Poultry House

  • Poultry & Livestock Farms: Vital for poultry houses, chicken coops, and pig barns. It prevents catastrophic heat stress, lowers animal mortality rates, and boosts production yields.
  • Industrial Workshops & Warehouses: Provides cost-effective cooling and ventilation for large manufacturing facilities, logistics hubs, and garment factories.

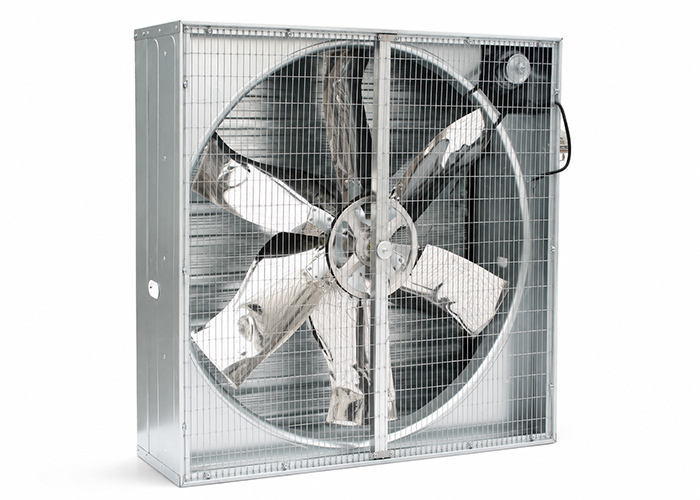

Types of Exhaust Fan
Model Fan Blade Speed (r/min) Air Flow Rate (m³/h) Noise (dB) Power (kW) Overall Dimension (mm) LHT
Model 380 1400 1800 66 0.2 380*380*320
Model 480 1400 4300 66 0.2 480*480*320
Model 580 1400 5600 68 0.25 580*580*320
Model 680 1400 8600 70 0.25 680*680*320
Model 740 450 10000 60 0.3 740*740*350
Model 800 450 15000 60 0.37/0.3 800*800*350
Model 900 450 27000 60 0.37 900*900*350
Model 1060 450 32000 63 0.55 1060*1060*350
Model 1220 450 37000 65 0.75 1220*1220*350
Model 1380 450 45000 68 1.1 1380*1380*350
Model 1530 350 49000 70 1.5 1530*1530*400
Notes: The fan casing is available in two materials: hot-dip galvanized steel and stainless steel. Voltage and frequency can be customized.
Types of Evaporative Cooling Pads
Categorized by Material
  • Kraft Paper Cooling Pads (Cellulose): Made from premium imported wood pulp kraft paper treated with resin. They offer exceptional water absorption, cross-fluted structure for maximum evaporation surface, and the highest overall cooling efficiency.
Evaporative Wet Pad & Fan Cooling System For Greenhouse & Poultry HouseEvaporative Wet Pad & Fan Cooling System For Greenhouse & Poultry House

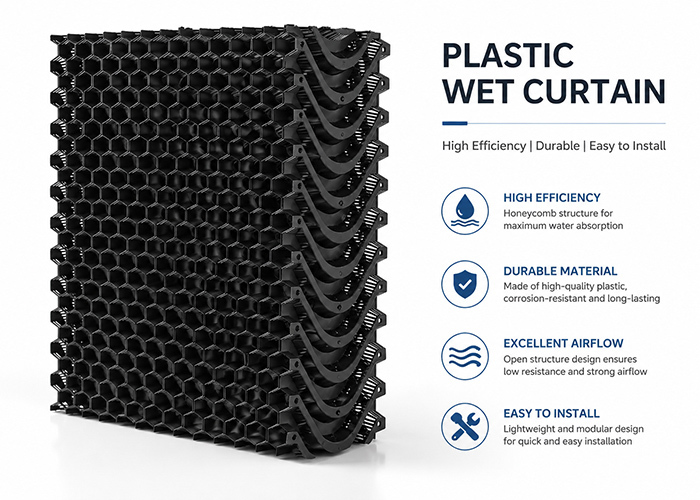

  • Plastic Cooling Pads: Made from high-quality polymer plastics. They feature an exceptionally long operational lifespan, high resistance to algae growth, and are highly corrosion-resistant. They can be easily washed and pressure-cleaned, making them ideal for harsh environments.
Evaporative Wet Pad & Fan Cooling System For Greenhouse & Poultry House

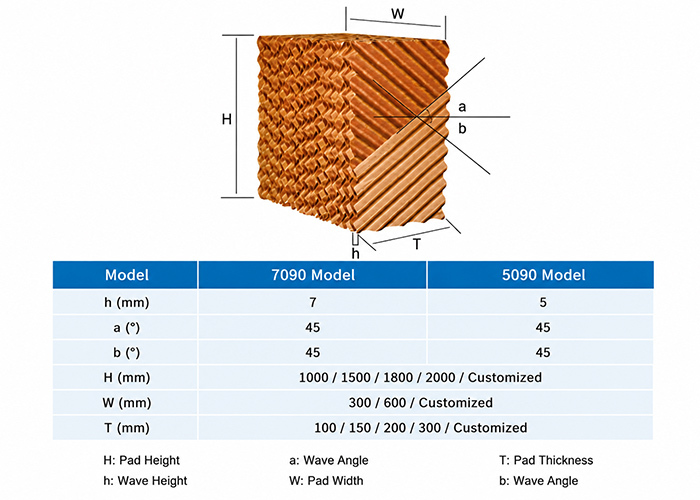

Categorized by Flute Height (Wave Height)
  • 7090 Type (7mm Flute Height): The most popular and widely used standard model. The 7090 configuration provides the perfect balance between airflow resistance and water-to-air contact area, delivering highly stable cooling performance for most agricultural applications.
  • 5090 Type (5mm Flute Height): Features a denser wave structure with a 5mm flute height, which significantly increases the total evaporation surface area. It delivers maximum cooling efficiency in space-restricted setups or specialized industrial climate control systems.
