Automatic Self-Propelled Boom Sprinkler Irrigation Machine for Greenhouse
Automatic Self-Propelled Boom Sprinkler Irrigation Machine for Greenhouse
Automatic Self-Propelled Boom Sprinkler Irrigation Machine for Greenhouse
Automatic Self-Propelled Boom Sprinkler Irrigation Machine for Greenhouse
Automatic Self-Propelled Boom Sprinkler Irrigation Machine for Greenhouse
Automatic Self-Propelled Boom Sprinkler Irrigation Machine for Greenhouse
Automatic Self-Propelled Boom Sprinkler Irrigation Machine for Greenhouse
Automatic Self-Propelled Boom Sprinkler Irrigation Machine for Greenhouse
Specifications
Coverage Area :
Max 11m boom length & 60m travel
Application Scope :
Greenhouse irrigation & plant nurseries
Uniformity Rate :
Over 95% uniform mist distribution
Mounting Type :
Overhead suspended rail-mounted
Brand Name :
IGreen
Place of Origin :
Fujian
Nozzle Type :
3-position anti-drip quick-convert
Control System :
Smart PLC & VFD speed control
Functions :
3-in-1 watering, fertilizing & spraying
Description
Automatic Self-Propelled Boom Sprinkler Irrigation Machine for Greenhouse

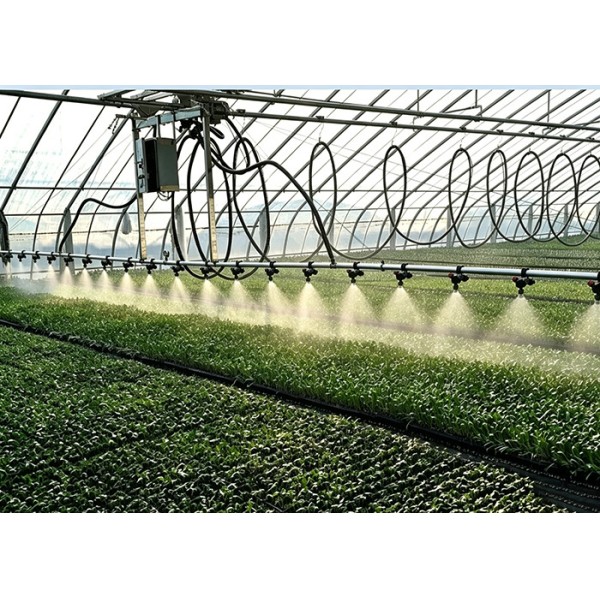

The Automatic Self-Propelled Boom Sprinkler Irrigation Machine is a precision-engineered, high-efficiency mobile irrigation solution specifically designed for modern commercial greenhouses and plant nurseries. Suspended from an overhead rail network, this automated system traverses fixed tracks to deliver highly uniform watering, precise fertilization, and targeted chemical spraying without taking up valuable ground space.

Automatic Self-Propelled Boom Sprinkler Irrigation Machine for Greenhouse

Driven by advanced programmable logic controllers (PLC) and variable frequency drives (VFD), the system grants growers absolute control over travel speed, water pressure, and flow rates. It eliminates human error by scheduling fixed-time, fixed-quantity, and fixed-point uniform misting, ensuring stable crop growth from seedling to harvest.
Technical Specifications
Flow Rate (at 3 kgf/cm²) 0.28 L/min / 1.65 L/min / 2.46 L/min
Maximum Boom Length Max 11 m
Maximum Travel Distance Max 60 m
Running Speed Range 4 to 16.5 m/min
Inlet Water Pressure 2 to 5 kgf/cm²
Nozzle Configuration 3-position anti-drip quick-convert nozzles
Spray Angle & Opening Pressure 80°-110° / Opening pressure: 1.5 kgf/cm²
Nozzle-to-Crop Clearance 400 mm
Water Quality Requirement Municipal tap water quality
Motor Power & Power Supply 250 W / 220 V / Single Phase / 50 Hz
Dimensions (L × W × H) 900 mm × 900 mm × 385 mm
Total Machine Weight Approx. 70 kg
Automatic Self-Propelled Boom Sprinkler Irrigation Machine for Greenhouse
Structure & Advanced Working Principle
The automated boom sprinkler consists of four high-performance sub-systems:
  • Drive & Traversal Mechanism: Comprising an electric motor, reduction gearboxes, heavy-duty travel wheels, and an overhead rail system to ensure ultra-smooth, constant-velocity motion.
  • Smart Control Array: Anchored by a central PLC that handles customized configurations for speeds, runtime intervals, and zone management, paired with end-of-track safety sensors.
  • Fluid Dynamics System: Built with professional-grade pumps, anti-corrosion pipelines, and rapid-switch tri-nozzle assemblies to sustain consistent working pressures.
  • Dedicated Power Feed: Uses specialized industrial cabling and a reliable tracking support structure to guarantee uninterrupted power delivery throughout long-distance runs.

Automatic Self-Propelled Boom Sprinkler Irrigation Machine for Greenhouse

Core Advantages & Benefits
95%+ Perfect Spray Uniformity

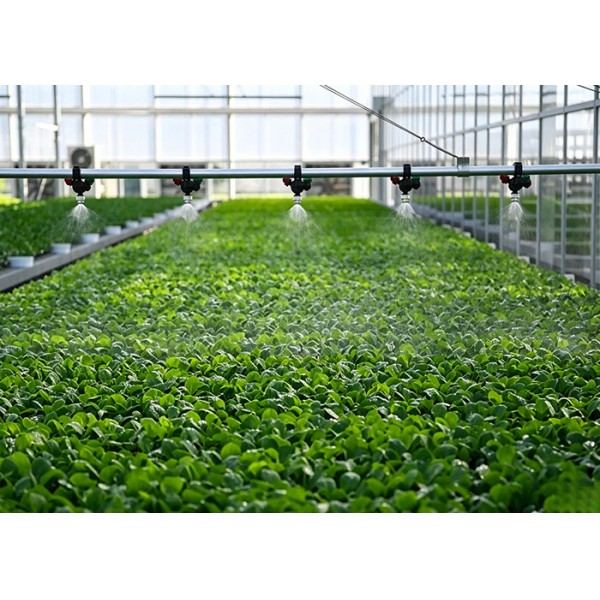

Engineered with a stable VFD traveling mechanism and precise anti-drip nozzles, the boom sprinkler delivers a fine, uniform mist. With a distribution uniformity exceeding 95%, it thoroughly prevents localized dry spots or over-saturation.
Fully Automated, Unattended Operation
Equipped with an intelligent PLC system, industrial limit switches, and position sensors, the irrigation machine operates autonomously. It triggers auto-reverse or automatic stop sequences at track ends, allowing for 24/7 unattended smart farming.
3-in-1 Versatile Performance
This is not just a watering boom. It seamlessly integrates overhead irrigation, fertilization, and crop protection spraying into a single mobile asset, drastically lowering equipment capital expenditure.
20%-30% Water & Energy Savings
Compared to traditional overhead impact sprinklers or manual hose watering, the precision atomization reduces water runoff and evaporation losses by 20% to 30%, optimizing resource usage.
Overhead Space-Saving Design

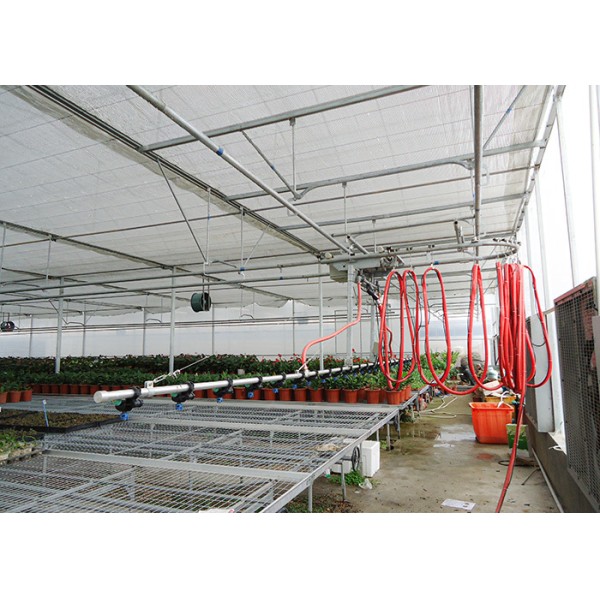

The suspended track installation elevates the entire unit above the canopy. It leaves 100% of the greenhouse floor unobstructed, keeping paths clear for automated ground machinery, harvest carts, and staff.
Delicate Crop & Seedling Protection
The fine-droplet spray technology delivers a soft mist that won't damage fragile young seedlings, dislodge delicate flower petals, or compact the growing medium.

Automatic Self-Propelled Boom Sprinkler Irrigation Machine for Greenhouse

Primary Applications & Industries
  • Commercial Greenhouse Nurseries: Ideal for high-density vegetable seedlings, plug production, and rooting cuttings that require delicate, hyper-precise micro-climates.
  • Floriculture & Flower Cultivation: Provides gentle moisture distribution for premium cut flowers and potted plants sensitive to heavy water impact.
  • Soilless Culture & Hydroponic Facilities: Delivers perfectly dosed liquid nutrients across large-scale bench systems.
  • Agricultural Research Stations: Enables researchers to conduct highly controlled watering and crop treatment trials via fixed parameter configurations.
