Specifications
Model Number :
Smart greenhouse controller
Control Technology :
PLC Programmable Logic Controller + IoT Cloud Management
Payment Terms :
L/C,T/T,Western Union
Connected Equipment Control :
Ventilation, Shading, Cooling, Heating, Irrigation, Fertigation, Lighting and CO₂ Systems
MOQ :
1set
Environmental Monitoring Parameters :
Temperature, Humidity, Light Intensity, CO₂, Wind Speed, Wind Direction, Rain/Snow Status
Automation Level :
Automatic Climate Control & Unattended Greenhouse Operation
Certification :
ISO
Communication Method :
WiFi + 4G Wireless Connectivity
Packaging Details :
Packed by carton
Remote Management :
PC Web Platform + Mobile Remote Monitoring & Control
Protection Rating :
IP54 Outdoor Waterproof Control Cabinet with Surge & Overload Protection
Brand Name :
IGREEN
Product Type :
Smart Greenhouse Control System / IoT Greenhouse Automation System
Operating Mode :
Manual Mode / Automatic Mode / Cloud Remote Mode
Place of Origin :
China
Control Interface :

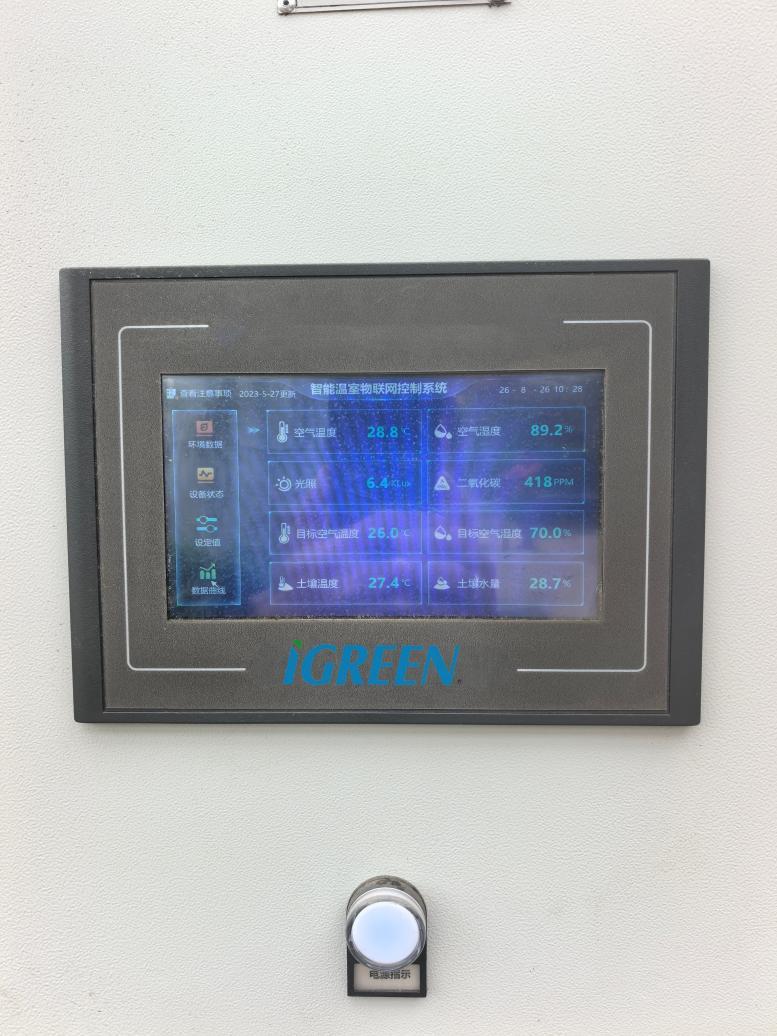

7-inch Industrial Color Touchscreen HMI (10-inch Optional)
Description
IoT Smart Greenhouse Automation System | PLC-Based Climate Control & Remote Monitoring Solution

Product Overview

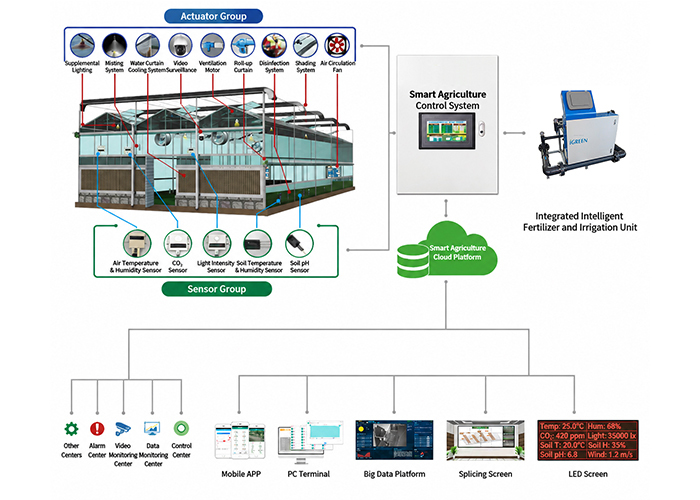

The Smart Greenhouse Control System is an integrated IoT management and control solution purpose-built for modern agricultural greenhouses. It integrates three core modules: comprehensive environmental sensing, intelligent control of all equipment, and cloud-based remote management.
IoT Smart Greenhouse Automation System | PLC-Based Climate Control & Remote Monitoring Solution
The system provides unified automatic control over the full range of greenhouse production systems, including ventilation and environmental control, shading and thermal insulation, cooling and humidification, heating and supplemental lighting, irrigation and fertigation, and atmosphere regulation.
IoT Smart Greenhouse Automation System | PLC-Based Climate Control & Remote Monitoring Solution
The system continuously acquires and monitors multi-dimensional environmental data both inside and outside the greenhouse—temperature, humidity, light intensity, CO₂ concentration, wind speed, and rain/snow status—and drives equipment to operate in intelligent, demand-based coordination.
Core System Components

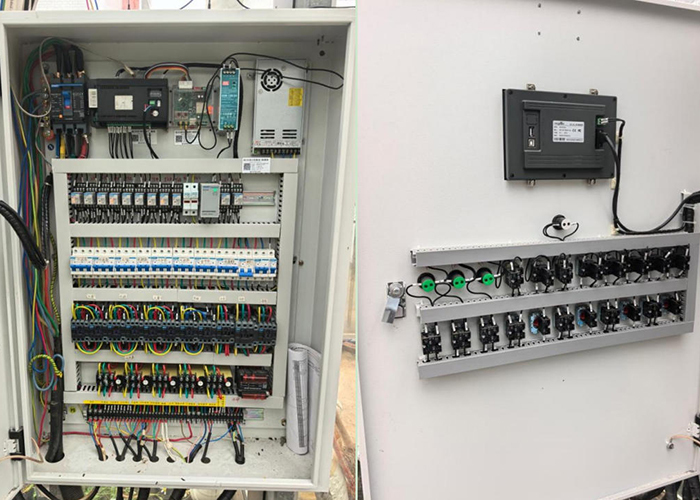

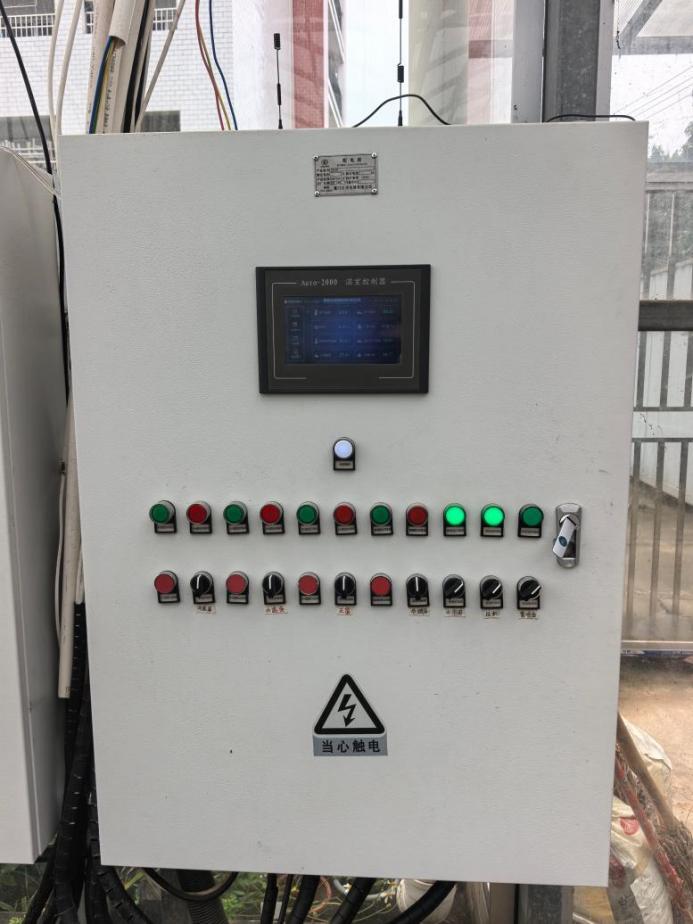

Smart Cloud Control Distribution Box (Main Control Unit)
The intelligent control hub constructed from outdoor-grade rainproof cold-rolled steel with IP54 protection rating, ensuring stable operation under complex outdoor conditions.
IoT Smart Greenhouse Automation System | PLC-Based Climate Control & Remote Monitoring Solution IoT Smart Greenhouse Automation System | PLC-Based Climate Control & Remote Monitoring Solution
Full-scope equipment access and control: Covers all greenhouse electromechanical equipment with customizable control logic.
  • Ventilation & Environmental Control: Roof/side roll-up vent windows, continuous roof vents, circulation fans, and axial exhaust fans
  • Shading & Thermal Insulation: External shade net system, internal shade system, internal thermal screen
  • Cooling & Humidification: Evaporative cooling pad-fan system, high-pressure misting cooling system
  • Heating System: Water-source heat pump, boiler heating, hot-air furnace heating
  • Irrigation & Fertigation: Drip irrigation system, sprinkler irrigation system, integrated fertigation machine
  • Supplemental Lighting: LED plant growth supplemental lights, high-pressure sodium supplemental lighting
  • Atmosphere Regulation: CO₂ generator, CO₂ supply solenoid valve
  • Auxiliary Systems: Greenhouse electric rolling doors, sliding doors, dehumidifiers
Dual travel protection mechanism: Mechanical limit switches and PLC software soft-limit dual over-travel protection.
Comprehensive electrical safety protection: Emergency stop button, surge and lightning protection, thermal overload protection.

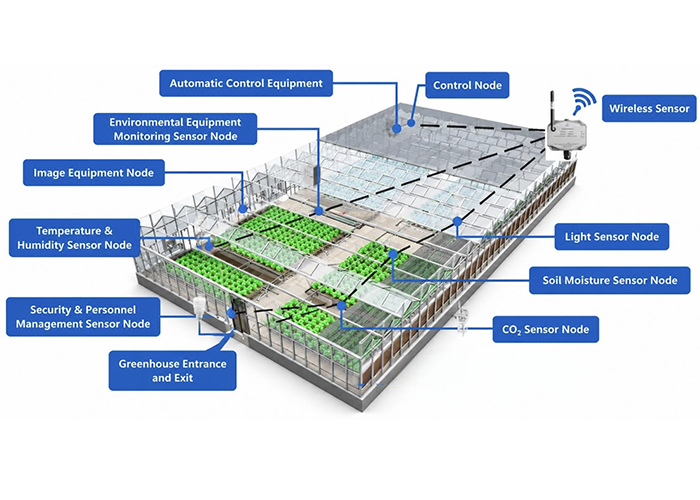

Environmental Sensing System
Provides comprehensive data for intelligent control, enabling automatic linkage between environmental parameters and equipment operation.

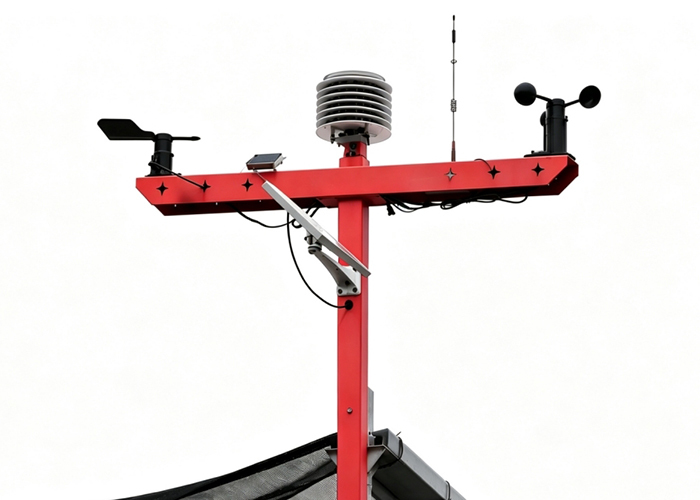

Outdoor Weather Station: Continuously acquires outdoor temperature, air humidity, light intensity, wind speed, wind direction, and rain/snow status.
IoT Smart Greenhouse Automation System | PLC-Based Climate Control & Remote Monitoring Solution

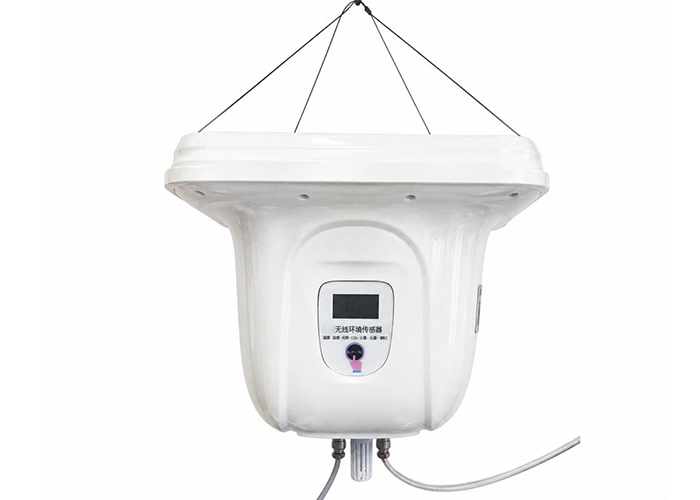

Indoor Wireless Multi-Parameter Sensor: Collects core growth-environment data including indoor temperature, air humidity, light intensity, CO₂ concentration, soil moisture, and soil temperature.
IoT Smart Greenhouse Automation System | PLC-Based Climate Control & Remote Monitoring Solution
IoT Cloud Management Platform
Supports multi-terminal, cross-space remote management with 3-year free basic function usage period.

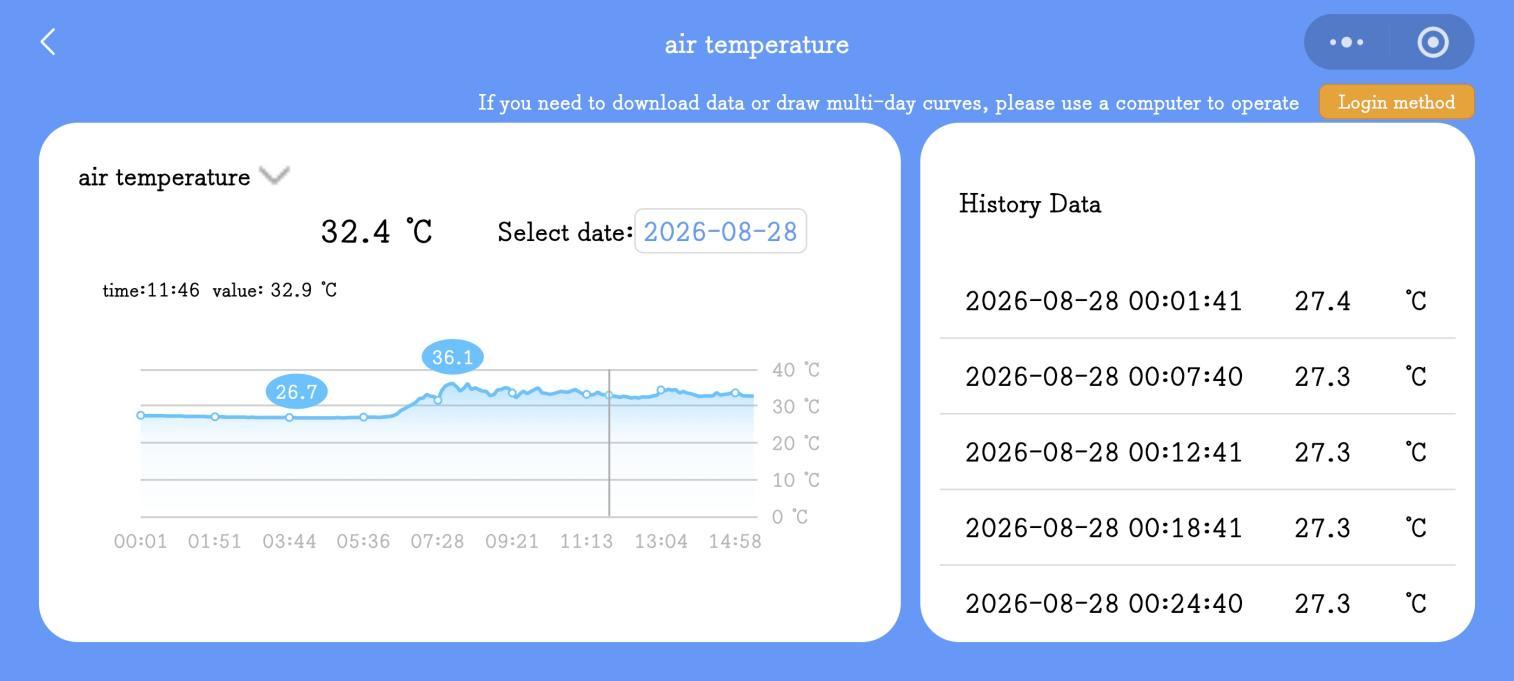

PC Web: Visual display of real-time greenhouse environmental data, historical data trend curves, data statistics report export, remote equipment control.
IoT Smart Greenhouse Automation System | PLC-Based Climate Control & Remote Monitoring Solution

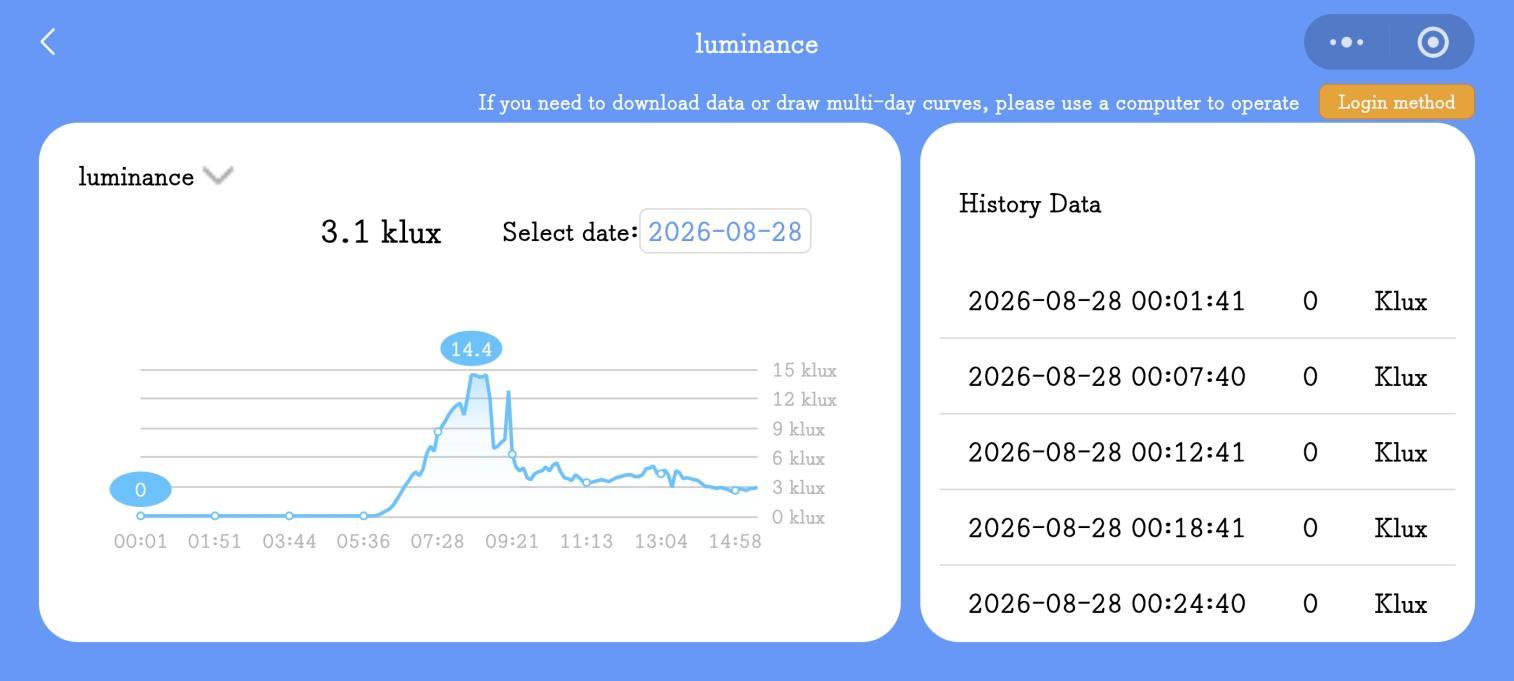

Mobile Device: Convenient mobile access to real-time greenhouse environmental data and historical trend curves.
IoT Smart Greenhouse Automation System | PLC-Based Climate Control & Remote Monitoring Solution IoT Smart Greenhouse Automation System | PLC-Based Climate Control & Remote Monitoring Solution
Connectivity: Supports dual-mode WiFi and 4G connectivity (4G data SIM card to be provided by the user).
Core Functional Features
Three Control Modes with Flexible Switching
  • Manual Mode: Local operation via cabinet touchscreen or physical buttons
  • Automatic Mode: Configurable scheduled operation strategies with environmental data linkage
  • Cloud Remote Mode: Internet-based remote monitoring and control from PC or mobile devices
IoT Smart Greenhouse Automation System | PLC-Based Climate Control & Remote Monitoring Solution

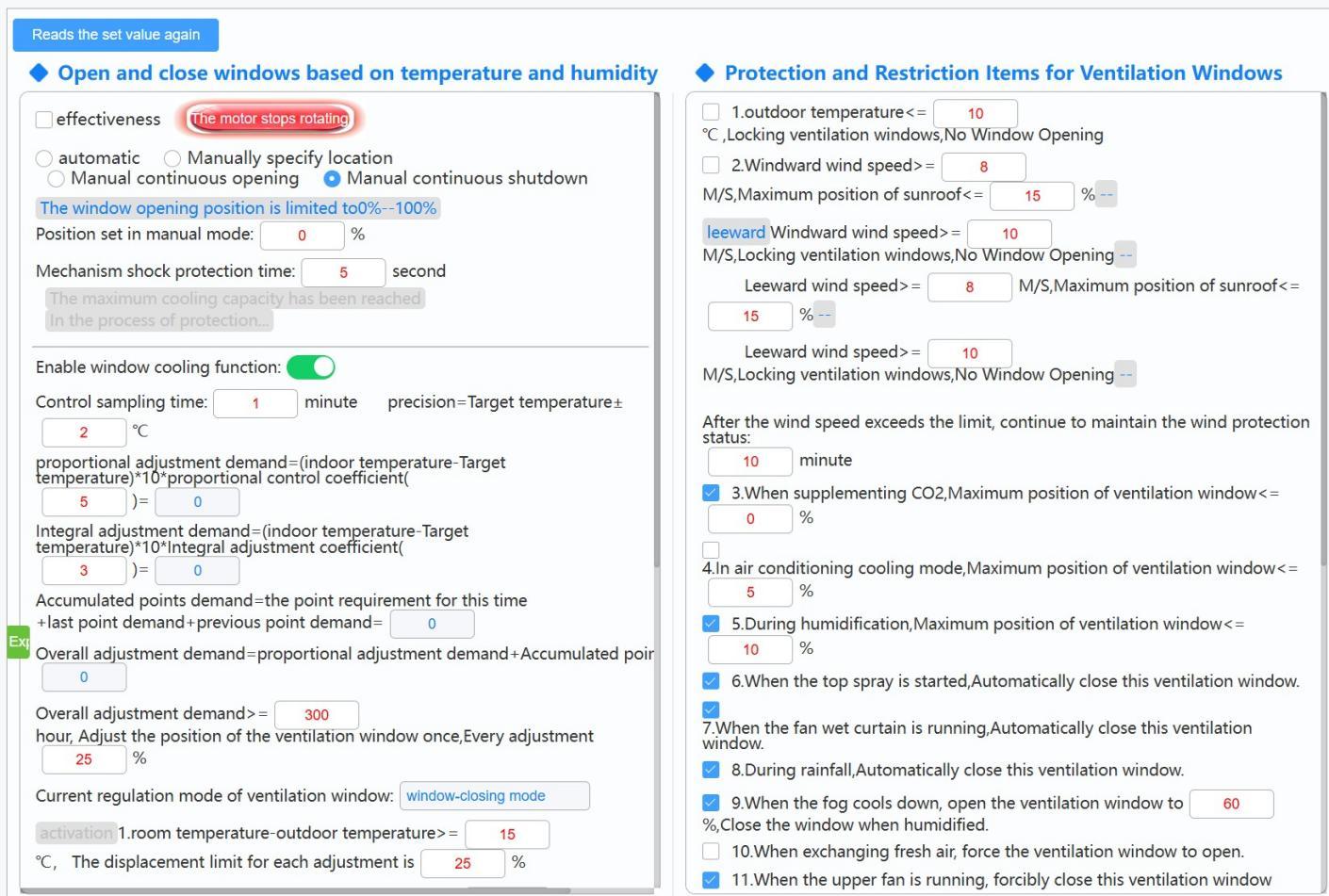

Multi-Scenario Automatic Linkage Logic
  • Excessive Wind Speed: Automatically retracts shading system and closes ventilation side windows
  • Rainfall Detection: Automatically closes roof and side windows to prevent rainwater entry
  • Light Regulation: Automatically opens/closes shading system based on outdoor light intensity
  • Temperature & Humidity Linkage: Automatically adjusts ventilation to maintain optimal crop conditions
Comprehensive Safety Protection Mechanism
  • Thermal overload protection for each motor circuit
  • Dual protection of mechanical limit switches + PLC soft limits
  • Emergency stop button for one-touch power cutoff
  • Surge and lightning protection for outdoor operation
Technical Specifications
Category Specification
Main Control Unit PLC programmable logic controller
Enclosure IP54 outdoor rainproof cold-rolled steel cabinet
HMI 7-inch (10-inch optional) color industrial touchscreen with customized greenhouse control system software
Control Capacity Supports multi-channel motor forward/reverse control; compatible with synchronized / independent control modes
Protection Mechanisms Thermal overload protection, dual limit protection, emergency stop protection, surge & lightning protection
Outdoor Weather Station Measured parameters: temperature, humidity, light, wind speed, wind direction, rain/snow status
Indoor Sensor Measured parameters: temperature, humidity, light, CO₂ concentration; built-in LCD display
Communication WiFi / 4G dual-mode connectivity (4G data SIM card to be provided by user)
Cloud Platform Service 3-year free basic function period; supports PC + mobile access
Application Scenarios
  • Vegetable Cultivation Greenhouses: Large-scale cultivation of leafy and fruiting vegetables
  • Edible Mushroom Cultivation Greenhouses: Mushroom and fungus cultivation with zoned independent control
  • Flower & Seedling Propagation Greenhouses: Flower and seedling propagation with precise environmental management
  • Scientific Research Greenhouses: Agricultural research and variety trials with data logging capabilities
Delivery and Service Assurance
Delivery Scope
  • Complete distribution box unit (control program pre-flashed, factory commissioning completed)
  • Outdoor weather station and indoor sensor equipment
  • Electrical schematic diagrams and accompanying technical documentation
  • Cloud platform account activation and basic configuration service
Warranty Service
  • 12-month hardware warranty for the complete unit (excluding damage caused by human factors or force majeure)
  • Platform technical support provided during the 3-year free basic cloud platform service period
  • Free remote video commissioning guidance
