Customized Perforated Foil Facing Material Acoustic Insulation 100m 300m 1000m Length
Customized Perforated Foil Facing Material Acoustic Insulation 100m 300m 1000m Length
Customized Perforated Foil Facing Material Acoustic Insulation 100m 300m 1000m Length
Customized Perforated Foil Facing Material Acoustic Insulation 100m 300m 1000m Length
Customized Perforated Foil Facing Material Acoustic Insulation 100m 300m 1000m Length
Customized Perforated Foil Facing Material Acoustic Insulation 100m 300m 1000m Length
Customized Perforated Foil Facing Material Acoustic Insulation 100m 300m 1000m Length
Customized Perforated Foil Facing Material Acoustic Insulation 100m 300m 1000m Length
Specifications
Brand Name :
FANRYN
Place of Origin :
China
MOQ :
200 rolls
Payment Terms :
T/T
Delivery Time :
15-30 work days
Packaging Details :
Plastic bags
Description

Insulation Facing

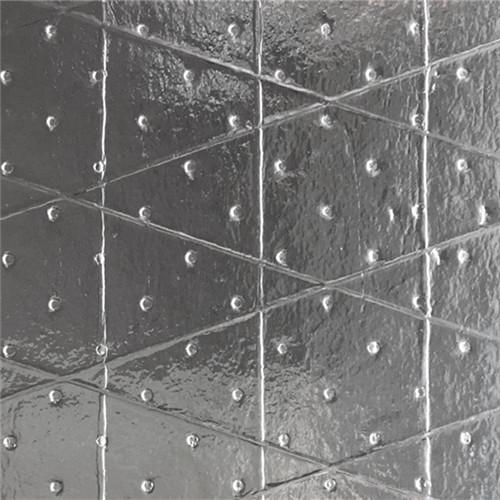

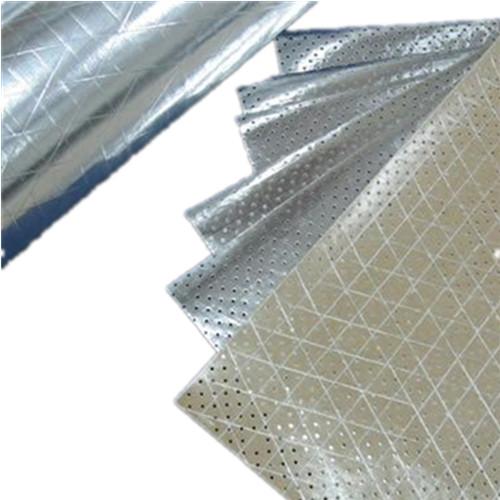

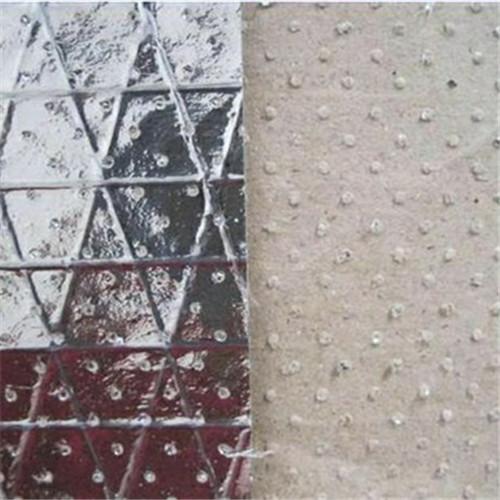

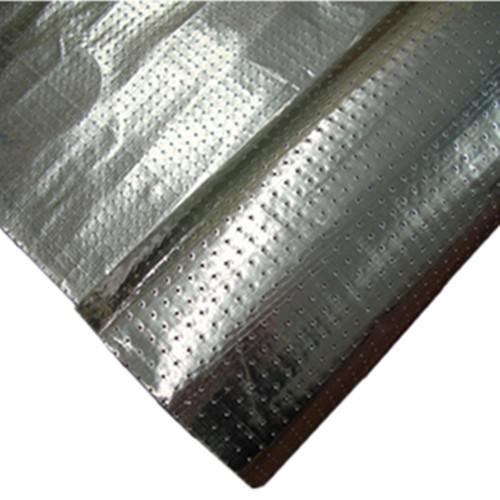

Product Introduction Of The PERFORATED FOIL FACING

Perforated foil facing is chosen when the acoustic insulation is required to be fastened to the visible underside of a concrete slab

where high acoustics are required.

Perforated foil facing is not a new invention but it is becoming very popular in building insulation. It is used to reflect heat where you

want it, just like a thermos, hot sides stay hot and cold sides stay cold. By reflecting Radiant Energy back into the home radiant barrier

insulation can significantly improve the heat loss of the insulation system.

Product Parameter Of The PERFORATED FOIL FACING

Product Construction
FSK-7160AP

Foil: 7 micron/ 3-ways scrim (8x12 threads/100mm)/ Polyethylene/ 60gsm Kraft paper

Hole diameter: 1.6mm, space between holes: 4mm
FSK-7160BP

Foil: 7 micron/ 2-ways scrim (12.5x12.5 mm)/ Polyethylene/ 60gsm Kraft paper

Hole diameter: 1.6mm, space between holes: 4mm
FSKV-7160AP

Foil: 7 micron/ 3-ways scrim (8x12 threads/100mm)/ Polyethylene/ 60gsm Kraft paper/ Polyethylene

Hole diameter: 1.6mm, space between holes: 4mm
FSKV-7160BP

Foil: 7 micron/ 2-ways scrim (12.5x12.5 mm)/ Polyethylene/ 60gsm Kraft paper/ Polyethylene

Hole diameter: 1.6mm, space between holes: 4mm
DFC-1001AP

Foil: 7 micron/ 3-ways scrim (8x12 threads/100mm)/ Polyethylene/ 60gsmKraft paper/ Polyethylene/ Foil:7micron

Hole diameter: 1.6mm, space between holes: 4mm

Product Feature And Application Of The PERFORATED FOIL FACING

The hold diameter can be customized

Kraft paper standard weight is 25gsm, 50gsm and 60gsm.

Typical width: 1.0m,1.1m,1.2m,1.25m,1.3m

Length: 100m,300m,1000m

Inner core: 76mm

Perforation through FSK series and heat sealing series and double sided reflective foil, mainly used as vapor barrier with foam insulation,

also as sarking and insulation under roofs, timber floors. And reduction noise absorption for industrial building.

Production Details Of The PERFORATED FOIL FACING
