PCB FAKRA HSD Connector 4+2 Pin Code Z Female For Automotive
PCB FAKRA HSD Connector 4+2 Pin Code Z Female For Automotive
Specifications
Brand Name :
LDS
Model Number :
LDS-HSD-06ZM
Certification :
E-Mark
Place of Origin :
China
MOQ :
20 PCS
Price :
Contact the seller
Supply Ability :
200,000 PCS/Month
Delivery Time :
7~14 work days
Packaging Details :
Carton size 29*13*11CM,20pcs per carton
Impedance :
100Ω
Frequency :
DC to 6 GHz
Insulation Resistance :
≥1000 MΩ
Test Voltage :
250 V rms
Working Voltage :
100 V rms
Power current :
≤1.5A DC
Working Temperature :
-40℃ ~ +105℃
Description

HSD 4+2 Pin Female Code Z For Automotive Power HSD PCB Connector

Description:

HSD PCB connector connectors provide connectivity solutions for automotive infotainment modules, cameras, GPS, display devices, and remote vehicles. RF High Speed Data (HSD) cable assembly is a 100Ω connection system for differential and digital data transmission. HSD connector products are designed for high speed data transmission to meet automotive data rates up to 6GHz.

Key Feature:
1. Single solution for digital transmission standards
2. Female contacts with tight entries to prevent mismatches and stubs
3. 100Ω impedance
4. Combined with the following devices
-Low Voltage Differential Signaling (LVDS)
-Gigabit Video Interface (GVIF)
-USB
-IEEE 1394
-Ethernet

5.MOQ:20 PCS

Technical Specifications:

Material
Housing PA
Center Pin Copper Alloy
Outer contact Zinc Alloy
Insulator HTN
Electrical Performance
Impedance 100 Ω
Frequency Range DC to 2 GHz
Return Loss

≥20 dB to 1 GHz
≥17 dB to 2 GHz
Insertion Loss ≤0.1 dB to 2 GH
Insulation Resistance ≥ 1000 MΩ
Center Contact Resistance ≤ 8mΩ
Test Voltage 250 V rms
Working Voltage 100 V rms
Contact Current ≤ 1.5 A DC
Mechanical Performance
Mating Cycles ≥ 25 Time
Engagement Force ≤ 30 N
Disengagement Force ≥5 N
Retention Force Latch ≥ 110 N
Temperature Range -40 °C ~ +105 °C


Product image:

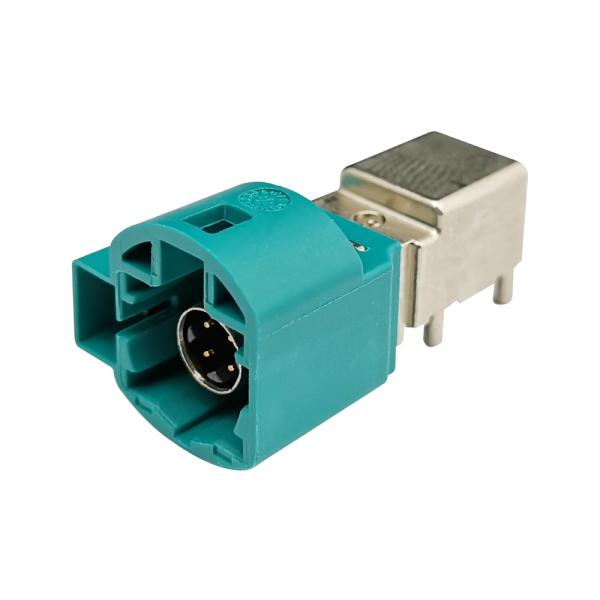

PCB FAKRA HSD Connector 4+2 Pin Code Z Female For Automotive
PCB FAKRA HSD Connector 4+2 Pin Code Z Female For Automotive

PCB FAKRA HSD Connector 4+2 Pin Code Z Female For Automotive

PCB FAKRA HSD Connector 4+2 Pin Code Z Female For Automotive

PCB FAKRA HSD Connector 4+2 Pin Code Z Female For Automotive

FAQ:

1.Q:How do I apply for samples?

A:You can contact our customer service, you only need to pay the freight, our samples are free.

2.Q:Does your factory accept customized service?

A:Yes,we accept OEM&ODM.

3.Q:What are your company's strengths?

A:We have a professional technical team to ensure quality as well as efficiency.
