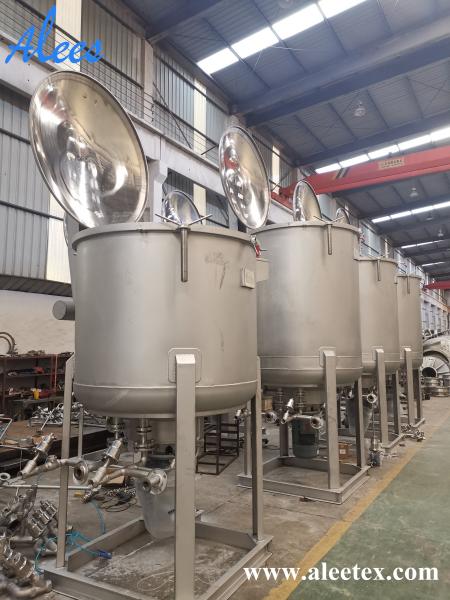

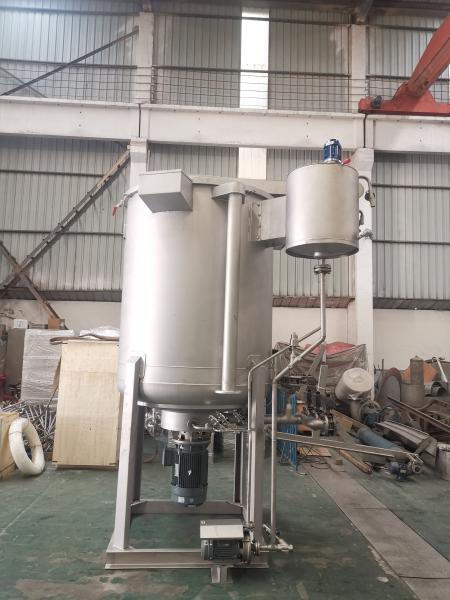

High Temperature Loose Fiber Dyeing Machine With Vertical Type Shape
High Temperature Loose Fiber Dyeing Machine With Vertical Type Shape
High Temperature Loose Fiber Dyeing Machine With Vertical Type Shape
High Temperature Loose Fiber Dyeing Machine With Vertical Type Shape
High Temperature Loose Fiber Dyeing Machine With Vertical Type Shape
High Temperature Loose Fiber Dyeing Machine With Vertical Type Shape
Specifications
Brand Name :
Alees
Model Number :
AS-QRS
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
USD5000-250000
Packaging Details :
Wooden Case/Plastic Film
Delivery Time :
6-9 weeks
Supply Ability :
50 sets per month
Shape :
Vertical Type
Meterial :
SUS 316L
Voltage :
380V-50HZ
Controller :
SETEX747 / AS9000A(China) / EAS-PCT310
Control System :
Full Automatic
Description

Introction


AS-QRS series is Suitable for dyeing various types of loose fibers, especially cashmere, wool, cotton, wool, silk,acrylic, etc. and their blended products.It could finish several dyeing processes such as refining, bleaching, dyeing and pliability etc.


Technical Parameters


-Maximum operating temperature: 135℃

-Heating rate: average 4℃/min
(dry saturated steam pressure at 0.7Mpa)
-Cooling rate: average 2℃/min

(cooling water pressure at 0.3Mpa, cooling water temperature: 5℃~10℃)


Model and Specifications


Model

Capacity (KG)

Dimension

Main Pump

Power (KW)

Lifting height

(MM)

L*W*H (MM)

AS-QRS-50

50

1600*1500*2550

5.5

4565

AS-QRS-100

100

2300*1900*2700

5.5

5268

AS-QRS-200

200

2300*1950*3300

7.5

5880

AS-QRS-300

300

2600*2200*3700

18.5

6380

AS-QRS-500

500

3000*2500*4000

22

6597
