Thales Triode 220V Radio Frequency Dryer Machine Heating And Drying Machine
Thales Triode 220V Radio Frequency Dryer Machine Heating And Drying Machine
Thales Triode 220V Radio Frequency Dryer Machine Heating And Drying Machine
Thales Triode 220V Radio Frequency Dryer Machine Heating And Drying Machine
Thales Triode 220V Radio Frequency Dryer Machine Heating And Drying Machine
Thales Triode 220V Radio Frequency Dryer Machine Heating And Drying Machine
Specifications
Brand Name :
Alees
Model Number :
AS01-85KW
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
USD5000-250000
Packaging Details :
Wooden Case/Plastic Film
Delivery Time :
6-9 weeks
Supply Ability :
50 sets per month
Material :
Stainless Steel
Temperature Range :
50°C - 200°C
Voltage :
220V
Frequency :
50Hz
Power :
1000W
Description

Introduction

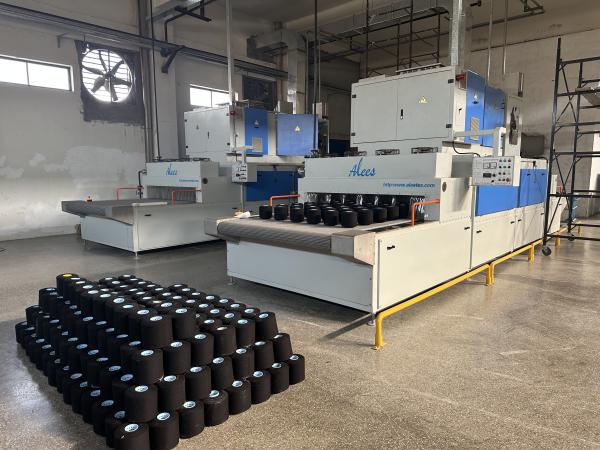

AS01-85KW/170KW is suitable for the drying of yarn packages after dyeing and hydro extraction.

Technical Specification and standards

-Electrical supply voltage: 380V±5%
-Electrical supply Frequency: 50HZ
-Operating frequency: 27.12MHZ±0.6%
-Input power: 142KVA
-Output power: 85KW
-Conveyor belt operating speed: 2.5M/H-107M/H
-Cooling system: Water cooling;air cooling
-Water circulation: 2.5m³/h
-Evaporative capacity: 1.2-1.3kg(water)/kw(RF)h
-Steam Consumption: 20-25kg/h Pressure≥0.4Mpa
-Max product height: 260mm
-Max loading width: 1650mm
-External dimensions: 9m*2.4m(3.1mmax)*3.3m
-weight: 4500kg

Technical Specification and standards

Model AS01-85KW
Electrical supply voltage 380V±5%
Electrical supply Frequency 50HZ
Operating frequency 27.12MHZ±0.6%
Input power 142KVA
Output power 85KW
Conveyor belt operating speed 2.5M/H-107M/H
Cooling system Water cooling;air cooling
Water circulation 2.5m³/h
Evaporative capacity 1.2-1.3kg(water)/kw(RF)h
Steam Consumption 20-25kg/h Pressure≥0.4Mpa
Max product height 260mm
Max loading width 1650mm
External dimensions 9m*2.4m(3.1mmax)*3.3m
weight 4500kg

Production Capacity

Synthetics 900-1000(kg/h)
Wool&cotton blends 350-400(kg/h)
Cotton&viscose 200-250(kg/h)

Thales Triode 220V Radio Frequency Dryer Machine Heating And Drying MachineThales Triode 220V Radio Frequency Dryer Machine Heating And Drying MachineThales Triode 220V Radio Frequency Dryer Machine Heating And Drying Machine
