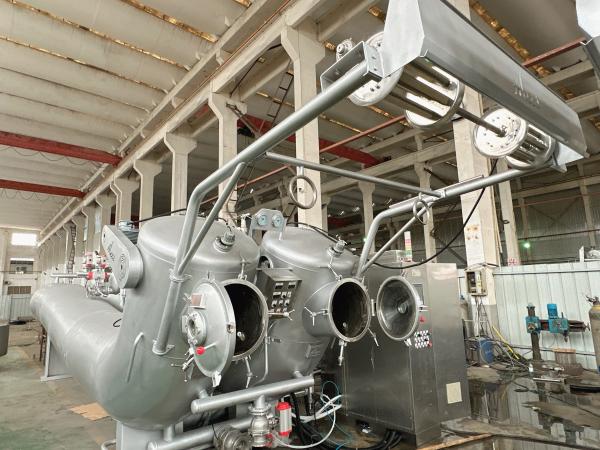

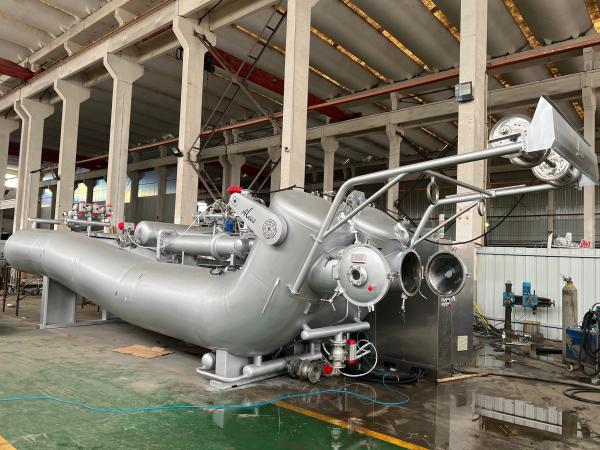

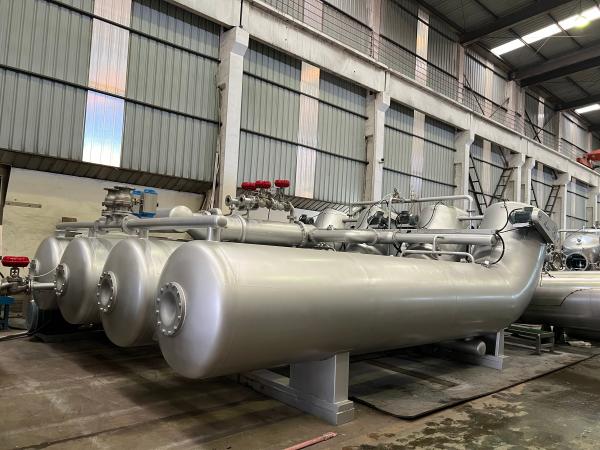

Energy Saving SUS 316L Save Cost Overflow Dyeing Machine
Energy Saving SUS 316L Save Cost Overflow Dyeing Machine
Energy Saving SUS 316L Save Cost Overflow Dyeing Machine
Energy Saving SUS 316L Save Cost Overflow Dyeing Machine
Energy Saving SUS 316L Save Cost Overflow Dyeing Machine
Energy Saving SUS 316L Save Cost Overflow Dyeing Machine
Specifications
Brand Name :
Alees
Model Number :
AS-636
Place of Origin :
China
Certification :
CE
MOQ :
1
Price :
USD5000-250000
Packaging Details :
Wooden Case/Plastic Film
Delivery Time :
6-9 weeks
Supply Ability :
50 sets per month
Shape :
L Shape
Meterial :
SUS 316L
Voltage :
380V-50HZ
Controller :
SEDO6007 / SETEX747 / AS9000A(China) / EAS-PCT310
Control System :
Full Automatic
Nozzle Size :
65/90/133
Description

Introction

AS636 series dyeing machine handles both standard knitted and elastic fabrics including cotton, viscose, polyester, and nylon elastic variants. Compatible with overflow jet flow technology, it processes fabrics from 50-600g/m². Its composite variable-diameter guide tube minimizes tension while preventing warp crease, and the optimized short-cloth-groove design maintains low liquor ratios for efficient operation. The low-profile, low-tension configuration reduces post-dye shrinkage and ensures consistent finished weights. Constructed with high-grade European/Japanese SUS316/316L stainless steel, the heavy-duty machine body and heat exchanger deliver exceptional corrosion resistance and durability.Sandblasting on the whole machine surface.

Technical Parameters

-Maximum working pressure: Mpa 0.4

-Maximum operating temperature: 135℃
-Heating rate: 20℃~130℃ average 5℃/min
(dry saturated steam pressure at 0.7Mpa)
-Cooling rate: 130℃~80℃ average 2.5℃/min

(cooling water pressure at 0.3Mpa, cooling water temperature: 5℃~10℃)

-Liquor Ratio: 1:5-1:8

Model and Specifications

Model No. Of Tubes

Max. Capacity

(KG)

Dimension (mm)

(L*W*H)

General Power

(KW)
AS636-25 1 18-25 5240*1450*2730 9.4
AS636-50 1 35-50 6350*1450*2730 10.2
AS636-75 1 50-75 6830*1530*2730 10.2
AS636-100 1 70-100 5800*1700*3080 13.5
AS636-250 1 175-250 10800*1700*3080 18
AS636-500 2 350-500 10800*3100*3080 36
AS636-1000 4 700-1000 10800*6050*3180 63.5
