Energy Saving Mini Dyeing Machine Eco Friendly With Automatic Control
Energy Saving Mini Dyeing Machine Eco Friendly With Automatic Control
Energy Saving Mini Dyeing Machine Eco Friendly With Automatic Control
Energy Saving Mini Dyeing Machine Eco Friendly With Automatic Control
Energy Saving Mini Dyeing Machine Eco Friendly With Automatic Control
Energy Saving Mini Dyeing Machine Eco Friendly With Automatic Control
Specifications
Brand Name :
Alees
Model Number :
AS 630
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
USD5000-250000
Supply Ability :
50 sets per month
Delivery Time :
6-9 weeks
Packaging Details :
Wooden Case/Plastic Film
Shape :
L Shape
Meterial :
SUS 316L
Voltage :
380V-50HZ
Controller :
SETEX747 / AS9000A(China) / EAS-PCT310
Control System :
Full Automatic
Description

Introduction

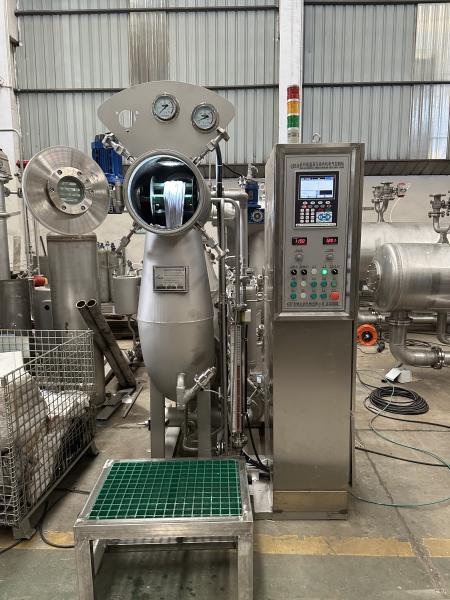

AS630's body and all parts in contact with the dyeing liquid are constructed from highly corrosion-resistant stainless steel. A high-efficiency stainless steel centrifugal pump ensures optimized dyeing liquid circulation, while the lifting roller is inverter-controlled for precise operation.The system includes a dyestuff tank equipped with a dosing pump, valve, and an efficient dyeing liquid circulation system. A liquid level indicator with a magnetic control water level sensing device provides accurate monitoring. Additionally, a high-efficiency heat exchanger enhances thermal performance.Water inlet, discharge, and flow cleaning are all managed by pneumatic valves for reliable and automated control.

Technical Parameters

-Maximum fabric speed: 350m/min

-Maximum working pressure: Mpa 0.4

-Maximum operating temperature: 135℃

-Heating rate: 25℃-100℃ about 5℃/min

100℃-130℃ about 2.5℃/min

(dry saturated steam pressure at 0.7Mpa)

-Cooling rate: 130-100℃ about 3℃/min

100℃-85℃average2℃/min

(cooling water pressure at 0.3Mpa, cooling water temperature: 5℃~10℃)

-Liquor Ratio: 1:5-1:6

Model and Specifications

Model

Capacity

(kg)

Dimension (mm)

(L*W*H)

General Power

(kw)
AS630-5 4-6 1400*1170*1800 5.9
AS630-15 8-15 2450*1050*2060 7.7
AS630-30 20-30 3750*1200*2200 9.3
AS630-60 40-60 4600*1400*2650 11.2
AS630-120 80-120 6200*1700*2650 11.2
