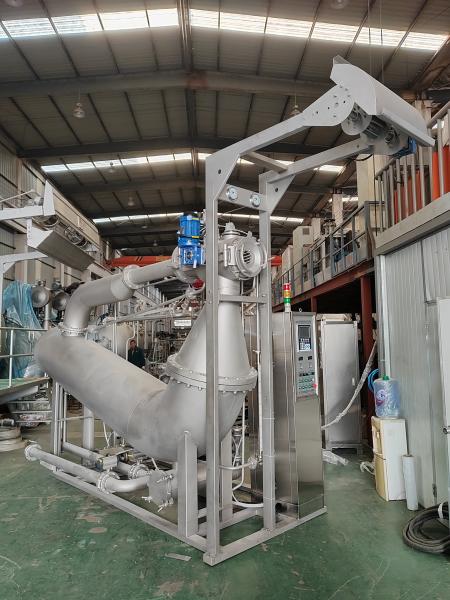

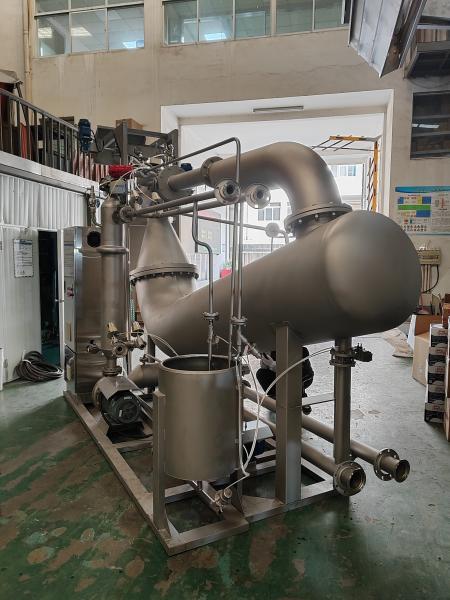

HTHP Medium Batch Fabric Dyeing Machine L Shape With Corrosion Resistant Stainless Steel
HTHP Medium Batch Fabric Dyeing Machine L Shape With Corrosion Resistant Stainless Steel
HTHP Medium Batch Fabric Dyeing Machine L Shape With Corrosion Resistant Stainless Steel
HTHP Medium Batch Fabric Dyeing Machine L Shape With Corrosion Resistant Stainless Steel
HTHP Medium Batch Fabric Dyeing Machine L Shape With Corrosion Resistant Stainless Steel
HTHP Medium Batch Fabric Dyeing Machine L Shape With Corrosion Resistant Stainless Steel
Specifications
Brand Name :
Alees
Model Number :
AS 630
Certification :
CE
Place of Origin :
China
Delivery Time :
6-9 weeks
MOQ :
1
Price :
USD5000-250000
Supply Ability :
50 sets per month
Packaging Details :
Wooden Case/Plastic Film
Shape :
L Shape
Meterial :
SUS 316L
Voltage :
380V-50HZ
Controller :
SETEX747 / AS9000A(China) / EAS-PCT310
Control System :
Full Automatic
Description

Introduction

AS630's body and all parts in contact with the dyeing liquid are constructed from highly corrosion-resistant stainless steel. A high-efficiency stainless steel centrifugal pump ensures optimized dyeing liquid circulation, while the lifting roller is inverter-controlled for precise operation.The system includes a dyestuff tank equipped with a dosing pump, valve, and an efficient dyeing liquid circulation system. A liquid level indicator with a magnetic control water level sensing device provides accurate monitoring. Additionally, a high-efficiency heat exchanger enhances thermal performance.Water inlet, discharge, and flow cleaning are all managed by pneumatic valves for reliable and automated control.

Technical Parameters

-Maximum fabric speed: 350m/min

-Maximum working pressure: Mpa 0.4

-Maximum operating temperature: 135℃

-Heating rate: 25℃-100℃ about 5℃/min

100℃-130℃ about 2.5℃/min

(dry saturated steam pressure at 0.7Mpa)

-Cooling rate: 130-100℃ about 3℃/min

100℃-85℃average2℃/min

(cooling water pressure at 0.3Mpa, cooling water temperature: 5℃~10℃)

-Liquor Ratio: 1:5-1:6

Model and Specifications

Model

Capacity

(kg)

Dimension (mm)

(L*W*H)

General Power

(kw)
AS630-5 4-6 1400*1170*1800 5.9
AS630-15 8-15 2450*1050*2060 7.7
AS630-30 20-30 3750*1200*2200 9.3
AS630-60 40-60 4600*1400*2650 11.2
AS630-120 80-120 6200*1700*2650 11.2
