Specifications
Brand Name :
Alees
Model Number :
AS Multi-Flow / AS Airflow
Certification :
CE
Place of Origin :
China
Delivery Time :
6-9 weeks
MOQ :
1
Price :
USD5000-250000
Packaging Details :
Wooden Case/Plastic Film
Supply Ability :
50 sets per month
Shape :
O Shape
Meterial :
SUS 316L
Voltage :
380V-50HZ
Controller :
SETEX747 / AS9000A(China) / EAS-PCT310
Control System :
Full Automatic
Nozzle Size :
110
Description

Introduction

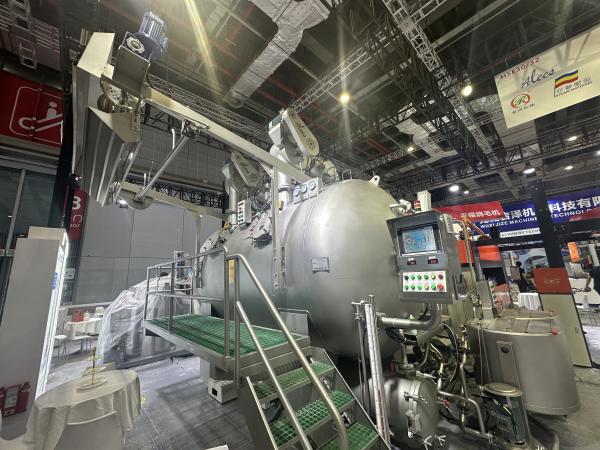

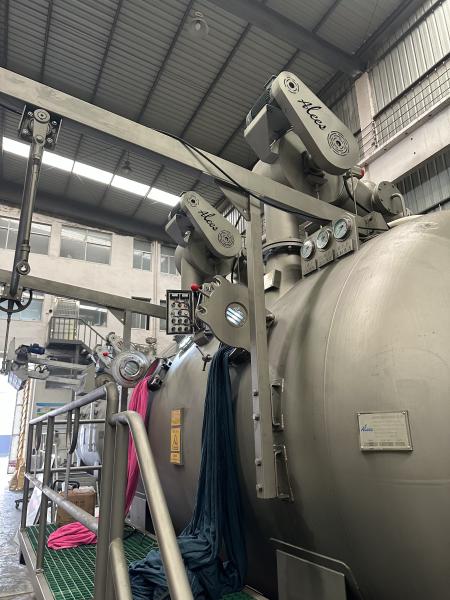

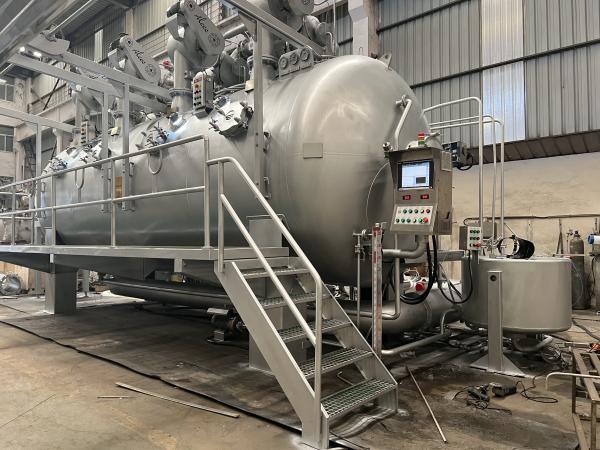

AS-MULTI-FLOW series of high temperature multi-flow flow full mode dyeing machine (pure air flow dyeing mode, pure over flow dyeing mode, air-over flow mixed dyeing mode) is a new generation with a wide range of suitable dyeing cloth, low production cost and first-class quality of dyed fabric. A carefully designed circulation system of airflow and liquid flow superposition is used to make the fabric run smoothly at very low bath ratio 1:3. Fabric lifting system: the perfect fit of double stage nozzle and guide pipe makes the fabric running speed up to 400 m / min, suitable for dyeing process requirements of different fabrics.

Technical Parameters

1.main cylinder

-Maximum fabric speed: 400 m/min

-Maximum working pressure: Mpa 0.4

-Maximum operating temperature: 135℃

-Heating rate: 25℃~100℃ average 5℃/ min ;100℃~130

(dry saturated steam pressure 0.7 MPa)

-Cooling rate: 130℃~100℃ average 3/ min ;100℃~85℃ average 2/ min

(cooling water pressure at 0.3Mpa, cooling water temperature: 5℃~10℃)

-Liquor Ratio: 1:3

2.multi-function reserve cylinder (optional)

-maximum operating temperature: 85℃

-Maximum working pressure: atmospheric pressure

-Heating rate: 25℃~85℃ average 4/ min

(dry saturated steam pressure 0.7 MPa)

-Capacity: about 1:4~5 capacity of the main cylinder

Model and Specifications

Model

Capacity

(KG)

Dimension(mm)

(L*W*H)

General Power

(KW)
AS-Multi-flow-Mini-25KG 25 3000*3300*3300 20.55
AS-Multi-flow-Mini-50KG 50 3290*3560*3410 20.55
AS-Multi-flow-Mini-100KG 100 3600*3770*3410 24.3
AS-MUITI-FLOW-1T 250 5167*4286*4410 24.95
AS-MUITI-FLOW-2T 500 6346*4286*4410 44.5
AS-MUITI-FLOW-3T 750 8400*4286*4855 66.3
AS-MUITI-FLOW-4T 1000 9900*4300*4855 109.5
AS-MUITI-FLOW-6T 1500 12900*4300*4855 135.9
Controller
