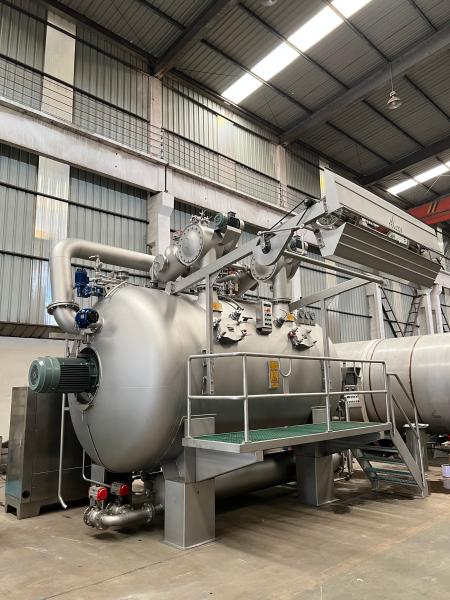

Low Consumption HTHP Piece Dyeing Machine Multi Flow Fabric Dyeing Machine
Low Consumption HTHP Piece Dyeing Machine Multi Flow Fabric Dyeing Machine
Low Consumption HTHP Piece Dyeing Machine Multi Flow Fabric Dyeing Machine
Low Consumption HTHP Piece Dyeing Machine Multi Flow Fabric Dyeing Machine
Low Consumption HTHP Piece Dyeing Machine Multi Flow Fabric Dyeing Machine
Low Consumption HTHP Piece Dyeing Machine Multi Flow Fabric Dyeing Machine
Specifications
Brand Name :
Alees
Model Number :
AS Multi-Flow / AS Airflow
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
USD5000-250000
Supply Ability :
50 sets per month
Delivery Time :
6-9 weeks
Packaging Details :
Wooden Case/Plastic Film
Shape :
O Shape
Meterial :
SUS 316L
Voltage :
380V-50HZ
Controller :
SETEX747 / AS9000A(China) / EAS-PCT310
Control System :
Full Automatic
Nozzle Size :
110
Description

Introduction

AS-MULTI-FLOW series of high temperature multi-flow flow full mode dyeing machine (pure air flow dyeing mode, pure over flow dyeing mode, air-over flow mixed dyeing mode) is a new generation with a wide range of suitable dyeing cloth, low production cost and first-class quality of dyed fabric. A carefully designed circulation system of airflow and liquid flow superposition is used to make the fabric run smoothly at very low bath ratio 1:3. Fabric lifting system: the perfect fit of double stage nozzle and guide pipe makes the fabric running speed up to 400 m / min, suitable for dyeing process requirements of different fabrics.

Technical Parameters

1.main cylinder

-Maximum fabric speed: 400 m/min

-Maximum working pressure: Mpa 0.4

-Maximum operating temperature: 135℃

-Heating rate: 25℃~100℃ average 5℃/ min ;100℃~130

(dry saturated steam pressure 0.7 MPa)

-Cooling rate: 130℃~100℃ average 3/ min ;100℃~85℃ average 2/ min

(cooling water pressure at 0.3Mpa, cooling water temperature: 5℃~10℃)

-Liquor Ratio: 1:3

2.multi-function reserve cylinder (optional)

-maximum operating temperature: 85℃

-Maximum working pressure: atmospheric pressure

-Heating rate: 25℃~85℃ average 4/ min

(dry saturated steam pressure 0.7 MPa)

-Capacity: about 1:4~5 capacity of the main cylinder

Model and Specifications

Model

Capacity

(KG)

Dimension(mm)

(L*W*H)

General Power

(KW)
AS-Multi-flow-Mini-25KG 25 3000*3300*3300 20.55
AS-Multi-flow-Mini-50KG 50 3290*3560*3410 20.55
AS-Multi-flow-Mini-100KG 100 3600*3770*3410 24.3
AS-MUITI-FLOW-1T 250 5167*4286*4410 24.95
AS-MUITI-FLOW-2T 500 6346*4286*4410 44.5
AS-MUITI-FLOW-3T 750 8400*4286*4855 66.3
AS-MUITI-FLOW-4T 1000 9900*4300*4855 109.5
AS-MUITI-FLOW-6T 1500 12900*4300*4855 135.9
Controller
