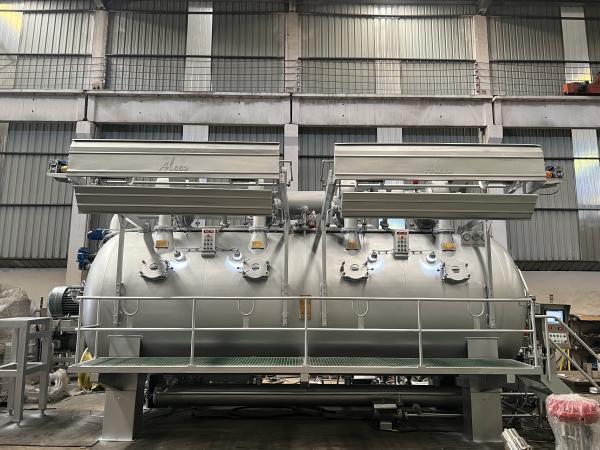

380V Airflow Dyeing Machine Multiflow HT High Temperature Rope Dyeing Machine
380V Airflow Dyeing Machine Multiflow HT High Temperature Rope Dyeing Machine
380V Airflow Dyeing Machine Multiflow HT High Temperature Rope Dyeing Machine
380V Airflow Dyeing Machine Multiflow HT High Temperature Rope Dyeing Machine
380V Airflow Dyeing Machine Multiflow HT High Temperature Rope Dyeing Machine
380V Airflow Dyeing Machine Multiflow HT High Temperature Rope Dyeing Machine
Specifications
Brand Name :
Alees
Model Number :
AS Multi-Flow / AS Airflow
Certification :
CE
Place of Origin :
China
Delivery Time :
6-9 weeks
MOQ :
1
Price :
USD5000-250000
Packaging Details :
Wooden Case/Plastic Film
Supply Ability :
50 sets per month
Shape :
O Shape
Meterial :
SUS 316L
Voltage :
380V-50HZ
Controller :
SETEX747 / AS9000A(China) / EAS-PCT310
Control System :
Full Automatic
Nozzle Size :
110
Payment Terms :
L/C
Description
Introduction

AS-MULTI-FLOW series of high temperature multi-flow flow full mode dyeing machine (pure air flow dyeing mode, pure over flow dyeing mode, air-over flow mixed dyeing mode) is a new generation with a wide range of suitable dyeing cloth, low production cost and first-class quality of dyed fabric. A carefully designed circulation system of airflow and liquid flow superposition is used to make the fabric run smoothly at very low bath ratio 1:3. Fabric lifting system: the perfect fit of double stage nozzle and guide pipe makes the fabric running speed up to 400 m / min, suitable for dyeing process requirements of different fabrics.

Technical Parameters
  1. main cylinder
    • Maximum fabric speed: 400 m/min
    • Maximum working pressure: Mpa 0.4
    • Maximum operating temperature: 135℃
    • Heating rate: 25℃~100℃ average 5℃/ min ;100℃~130 (dry saturated steam pressure 0.7 MPa)
    • Cooling rate: 130℃~100℃ average 3/ min ;100℃~85℃ average 2/ min (cooling water pressure at 0.3Mpa, cooling water temperature: 5℃~10℃)
    • Liquor Ratio: 1:3
  2. multi-function reserve cylinder (optional)
    • maximum operating temperature: 85℃
    • Maximum working pressure: atmospheric pressure
    • Heating rate: 25℃~85℃ average 4/ min (dry saturated steam pressure 0.7 MPa)
    • Capacity: about 1:4~5 capacity of the main cylinder
Model and Specifications
Model Capacity (KG) Dimension Main Pump Power (KW) Blower Power (KW)
L*W*H (MM)
AS-Multi-Flow-Mini-25KG253000*3300*3300411
AS-Multi-Flow-Mini-50KG503300*3600*3450411
AS-Multi-Fow-Mini-100KG1003500*3400*3800415
AS-Multi-Flow-Mini-200KG2004400*3800*3800415
AS-Multi-Flow-1T2504500*5200*40005.518.5
AS-Multi-Flow-2T5005900*5100*42001137
AS-Multi-Flow-3T7506400*5100*42001145
AS-Multi-Flow-4T10009800*5100*43001175
AS-Multi-Flow-6T150012600*5100*430018.590
Controller
