Introduction of HDPE corrugated pipe extrusion line:

The SJ50/30 PE Corrugated Pipe Production Line is a high-performance and cost-effective solution designed for the production of single-wall PE corrugated pipes. Widely used in cable conduit, automotive wiring protection, electrical systems, and household appliances, this line ensures high output, stable quality, and easy operation — making it especially suitable for markets in Africa and the Middle East.

Main Components

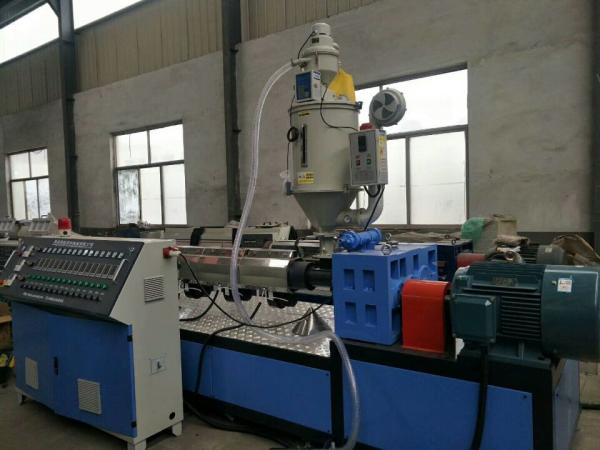

1. SJ50/30 Single Screw Extruder

Equipped with a high-quality alloy screw and barrel, specially designed for PE material extrusion.

Features variable frequency drive for precise speed control and stable extrusion.

Multi-zone temperature control system (PID-controlled) ensures consistent material plasticizing and energy efficiency.

2. Corrugated Pipe Mold Block System

Precision-engineered mold blocks made from high-strength alloy steel with chrome-plated surfaces for durability and anti-corrosion.

Quick-change design for flexible production of various pipe diameters.

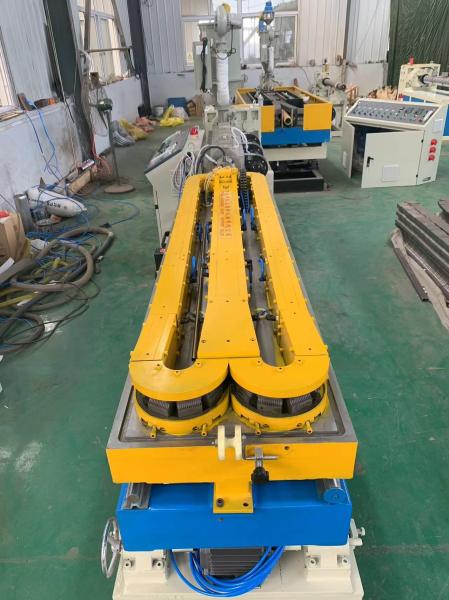

3. Corrugator (Forming Machine)

Driven by a high-precision gear system for smooth and low-noise operation.

Forced air-cooling ensures consistent pipe shape and supports higher production speeds.

Fully synchronized with the extruder for accurate forming and dimension control.

4. Automatic Cutter

Servo or pneumatic-driven cutting system for accurate, clean, and burr-free cuts.

Adjustable cutting lengths to meet different customer requirements.

Follows pipe speed automatically for high-precision cutting.

5. Double-Station Coiler

Enables continuous operation with automatic coil switching, reducing downtime.

Adjustable tension control for neat and compact winding.

Meter-counting and alarm function available for automated production management.

Technical parameters of PE corrugated pipe machine:

Main Advantages of PE corrugated pipe extrusion machine:

Stable & Efficient: Optimized structure for reliable and continuous production.

User-Friendly Automation: PLC-based system ensures simple operation and reduced labor needs.

Compact Layout: Space-saving design, ideal for factories with limited space.

Reliable Quality: All key components are from reputable international brands.

Customizable Design: Molds and coiler configurations can be tailored upon request.

Machine display:
