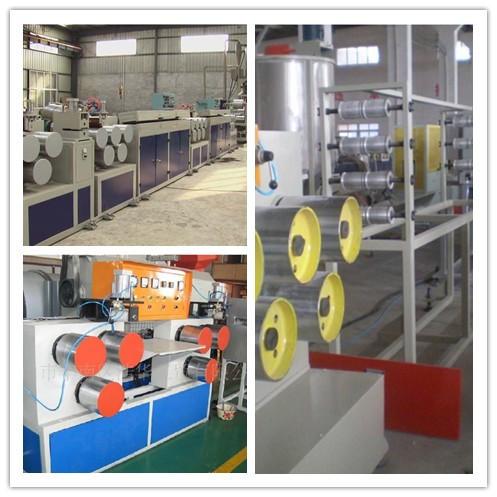

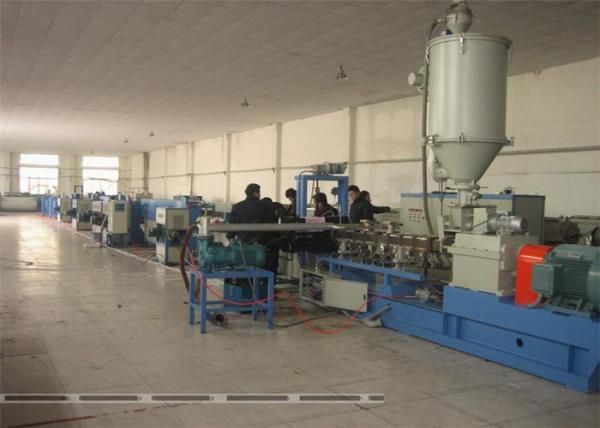

One Screw PET PP PE Strapping Band Machine Extruder Fully automatic

Quick detail:

PET Strap Extruder/Strapping Band Production Line/PET strap production line

Machine characters :.

1. Quality parts . crystallization /drying system, driving system, extruding system, stretching system, forming system, drying , and winding system, all parts from high precision processed units, CE standard passed quality

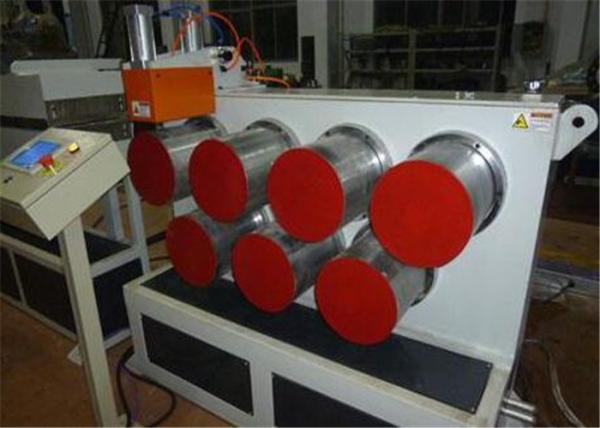

2. Professional and experienced design Extruder adopts special screw for PET. The screw has unique separate and mix property to make sure uniform plasticizing. The screw suitable for recycled PET bottle flakes, PET mixture and original PET material. Stretching and winding system is much important in this line, we have EXPERT-LEVEL design on this.

Description:

1)Adopts advanced CSW-800 comby dehumidify dryer system. It make sure the material humidity≤80PPM at -50°C dew point. Meanwhile, it compact material and increase the viscidity.

2)Adopts closed cycle transport system after dryer to avoid contact with outside air and make sure the material be dry continuously.

3)Extruder adopts special screw for PET. The screw has unique separate and mix property to make sure uniform plasticizing. The screw suitable for recycled PET bottle flakes, PET mixture and original PET material. And the extruder adopts ration forced feeding to make sure the stable extruding. It makes sure the product uniform.

4)Produce different model product at one die and mould. Adopts hydraulic screen exchanger without material leak.

5)Static cooling roller replace the water cooling tank. The roller will cool the strap at the constant temperature. It improves the product’s stretch intensity.

Technological parameter:

Application:

PE Tstrap band have advantages as good stiffness, high temperature resistance. The specific gravity is as 1/5 as steel. The straps can be used for packing in various areas. The characters of such straps are as follows: High tensile strength, small percentage elongation, resistance to impact, not easy to be broken and good softness.

Competitive Advantage:

24 hours services;

Overseas installation;

Free operation training and technology formula transfer;

Old machine update;

Spare parts and maintenance with reasonable cost price.
