Specifications
Brand Name :
AORUI
Model Number :
SJSZ65/132
Certification :
CE BV ISO9001
Place of Origin :
ShanDong China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T L/C
Supply Ability :
10 sets per month
Delivery Time :
30 days
Packaging Details :
Fumigation wood, film,pallet,etc or according to customer’s requirement.
Screw design :
double screw
Motor power :
37kw
Voltage :
380v50hz
Capacity :
160-220kg/h
After sales service :
engineers availiable to serive
Application :
Pipe
Condition :
New
Description

PVC Plastic Extrusion Line , 16-63mm PVC Cable Protection Pipe Production Line

Quick detail

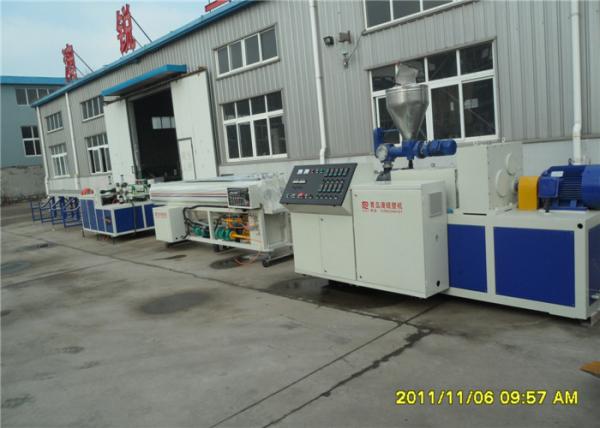

1. This line is composed by:
*Feeder
*Conical twin-screw extruder
*Pipe mould
*Vacuum calibration tank
*Spray box

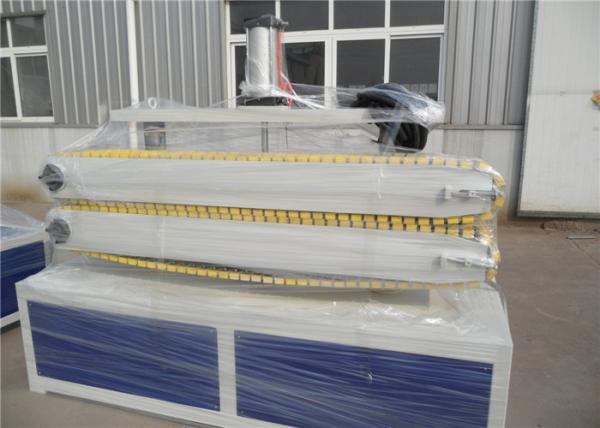

*Haul-off
*Cutter
*Stake

2. The extruder and haul-off adopt imported AC frequency speed controller, vacuum pump and haul-off motor all adopt superior products. The haul-off method has two-claw, three-claw, four-claw, six-claw and etc. You may choose saw blade cutting type or planetary cutting type.

Description:

1. PVC pipe extrusion line is mainly used for producting plastic pipe for agriculture water supply & sewage, for building industries water supply & sewage, for cable and wire laying.

2. The extrusion line can produce pressure water pipes, drainage pipes, industrial pipes and cables duct. The screw structure for the corresponding designed to meet the processing of high filling material(Caco3) pipe requiement, according to the use of pipe, change molds and the corresponding auxiliary equipment, can be processed produce UPVC pipe,CPVC pipe, PVC-M pipe, PVC-O pipe, foam core layer pipe, foam inside the spiral hollow wall spiral pipe.

Main Technical Parameter

Specification GF63 GF110 GF160 GF250 GF400 GF630 GF800
Item 16-63 16-110 32-160 63-250 160-400 315-630 450-800
diameter of pipe material 16-63 16-110 32-160 63-250 160-400 315-630 450-800
claw number of drawing machine 2 2 2 3 4 6 8
pulling force 6 8 11 20 30 40 50
drawing speed 15 12 8 9 4 2 2
total power of auxiliary machine 14 14 14 21.5 41 56 64

Applications:

It mainly used in the area of agricultural water supply system , architectural water supply system , pavement of cables,ect.

our advantages:

1. good after-service

2. stable capcity and high output

3.gurantee:one year or according to customer’s requirement.

4.advanced technology and better quality

PVC Plastic Extrusion Line , 16-63mm PVC Cable Protection Pipe Production Line
