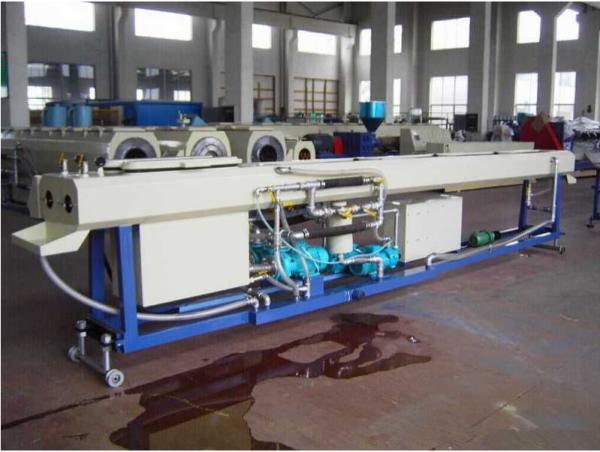

PP Plastic Pipe Extrusion Line / 16-63mm PE Plastic Pipe Manufacturing Machine
PP Plastic Pipe Extrusion Line / 16-63mm PE Plastic Pipe Manufacturing Machine
PP Plastic Pipe Extrusion Line / 16-63mm PE Plastic Pipe Manufacturing Machine
PP Plastic Pipe Extrusion Line / 16-63mm PE Plastic Pipe Manufacturing Machine
Specifications
Brand Name :
AORUI
Model Number :
SJ90/33
Certification :
CE BV ISO9001
Place of Origin :
ShanDong China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T L/C
Supply Ability :
30 sets per quater
Delivery Time :
30 days
Packaging Details :
Fumigation wood, film,pallet,etc or according to customer’s requirement.
Condition :
new
Brand name :
AORUI
Processing type :
extrusion
Automatic grade :
fully automatic
Tyep :
twin pipe extrusion production line
Max output :
220kg/h
Description

PE Plastic Pipe Extrusion Line , PE Twin Pipe Machine Plastic / Extruder

Quick detail:

1. first class pipe die was designed with many years experience

2. twin pipe vacuum sizing system

3. twin pipe hauling mechanism

4. synchronous cutting device

Specification:

Raw material+additive→mixing→conveying feeding→force feeding→conical double screw extruder→"one mould four pipes" mould→calibrator→spray vacuum calibration tank→ink printer→belt haul off→uplift cutter→pipe rack→finshed product inspecting & packing

1.PE plastic pipe machine is mainly used in the manufacture of PE pipes with various diameters and wall thickness in the aspects such as the agricultural and constructional plumbing, cable layietc

2.This set is composed of conical twin-screw extruder, vacuum cablibrating tank, haull-off, cutter, stacker or belling machine etc.

3.The extruder and haul-off machine adopt the imported AC frequency control device,The vacuum pump and hauling motor employ superior goods.

4.Haul-off machine of different specifications, such as two caterpillars, three caterpillars, four caterpillars, six caterpillars etc are designed for different requirements.

5.It is additionally attched with length measuring apparatus and thickness increasing device

6.The unit is of reliable performance and high production efficiency .

Production Line Structure

Extruder Model SJ-51X105 SJ-65X132
Accessory Machine GFDP-63 GFDP-63
Pipe diameter(mm) 16-63 16-63
Production Speed 12(m/min) 12(m/min)
Max.output 160(kg/h) 220(kg/h)

Why choose us and our advantages:

1. we have many years experience

2. we have goos after sales service

3. we have resonable price

4. The stable operation and output.

PP Plastic Pipe Extrusion Line / 16-63mm PE Plastic Pipe Manufacturing MachinePP Plastic Pipe Extrusion Line / 16-63mm PE Plastic Pipe Manufacturing Machine
