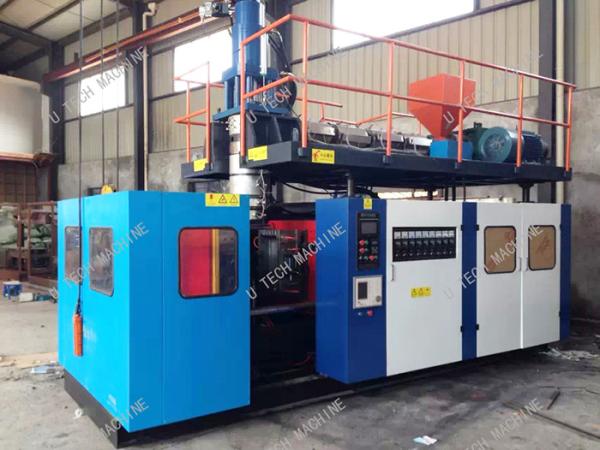

12L Plastic Jars Gallons Extrusion Blow Molding Machine 22 - 37kw Screw Drive
12L Plastic Jars Gallons Extrusion Blow Molding Machine 22 - 37kw Screw Drive
Specifications
Brand Name :
U TECH
Model Number :
BST-12
Certification :
CE SGS ISO
Place of Origin :
Jiangsu, China (Mainland)
MOQ :
1 Set/Sets
Price :
discussible
Payment Terms :
L/C, T/T
Supply Ability :
15 Set/Sets per Month
Delivery Time :
45 work days
Packaging Details :
Wooden Case for 5L-10L-15L-20L HDPE Plastic Jerry Can Tank Container Drum Extrusion Blowing Mould /Blow Molding Machine
Material :
Stainless Steel
PLC :
MITSUBISHI
Control System :
PLC+touch Screen
Mould Cavity :
1-2
Operation screen :
SIMENS
Screw diameter :
70-90mm
Weight :
6-10T
Screw drive power :
22-37kw
Description

12L Plastic bottles jerry cans jars gallons extrusion blow molding machine

Introduction

This machine can help you to make the Max. Volume as 12Liter in the jerrycan. It’s widely used to make 500ml~12L bottle. You can have different options in this 12Liter machine like single station, double station, single head, multi heads, view strip, single layer, multi-layers,auto-deflashing function and so on. We can make the most suitable configuration according to your requirement in you new project.

Feature

1. Electronic control system: Japanese Mitsubishi PLC computer plus man-machine interface (Chinese or English) red paper, touch-screen operation. All process settings, changes, search, monitoring, fault diagnosis and other functions are achieved on the touch screen, no contact with the working principle, components and durable.


2. Hydraulic system: proportional pressure control, equipped with imported brand-name hydraulic components, stable and reliable.


3. Plasticizing system: efficient plasticizing mixing screw, plastic plastic to ensure adequate and uniform.


4. Speed control system: frequency control + alloy steel gear reducer, smooth speed, low noise, durable.


5. Opening and closing mode, mobile system: beam arm, three o’clock, the center of the mold clamping mode, to ensure long-term use. Clamping force balance, no deformation, and the use of translation mode body (ball linear guide), high precision, less resistance, faster..


6. Blowing needle holder: the overall angle-type blowing needle holder, stable and not shift, to ensure that products cut smooth.

Components list


COMPONENTS NAME
BRAND
ORIGIN

PLC
MITSUBISHI
Japan

Operation screen
SIMENS
Germany

Parison control system
MOOG
Japan

Inverter
MITSUBISHI
Japan

Pneumatic parts
FESTO
Germany

Hydraulic pump and valve
YUKEN
Japan

Transducer
GEFRAN
Italy

Contactor
SCHNEIDER
France

Relay
SCHNEIDER
France

Parameter

12L Plastic Jars Gallons Extrusion Blow Molding Machine 22 - 37kw Screw Drive
