Inserting Equipment 5 Gallon Bottle Cap Lining Washer Flow Production
Inserting Equipment 5 Gallon Bottle Cap Lining Washer Flow Production
Specifications
Brand Name :
U TECH
Model Number :
BST-1200
Certification :
CE SGS ISO
Place of Origin :
Jiangsu, China (Mainland)
MOQ :
1 Set/Sets
Price :
discussible
Payment Terms :
L/C, T/T
Supply Ability :
20 Set/Sets Per Month
Delivery Time :
45 work days
Packaging Details :
wooden case for Automatic Flip Top Closure Bottle Cap Rotary Closing Assembly Machine
Condition :
New
Automatic Grade :
Automatic
Type :
Capping Machine
Driven Type :
Electric
Voltage :
220V/380V/440V
Dimension :
1600*1100*1800mm
Weight :
500kg
Capping speed :
60-100 /min
Material :
Aluminum Alloy/P20
Rhythm :
Flow Production Line
Warranty :
2 YEARS
Description

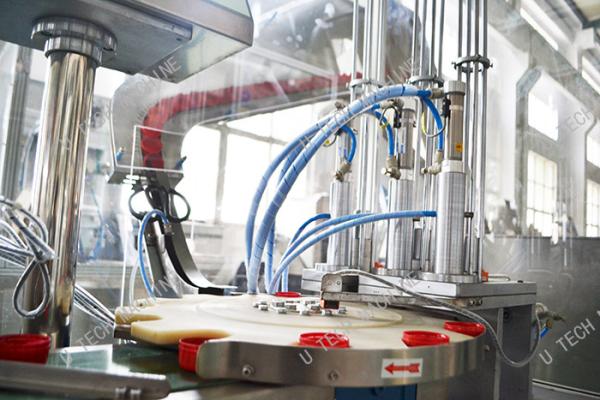

5 gallon cap lining machine ( washer inserting machine for 5 fallon bottle cap )

Owing to our state-of-the-art manufacturing unit, we are offering a distinguished assortment of Cap Lining Machine. By keeping in mind current market developments, we manufactured the offered machine under the supervision of adept professionals using well-tested components and high-end technology. Apart from this, our quality inspectors conduct a series of tests on the offered product ensuring its flawlessness. Clients can avail the product from us in various technical specifications at reasonable prices.

Product features:

1. With lidge-sorting function, the 5-gallon LIDS are arranged from the lidge-sorting machine in one direction to the inside of the track, and then from the track to the top of the conveyor belt. Finally, the cylinder pushes the lid into the card slot of the turntable, and the lid is transferred to the pad position through the turntable.Smooth lipping and accurate positioning.

2. Through the precise pneumatic and electrical control manipulator, the functions of taking, sending and adding pads are completed. The whole process is stable, accurate, sanitary and efficient.

3. The machine is equipped with gasket groove. The operator only needs to put the well-arranged gasket into the gasket groove.

Technique Parameter

model

BST-1200

Speed

Max 120 caps/min

Electricity power

380V, 50HZ

power

2000W

Air compression

30L/min, ≥0.4Mp

host equipment size

1100mm*900mm*1400mm

Cap elevator and cap feeding device

1700mm*750mm*1200mm

Foil sending device

500mm*500mm*750mm

Waster soil sending device

500mm*500mm*650mm

conveyor

1200mm*100mm*200mm

Machine weight

1100Kg

The certificate
