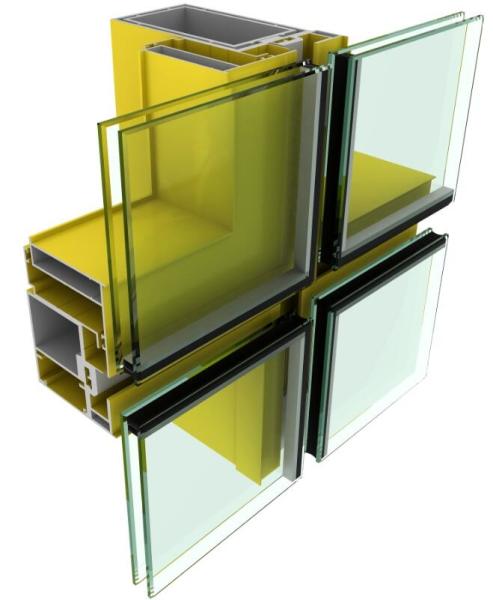

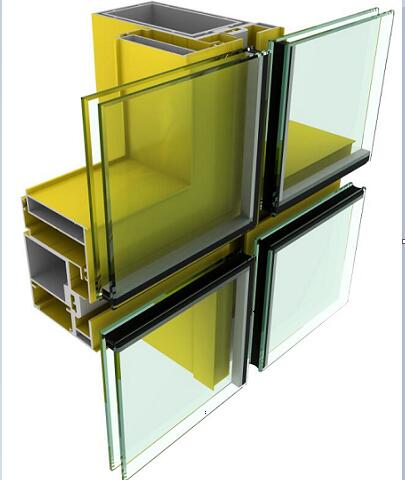

6063 Ventilated Thermal Break aluminium Curtain Wall profile Extrusions Mill Finished
6063 Ventilated Thermal Break aluminium Curtain Wall profile Extrusions Mill Finished
6063 Ventilated Thermal Break aluminium Curtain Wall profile Extrusions Mill Finished
6063 Ventilated Thermal Break aluminium Curtain Wall profile Extrusions Mill Finished
Specifications
Brand Name :
Huilv
Model Number :
HL-110
Certification :
ISO9001:2008/ ISO14001:2004/ OHSAS 18001:1999/PPG/TUV/CE
Place of Origin :
China
MOQ :
300Kg
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
50 000 Tons/Year
Delivery Time :
5-15 working days
Packaging Details :
inner protection film stick on each profile, outter a bundle packed by the carton or shrink paper.
Product name :
Extrusion Aluminium Profile With Thermal Break
Shape and size :
square or follow the client's drawing and sample
Frame thickness :
4mm or follow the customer's requirements
Length :
6-8m, or custom length
Deep process :
CNC milling,punching,drilling,bending,welding etc.
Surface finish :
Mill finished,Wood grain,Anodized,Polishing,brushed etc.
Temper :
T5 / T6
Applicatioin :

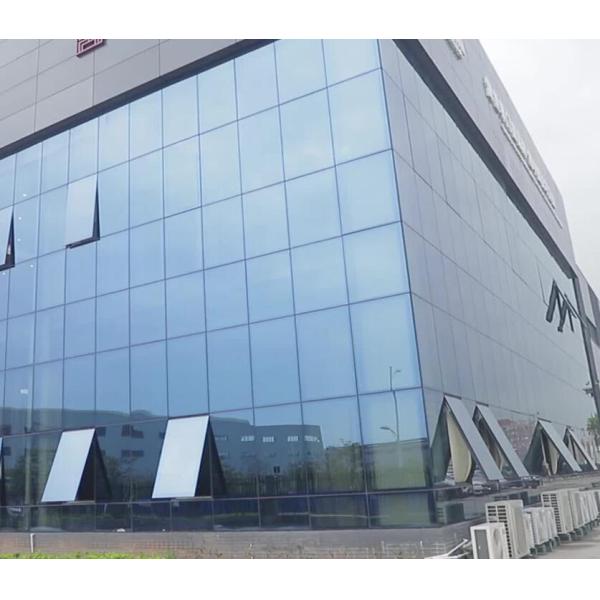

building exterior decoration glass wall
Grade :
6063/6061/6005/6060
Advantages :
can do as your sample
Description

6063 Ventilated Thermal Break aluminium Curtain Wall profile Extrusions Mill Finished:

Quick Details

Model

HL-110
Alloy

6063, 6060, 6061, 6005, 7005; T5/ T6
Type

PVDF Coated Aluminum Alloy Profiles
Surface Treatment

Anodizing, Powder Coating, Electrophoresis, Wooden Grain, Mill Finish
Frame thickness

0.8-4mm, or customized
Standard GB/T5237-2017
Color

just bring us your color sample or color number

Style and Size

 customized
Package

1. Pearl cotton foam for each profile;
2. Wrap with shrink film exterior;
3. Packed according to customer request.
Origin place Anhui province, China

Aluminium Alloy: 6063, 6061, 6005, 6060 Thermal Treatment: T5-T6

Alloy Si Fe Cu Mn Mg Cr Zn Ti Other Impurity Al
Unit Total
6063 (0.2-0.6)% <0.35% <0.1% <0.1% (0.45-0.9)% <0.1% <0.1% <0.1% <0.05% <0.15% all the rest
6061 (0.4-0.8)% 0.7% (0.15-0.4)% <0.15% (0.8-1.2)% (0.04-0.35)% <0.25% <0.15% <0.05% <0.15% all the rest
6005 (0.6-0.9)% <0.35% <0.1% <0.1% (0.4-0.9)% 0.1% <0.1% <0.1% <0.05% <0.15% all the rest
6060 (0.3-0.6)% (0.35-0.6)% (0.1-0.3)% <0.1% <0.1% <0.15% <0.05% <0.1% <0.05% <0.15% all the rest

T5: After extruding aluminum profiles from the extruder, the temperature is rapidly reduced by air cooling to meet the required hardness (8 to 12 degrees Webster).

T6: After extruding aluminum profiles from the extruder, then cooled by water to achieve higher hardness (over 13.5 Webster’s).

6063 Ventilated Thermal Break aluminium Curtain Wall profile Extrusions Mill Finished

6063 Ventilated Thermal Break aluminium Curtain Wall profile Extrusions Mill Finished

6063 Ventilated Thermal Break aluminium Curtain Wall profile Extrusions Mill Finished

Production Line:

1. Extrusion Line

2. Wood Transfer Line

3. Powder Coating Line

4. Anodize Line

5. Polish Line

6063 Ventilated Thermal Break aluminium Curtain Wall profile Extrusions Mill Finished

Famous Project Cases:

Anhui Provincial Government Office Building,

Hefei University of technology Xuancheng branch,

Hefei Elements Market, Shanghai World Expo,

Mauritania presidential palace,

Hangzhou Wan Century Park and so on.

Overseas Market:

Africa: Algeria, Egypt, Libya, Ethiopia, Senegal, Nigeria, South Africa
Europe: Italy, Germany, Finland, Ukraine, Cyprus
America: The United States, Mexico, Brazil, Colombia, Venezuela, Argentina,
Asia: India, Philippines, Vietnam, Thailand, Malaysia, Singapore, Palestine

6063 Ventilated Thermal Break aluminium Curtain Wall profile Extrusions Mill Finished

Shipping port:

Shanghai/Nanjing/Wuhu Port

Type of shipping:

Shipment by sea; by road; by train; multi-transportation.

Payment:

30% down payment by T/T and the rest after BL copy. Or L/C or we can discuss.

Shipping Term:

FOB, CIF or discussed.
