Specifications
Brand Name :
Huilv
Model Number :
HL
Certification :
ISO9001:2008/ ISO14001:2004/ OHSAS 18001:1999/PPG/TUV/CE
Place of Origin :
China
MOQ :
300Kg
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
50 000 Tons/Year
Delivery Time :
5-15 working days
Packaging Details :
inner protection film stick on each profile, outter a bundle packed by the carton or shrink paper.
Material :
aluminum alloy 6005 /T5
Thickness :
0.9-1.5mm or customized
Assemble :
connector
Surface treatment :
usually sand blasting + anodizing
Color :
optional
Processing Service :
Bending, Welding, Punching, Cutting by CNC
Alloy type :
usually 6063 or 6005
Shape :
before assemble strip, after assemble square
Place of origin :
Anhui province,China
Size :
customized
Description

Products Informations:

Industrial Aluminium Profile
1 Material

Common level use 6063 ,high level use 6005
2 Temper T5,T6
3 Surface treatment

Mill finish, anodized, powder coated, electrophoresis, sand blasting, wood grain painting, matted, polishing bright etc.
4 Color available

Silver, Bronze, champagne, Matte, Natural for anodizing, RAL for powder coating
5 Packing details

Normally protected film inside and shrink film outside
6 Samples time

10-15days after receive the mold fee
7 Delivery

Normally 20 days after deposit
8 Production Capacity 1500MT/Month
9 MOQ 300kg

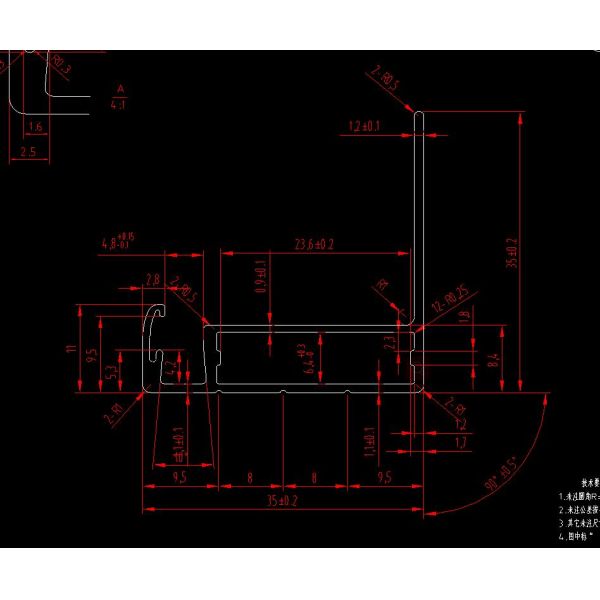

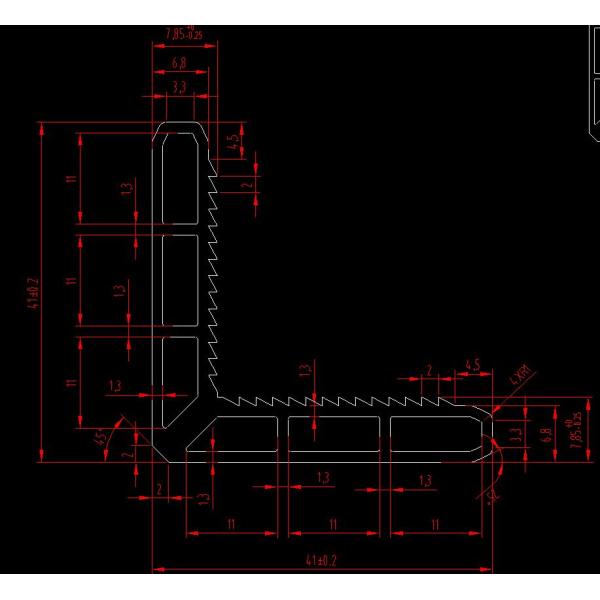

10 Specific shape Refer to below drawings
11 OEM & ODM service

Aluminium Alloy: 6063, 6061, 6005, 6060 Thermal Treatment: T5-T6

Alloy Si Fe Cu Mn Mg Cr Zn Ti Other Impurity Al
Unit Total
6063 (0.2-0.6)% <0.35% <0.1% <0.1% (0.45-0.9)% <0.1% <0.1% <0.1% <0.05% <0.15% all the rest
6061 (0.4-0.8)% 0.7% (0.15-0.4)% <0.15% (0.8-1.2)% (0.04-0.35)% <0.25% <0.15% <0.05% <0.15% all the rest
6005 (0.6-0.9)% <0.35% <0.1% <0.1% (0.4-0.9)% 0.1% <0.1% <0.1% <0.05% <0.15% all the rest
6060 (0.3-0.6)% (0.35-0.6)% (0.1-0.3)% <0.1% <0.1% <0.15% <0.05% <0.1% <0.05% <0.15% all the rest

T5: After extruding aluminum profiles from the extruder, the temperature is rapidly reduced by air cooling to meet the required hardness (8 to 12 degrees Webster).

T6: After extruding aluminum profiles from the extruder, then cooled by water to achieve higher hardness (over 13.5 Webster’s).

0.9mm Sand Blasting Aluminum Solar Panel Frame Extruded

0.9mm Sand Blasting Aluminum Solar Panel Frame Extruded

0.9mm Sand Blasting Aluminum Solar Panel Frame Extruded

0.9mm Sand Blasting Aluminum Solar Panel Frame Extruded

0.9mm Sand Blasting Aluminum Solar Panel Frame Extruded

Trade informations:

Shipping port

Shanghai/Nanjing/Wuhu Port
Type of shipping

Shipment by sea or river; by road; by train; multi-transportation.
Payment

30% down payment by T/T and rest beforoe shipment.

30% down payment by T/T and rest after BL copy.

Or L/C or we can discuss.
Shipping Term FOB, CIF or discussed

EXHIBITIONS AND OVERSEA MARKETS:

0.9mm Sand Blasting Aluminum Solar Panel Frame Extruded

Africa: 40%

Algeria, Egypt, Libya, Ethiopia, Senegal, Nigeria, South Africa
Europe: 10%

Italy, Germany, Finland, Ukraine, Cyprus
America: 30%

Mexico, Brazil, The United States,Colombia, Venezuela, Argentina,
Asia: 20%

India, Philippines, Vietnam, Thailand, Malaysia, Singapore, Palestine
