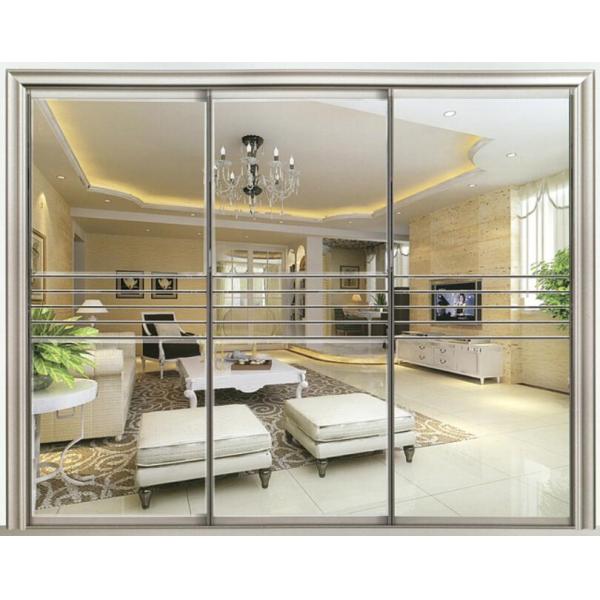

2mm 6005 Anodized Champagne Aluminium Sliding Patio Doors Foldable
2mm 6005 Anodized Champagne Aluminium Sliding Patio Doors Foldable
2mm 6005 Anodized Champagne Aluminium Sliding Patio Doors Foldable
2mm 6005 Anodized Champagne Aluminium Sliding Patio Doors Foldable
2mm 6005 Anodized Champagne Aluminium Sliding Patio Doors Foldable
2mm 6005 Anodized Champagne Aluminium Sliding Patio Doors Foldable
Specifications
Brand Name :
Huilv
Model Number :
HL
Certification :
ISO9001:2008/ ISO14001:2004/ OHSAS 18001:1999/PPG/TUV/CE
Place of Origin :
China
MOQ :
300KG
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
50000Tons/Year
Delivery Time :
Within 5-15 working days
Packaging Details :
Standard packing: *Transparent protection film, or cotton paper to protect each piece. *Transparent PE film outside each bundle/or Kraft paper. *Small profile to be inserted into bigger ones to save space EP paper inside for each piece then shrink paper
Product name :
AA15 anodized champagne indoor lightweight aluminum alloy door
Profiles material :
6063, 6061, 6005, 6060
Profiles thickness :
2mm or customized
Temper :
T5, T6
Glass material :
lightweight, safety glass
Colour :
customized
Anodizing layer :
10um, 15um, 20um
Origin :
Anhui, China
Installation :

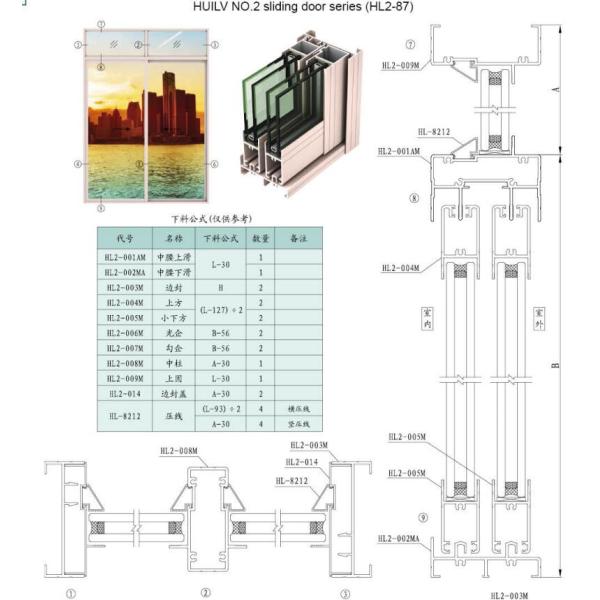

Assembly diagram
Warranty :
10 years
Description

PRODUCTS DETAILS:

Surface Treatment: mill finish,powder coating,anodize,polish,electrophoresis,wood color


Film Thickness:

 8-25um for anodize, 40-120um for powder coating


Material/ Temper


6063, 6061, 6005, 6060 /T5 T6
Profiles frame thicknes


2mm or customized

Color

 Anodizing colors silver(Matte), Champagne(Matte) ,bronze(Matte), black(Matte) etc. and other colors for other surface treatment
Payment TT/LC


Certification


ISO9001, ISO14001, SONCAP, CIQ,COC


Standard


GB/T5237-2017, JISH4100/8601/8602, QUOLANOD
Supply Ability


50,000Ton/ Year


Delivery Detail


7~10 days for molds and 10-25 days for a 40' HQ container



2mm 6005 Anodized Champagne Aluminium Sliding Patio Doors Foldable
2mm 6005 Anodized Champagne Aluminium Sliding Patio Doors Foldable

Materials:

Aluminium Alloy minerals content: 6063, 6061, 6005, 6060 Thermal Treatment: T3-T6

Alloy Si Fe Cu Mn Mg Cr Zn Ti Other Impurity Al
Unit Total
6063 (0.2-0.6)% <0.35% <0.1% <0.1% (0.45-0.9)% <0.1% <0.1% <0.1% <0.05% <0.15% all the rest
6061 (0.4-0.8)% 0.7% (0.15-0.4)% <0.15% (0.8-1.2)% (0.04-0.35)% <0.25% <0.15% <0.05% <0.15% all the rest
6005 (0.6-0.9)% <0.35% <0.1% <0.1% (0.4-0.9)% 0.1% <0.1% <0.1% <0.05% <0.15% all the rest
6060 (0.3-0.6)% (0.35-0.6)% (0.1-0.3)% <0.1% <0.1% <0.15% <0.05% <0.1% <0.05% <0.15% all the rest


T5: After extruding aluminum profiles from the extruder, the temperature is rapidly reduced by air cooling to meet the required hardness (8 to 12 degrees Webster).
T6: After extruding aluminum profiles from the extruder, then cooled by water to achieve higher hardness (over 13.5 Webster’s).

Advantages:

1. High corrosion resistance, high weather resistance and good wear resistance


2. Excellent material for smooth and subtle edges, elegant appearance.


3. Lower cost.Metallic Powder Coating Colors.


4. Various colors are available,White,Beige,Red,Green,Blue,Brown,Bronze,Grey,Black,etc..


5. Millions of different use,etc.


6. Coated with Matt Surface.


7. Coated Gloss Surface.

EXHIBITIONS:

2mm 6005 Anodized Champagne Aluminium Sliding Patio Doors Foldable

Trade informations:

Shipping port

Shanghai/Nanjing/Wuhu Port
Type of shipping

Shipment by sea or river; by road; by train; multi-transportation.
Payment

30% down payment by T/T and rest beforoe shipment.

30% down payment by T/T and rest after BL copy.

Or L/C or we can discuss.
Shipping Term FOB, CIF or discussed
