DIN AMA T8 Thickness 5mm Aluminium Alloy Windows
DIN AMA T8 Thickness 5mm Aluminium Alloy Windows
DIN AMA T8 Thickness 5mm Aluminium Alloy Windows
DIN AMA T8 Thickness 5mm Aluminium Alloy Windows
Specifications
Brand Name :
Huilv
Model Number :
HL
Certification :
ISO9001:2008/ ISO14001:2004/ OHSAS 18001:1999/PPG/TUV/CE
Place of Origin :
China
MOQ :
300Kg
Payment Terms :
D/A, L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability :
50000Tons/Year
Delivery Time :
Within 5-15 working days
Packaging Details :
Standard packing: *Transparent protection film, or cotton paper to protect each piece. *Transparent PE film outside each bundle/or Kraft paper. *Small profile to be inserted into bigger ones to save space EP paper inside for each piece then shrink pape
Product name :
DIN AMA T8 Thickness 5mm Aluminium Alloy Windows
Grade :
6063 6005 6005A 6061
Temper :
T3-T8
Application :
Door & Window
Sample :
Freely
Standard :
DIN AMA, GB5237-2008
Certificate :
ISO9001/14001 OHSAS18001
Tolerance :
±1%
Description

DIN AMA T8 Thickness 5mm Aluminium Alloy Windows

Material 6000 Series aluminum alloy T3-T8
Thickness

General profiles thickness: 0.8 - 5.0 mm;

Anodized protection thickness: 8 - 25 um;

Powder coating color thickness: 40 - 120 um.
Length Customized request available.
Shape

Square, Rectangle, Round, Flat, Angle, T profile etc.

Or as per customer's requirement.
Color Metal silver, champagne, black, white, mirror, customized request available.
Application Windows and doors, curtain walls, glass wall, furniture, ceiling,sunroom, green house, rack, handrails, formwork, kitchen, LED strip, transportation rail, vehicles, motor housing, machine, tent, solar. Industrial profile, Decoration profile etc.
Deep Process CNC, drilling, milling, cutting, welding, bending, assembling.
Production Capacity 50000 tons annually.
OEM service Available
Characteristics Strong, stylish, durable, corrosion-resistant.
Packing Details

Inside: packed with plastic film to protect each piece

Outside: Wrap to be bundles by waterproof craft paper or EPE film.

Customized as customers request is available.
Delivery 10- 15 days after receiving the advance payment

Chemical Composition

Alloy Chemical Composition
Si Fe Cu Mn Mg Cr Zn Ti Others Al(Min)
6005 0.6-0.9 0.35 0.1 0.1 0.4-0.6 0.1 0.1 0.1 0.15 rest
6063 0.2-0.6 0.35 0.1 0.1 0.45-0.9 0.1 0.1 0.1 0.15 rest
6061 0.4-0.8 0.7 0.15-0.4 0.15 0.8-1.2 0.04-0.35 0.25 0.15 0.15 rest

Mechanical Properties

Alloy Temper Thickness T.S. Y.S ELOG. Hardness
σb (MPa) σ0.2 (MPa) δ% HV HW
6005 T5 ≥ 0.8 ≥260 ≥240 ≥10 ≥85 ≥15

6063

 T4 ≥ 0.8 ≥130 ≥65 ≥12 - -
T5 ≥ 0.8 ≥160 ≥110 ≥8 ≥58 ≥8
T6 ≥ 0.8 ≥205 ≥180 ≥8 ≥65 ≥10
6061 T4 ≥ 0.8 ≥180 ≥110 ≥16 ≥65 ≥10
T6 ≥ 0.8 ≥265 ≥245 ≥8 ≥85 ≥15.5

Our Advantage

  • We can offer as your need.
  • Good wear and corrosion resistance
  • Surface Finish: Anodized, Powder Coating or as your requested
  • Smoothness, attractive and elegant looking to meet your perferences
  • We previde One Package Service: Extruding,Milling, Drilling, Precise Cutting,Special surface treatment and packing,etc

Why Choose us?

1. We provide One Package Service: Extruding,Milling, Drilling, Precise Cutting,Special surface treatment and packing,etc
2. Good wear and corrosion resistance
3. Surface Finish: Anodized, Powder Coating or as your requested
4. Smoothness, attractive and elegant looking to meet your perferences

Standard packing:

  1. Transparent protection film, or cotton paper to protect each piece.
  2. Transparent PE film outside each bundle/ or Kraft paper.
  3. Small profile to be inserted into bigger ones to save space
  4. EP paper inside for each piece then shrink paper,or carton paper then pallet,or wooden carton ect.

FAQ:

Q1: Are you a factory or trading company?

A1: We're a self -own factory, can provide one-stop service for our customer, from materials to various surface treatments, and from technical sales to shipping and to after-sales, so we can save the cost for client, control the quality and lead time, provide the best services .

Q2: What's the production time for new molds and mass production?

A2: 7-10 days to open the new molds, mass production takes around 10-15days for one 20 GP, 15-20days for one 40HQ, can process urgently if need.

Q3: What is the payment term?

A3: Telegraphic Transfer (T/T) and Letter of Credit (L/C) are acceptable.

Q4: Can you send me samples?

A4: Yes, please feel free to contact us via email or phone with them.

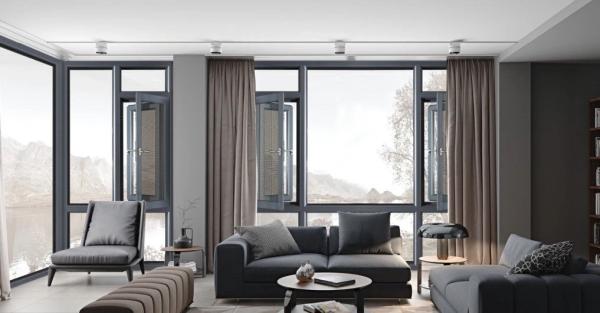

Detailed Images
DIN AMA T8 Thickness 5mm Aluminium Alloy Windows
DIN AMA T8 Thickness 5mm Aluminium Alloy Windows
