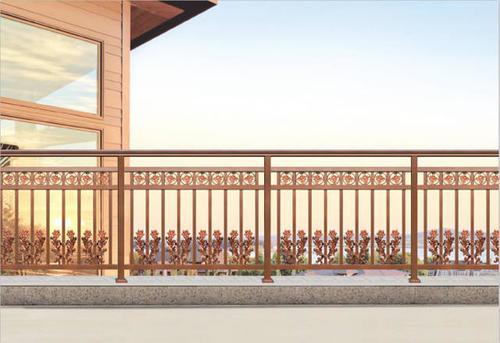

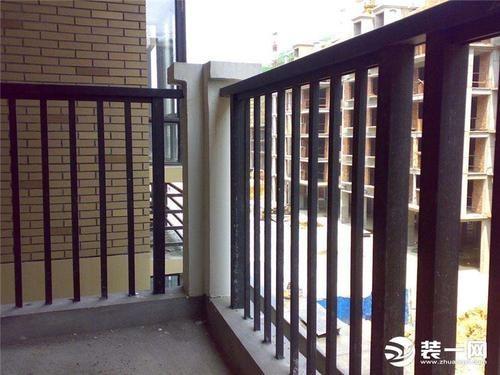

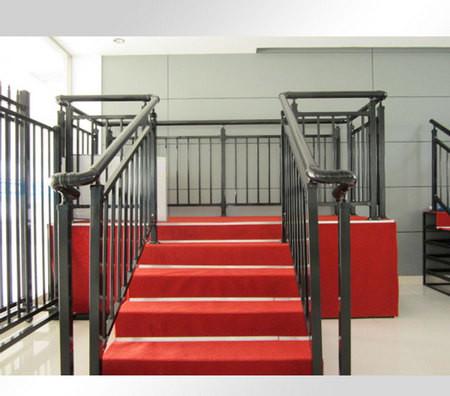

Wooden Grain Transfer Guardrail Powder Coated Aluminum Profile
Wooden Grain Transfer Guardrail Powder Coated Aluminum Profile
Wooden Grain Transfer Guardrail Powder Coated Aluminum Profile
Wooden Grain Transfer Guardrail Powder Coated Aluminum Profile
Wooden Grain Transfer Guardrail Powder Coated Aluminum Profile
Wooden Grain Transfer Guardrail Powder Coated Aluminum Profile
Specifications
Brand Name :
Huilv
Model Number :
HL-80
Certification :
ISO9001:2008/ ISO14001:2004/ OHSAS 18001:1999/PPG/TUV/CE
Place of Origin :
China
MOQ :
300Kg
Payment Terms :
D/A, L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability :
50000Tons/Year
Delivery Time :
Within 5-15 working days
Packaging Details :
Standard packing: *Transparent protection film, or cotton paper to protect each piece. *Transparent PE film outside each bundle/or Kraft paper. *Small profile to be inserted into bigger ones to save space EP paper inside for each piece then shrink pape
Product name :
Wooden Grain Transfer Guardrail Powder Coated Aluminum Profile
Temper :
T3-T8
Shape :
Customized
Surface treatment :
Powder Coated, Anodizing, Wood Transfer, Electrophoresis and so on
Color :
black, Silver, bronze, White, Champagne etc.
Material :
Aluminum Alloy
Sample :
Freely
Thickness :
0.8mm~5mm
Standard :
DIN AMA, GB5237-2008
Certificate :
ISO9001/14001 OHSAS18001
Description

Wooden Grain Transfer Guardrail Powder Coated Aluminum Profile

1. Materials

Aluminium Alloy: 6063, 6061, 6005, 6060 Thermal Treatment: T5, T6

Chemical Composition

Alloy Chemical Composition
Si Fe Cu Mn Mg Cr Zn Ti Others Al(Min)
6005 0.6-0.9 0.35 0.1 0.1 0.4-0.6 0.1 0.1 0.1 0.15 rest
6063 0.2-0.6 0.35 0.1 0.1 0.45-0.9 0.1 0.1 0.1 0.15 rest
6061 0.4-0.8 0.7 0.15-0.4 0.15 0.8-1.2 0.04-0.35 0.25 0.15 0.15 rest

Mechanical Properties

Alloy Temper Thickness T.S. Y.S ELOG. Hardness
σb (MPa) σ0.2 (MPa) δ% HV HW
6005 T5 ≥ 0.8 ≥260 ≥240 ≥10 ≥85 ≥15

6063

 T4 ≥ 0.8 ≥130 ≥65 ≥12 - -
T5 ≥ 0.8 ≥160 ≥110 ≥8 ≥58 ≥8
T6 ≥ 0.8 ≥205 ≥180 ≥8 ≥65 ≥10
6061 T4 ≥ 0.8 ≥180 ≥110 ≥16 ≥65 ≥10
T6 ≥ 0.8 ≥265 ≥245 ≥8 ≥85 ≥15.5

2. Section Shapes

I, U, T, C, Z, L, H, square, round, flat, hollow, t-slot, and other complicated shapes by custom design.

3. Surface treating

Mill / Anodizing (oxidation) / Sand blasting / Powder Coating / Electrophoresis / PVDFCoating / Wood effect.

4. Machining

Cutting,punching,drilling,milling,bending,welding

5. Series

(1) Aluminum heat sink/radiator series

(2) Square tube, round tube, channel aluminum angle aluminum and aluminum bar series

(3) Solar photovoltaic battery aluminum frame series

(4) Industrial assembly series and fittings

(5) Electrical sliding line series

(6) Aluminum door and window, decorate aluminum series

(7) Aluminum profile for flooring/Kitchen

(8) Aluminum T-slot

6. Characteristics

Material alloy 6063 6005 6060 6061
Temper T5, T6
Surface treatment anodizing, powder coating, wooden grain, sand blasting etc.
Color any color is available; just bring us your color sample or color number
Style and size customized
Deep processing extrude, precious cut, punch, drill, tap, mill, rivet, weld etc.
Extruding machine 600-2500tons
Minimum order 300kg for 6063, others to be 5-10 tons
Price term aluminum profile price calculated by ton. FOB SHANGHAI
Quality High corrosion resistance, high weather resistance and excellent wear resistance
Price The price differs according to the customized surface treatment.
Certificates ISO9001-2008 Quality System and ISO14001-2004 Environment System, BV, Rohs
Standard of Quality According to the standard of China “GB/T6892-2006 High Degree Standard" or “GB/T5237-2000”
Type With 25 years’ experience, we are able to produce any type of aluminium profile you need
Widely usage Widely used in construction, decoration and varied industry fields
Annual output 40000-50000 metric tons’ aluminium extrusion

FAQ:

How to confirm the order? 1.receive your samples.
2.make the drawings according to your samples.
3.confirm the drawing with you .
4.make the payment of the die .
5.make the die and produce mill finish typed samples and send back to you.
6.start to produce the product after the samples have been confirmed and 30% deposit have be paid.
How long is your delivery time? Depend on the quality you ordered, usually takes 10--20 working days for the 40 feet container.
What is your terms of payment ? Payment by TT or LC, 30% advanced of the order and the 70% be paid against BL COPY.

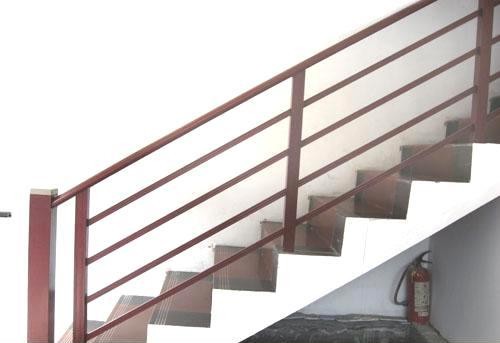

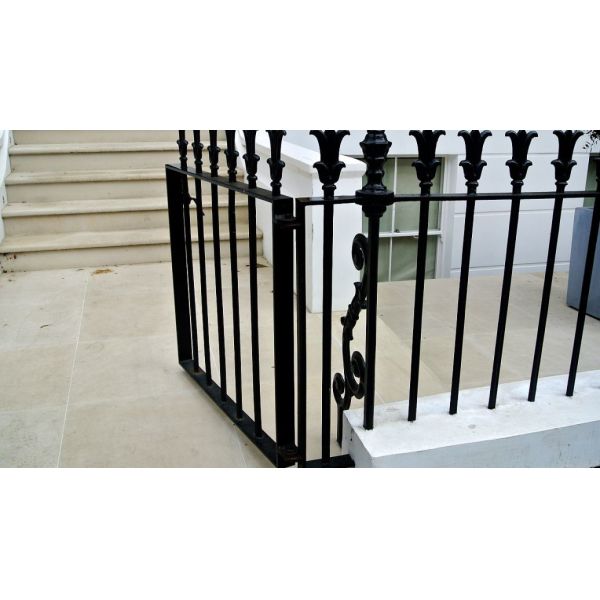

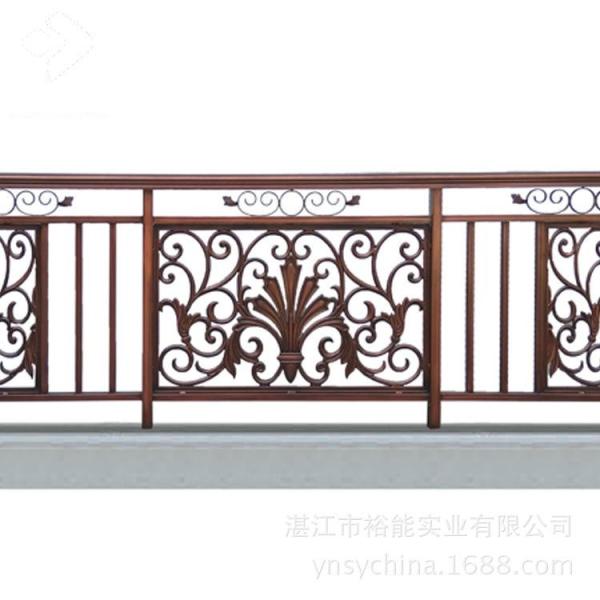

Detailed Images
Wooden Grain Transfer Guardrail Powder Coated Aluminum ProfileWooden Grain Transfer Guardrail Powder Coated Aluminum ProfileWooden Grain Transfer Guardrail Powder Coated Aluminum Profile
