Specifications
Brand Name :
MEPER
Model Number :
MP110FD
Place of Origin :
China
Certification :
CE/ISO9001:2008
MOQ :
1 set
Price :
negotiable
Packaging Details :
standard packaging
Delivery Time :
25-35 work days
Payment Terms :
L/C, T/T
Supply Ability :
100 sets per month
Platen opening strokes :
450-1050MM
Plate stroke :
750mm
Machine weight :
28ton
Mould clamping force :
300KN
Max product volume :
50L
Number of heads :
1 SET
Applicable materials :
PE PP
Machine dimension (LxWxH) :
6X7X4M
Description

Product Description:

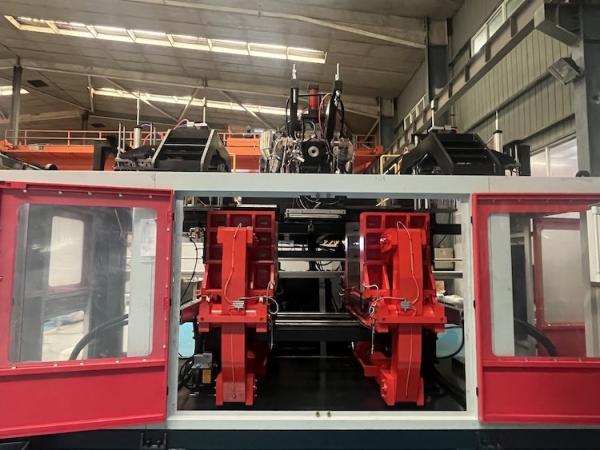

The MP plastic blow molding machine is designed for processing various types of plastic hollow products with high molecular weight. It is capable of producing hollow items ranging from 5 milliliters to 100 liters in size. These products encompass a wide range of items such as bottles, pots, jars, barrels, toys, tool boxes, bed boards, desk boards, chairs, and auto parts. The machine has the ability to blow different materials including PE, PP, PVC, PA, PC, PS, and EVA, ensuring a perfect manufacturing process.
Among the products that can be produced with this machine are bottles, pots, jars, barrels, toys, tool boxes, bed boards, desk boards, chairs, and

SystemItemUnitBasic Parameter

Basic specifications


Applicable materials PE PP
Max product volumeL50
Number of headsSET1

Machine dimension

(LxWxH)

M6X7X4
Machine weightTON28

Mould clamping system

Mould clamping forceKN300
Platen opening strokesMM450-1050
Plate strokeMM750
Max mould sizes(WxH)MM720x750

Extrusion system

Screw diameterMM11025
Screw slenderness ratioL/D2622
Plasticizing ability (HDPE)KG/H2183
Screw heating stage/zoneZone52
Screw heating powerKW211.4
Screw fan powerKW0.56
Extrusion motor powerKW94.21.5


Head

Head heating stage/zoneZone7
Head heating powerKW25



Energy consumption

Total machine powerKW200
Oil motor powerKW37
Air pressureMPA0.6-1
Compression air volumeM3/min3
Cooling water volumeL/min1000

Applications:

Extrusion Molding Applications

Extrusion molding machines are widely utilized in manufacturing to create continuous profiles with a fixed cross-section. They find extensive applications across various industries:

Plastic Industry
  • Pipes & Tubes – PVC, HDPE, and PP pipes for plumbing, drainage, and electrical conduits.
  • Sheets & Films – Packaging films, agricultural films, and thermoforming sheets.
  • Profiles – Window frames, door seals, and decorative trims.
  • Filaments & Fibers – Synthetic fibers for textiles, ropes, and 3D printing filaments.
  • Cables & Wires – Insulation coating for electrical wires and cables.
Rubber Industry
  • Tire Manufacturing – Rubber strips for tire treads and sidewalls.
  • Seals & Gaskets – Automotive and industrial rubber seals.
  • Hoses & Tubing – Fuel hoses, hydraulic tubes, and medical tubing.
Food Processing
  • Extruded Snacks – Puffed cereals, pasta, and pet food.
  • Confectionery – Licorice, chewing gum, and candy bars.
  • Textured Protein – Plant-based meat alternatives.
Pharmaceutical Industry
  • Drug Delivery Systems – Extruded tablets and biodegradable implants.
  • Medical Tubing – Catheters and IV tubes.
Construction & Building Materials
  • Decking & Fencing – Composite wood-plastic profiles.
  • Insulation Materials – Foam boards and weather stripping.
  • Aluminum Extrusions – Structural frames, railings, and heat sinks.
Automotive & Aerospace
  • Lightweight Components – Plastic and composite trim parts.
  • Rubber & Plastic Seals – Door seals, gaskets, and vibration dampers.
  • Fuel Lines & Ducts – High-temperature-resistant tubing.
Recycling & Sustainability
  • Recycled Plastic Products – Turning post-consumer plastics into new profiles.
  • Biodegradable Materials – Extruding PLA (polylactic acid) for eco-friendly packaging.
Advantages of Extrusion Molding
  • High Efficiency – Continuous production with minimal downtime.
  • Versatility – Ability to process various materials (plastics, rubber, food, etc.).
  • Cost-Effective – Low waste and high-volume output.
