Cosmetics 5L Extrusion Blow Molding Machine for PP PE
Cosmetics 5L Extrusion Blow Molding Machine for PP PE
Specifications
Brand Name :
MEPER
Model Number :
MP70D-1
Certification :
CE/ISO9001:2008
Place of Origin :
CHINA
MOQ :
1 set
Price :
Price negotiation
Payment Terms :
L/C, T/T
Supply Ability :
10 sets per month
Delivery Time :
25-35 work days
Packaging Details :
Standard export package wooden pallet(standard) wooden case(optional)
Container Capacity :
Customize size
Defleshing system :
Yes
VIew strip :
Yes
Fast cycle :
Yes
PLC :
Techmation
Type :
tie bar
Description

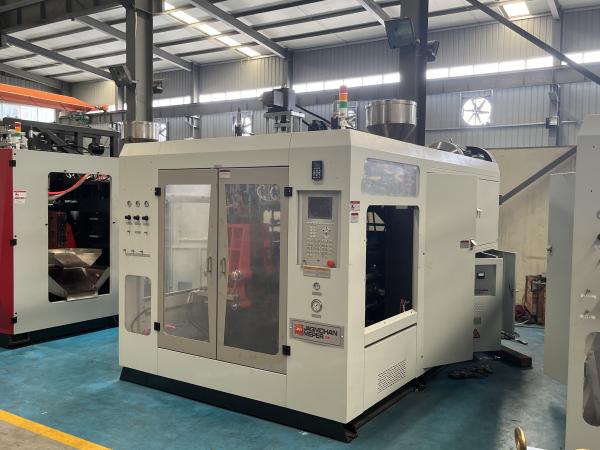

Double station extrusion blow moulding machine max production volume 5L model MP70D-1 for Disinfectant Products

Brief introduction

MP70D Adopt hydraulic system drive,linear transducer movement for carriage up and down,fully automatic lubrication system with self-detector function.This model is popular use for small products below 5L.

Leading Manufacturers:

  • Bekum (Germany) – Heavy-duty and high-speed EBM machines.

  • Kautex (Germany) – Known for automotive and industrial blow molding.

  • Jomar (USA) – Reliable mid-range machines.

  • Tech-Long (China) – Cost-effective solutions.

  • Shibaura Machine (Japan) – Precision EBM systems.

PARAMETERS MP70D-1 φ70
SPECIFICATIONS
material PP.PE
MAX container capacity L 5
number of die Set 1
machine dimension(L×W×H) M 3.6×2.2×2.36
total weight Ton 5.5
CLAMPING
clamping force KN 90
platen opening strokes mm 180-480
toggle stroke mm 300
Max mould size(W×H) mm 430×370
EXTRUDER UNIT 　
screw diameter mm 70
screw L/D ratio L/D 24
(HDPE)plasticizing capacity kg/h 75
screw heating zone zone 3
screw heating power kw 12.7
fan power kw 0.28
extruder driving power kw 18.5
DIE HEAD 　
die head heating zone zone 3
power of die heating kw 8
ENERGY-CONSUMPTION 　
power of the electric motor kw 9.5
air pressure Mpa 0.6-0.8
total power of machine kw 48.98
average energy consumption kw 24
compression air consumption m3/min 1
cooling water consumption L/minv 30

Advantage:

1. Most important for a good EBM machine is the action system and the extrusion system.

we'r using powerful hydraulic system design with imported valve and pump for stable action

Adopt China famous brand Gearbox along with Delta extrusion motor ,make sure machine runs continiously,long life

2. Heavy and stong structure,make sure machine works more faster and stable.

3. Special care for different countries.

we offer some special design for different countries,in order to matching best performance.

4. Defleshing function included
