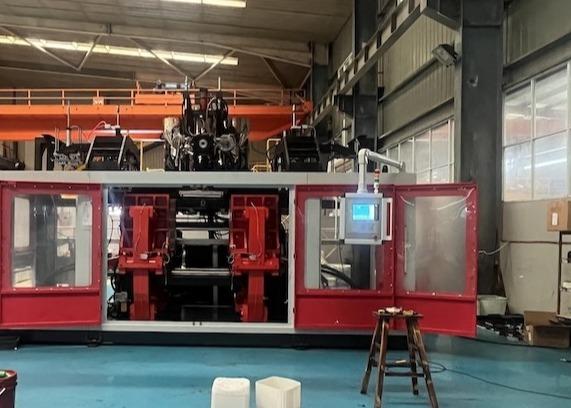

1 Set Head MP110FD PE Extrusion Blow Moulding Machine
1 Set Head MP110FD PE Extrusion Blow Moulding Machine
Specifications
Brand Name :
MEPER
Model Number :
MP110FD
Certification :
CE/ISO9001:2008
Place of Origin :
China
MOQ :
1 set
Price :
negotiable
Payment Terms :
L/C, T/T
Supply Ability :
100 sets per month
Delivery Time :
25-35 work days
Packaging Details :
standard packaging
Machine weight :
28ton
Applicable materials :
PE PP
Plate stroke :
750mm
Number of heads :
1 SET
Max product volume :
50L
Platen opening strokes :
450-1050MM
Machine dimension (LxWxH) :
6X7X4M
Mould clamping force :
300KN
Description

Product Description:

The MP Plastic Blow Molding Machine is designed for processing various plastic hollow products made from high molecular materials. This machine is capable of producing hollow items ranging in size from 5 milliliters to 100 liters. The wide array of products that can be manufactured includes bottles, pots, jars, barrels, toys, tool boxes, bed boards, desk boards, chairs, and auto parts, among others.

One of the key features of this machine is its ability to work with a variety of materials such as PE, PP, PVC, PA, PC, PS, and EVA. Whether you need to blow-mold different plastic materials, this machine can deliver outstanding results. It is known for providing a perfect manufacturing process with consistent quality output.

Technical Parameters:

System Item Unit Basic Parameter

Basic specifications

 Applicable materials PE PP
Max product volume L 50
Number of heads SET 1

Machine dimension

(LxWxH)

 M 6X7X4
Machine weight TON 28

Mould clamping system

 Mould clamping force KN 300
Platen opening strokes MM 450-1050
Plate stroke MM 750
Max mould sizes(WxH) MM 720x750

Extrusion system

 Screw diameter MM 110 25
Screw slenderness ratio L/D 26 22
Plasticizing ability (HDPE) KG/H 218 3
Screw heating stage/zone Zone 5 2
Screw heating power KW 21 1.4
Screw fan power KW 0.56
Extrusion motor power KW 94.2 1.5

Head

 Head heating stage/zone Zone 7
Head heating power KW 25

Energy consumption

 Total machine power KW 200
Oil motor power KW 37
Air pressure MPA 0.6-1
Compression air volume M3/min 3
Cooling water volume L/min 1000

Applications:

Extrusion molding machines play a pivotal role in manufacturing processes by producing continuous profiles with a consistent cross-section. These machines find various applications in several industries:

1. Plastic Industry
  • Pipes & Tubes – PVC, HDPE, and PP pipes for plumbing, drainage, and electrical conduits.
  • Sheets & Films – Packaging films, agricultural films, and thermoforming sheets.
  • Profiles – Window frames, door seals, and decorative trims.
  • Filaments & Fibers – Synthetic fibers for textiles, ropes, and 3D printing filaments.
  • Cables & Wires – Insulation coating for electrical wires and cables.
2. Rubber Industry
  • Tire Manufacturing – Rubber strips for tire treads and sidewalls.
  • Seals & Gaskets – Automotive and industrial rubber seals.
  • Hoses & Tubing – Fuel hoses, hydraulic tubes, and medical tubing.
3. Food Processing
  • Extruded Snacks – Puffed cereals, pasta, and pet food.
  • Confectionery – Licorice, chewing gum, and candy bars.
  • Textured Protein – Plant-based meat alternatives.

FAQ:

Q: What is the brand name of the Extrusion Molding Machine?

A: The brand name of the Extrusion Molding Machine is MEPER.

Q: What is the minimum order quantity for the Extrusion Molding Machine?

A: The minimum order quantity for the Extrusion Molding Machine is 1 set.
