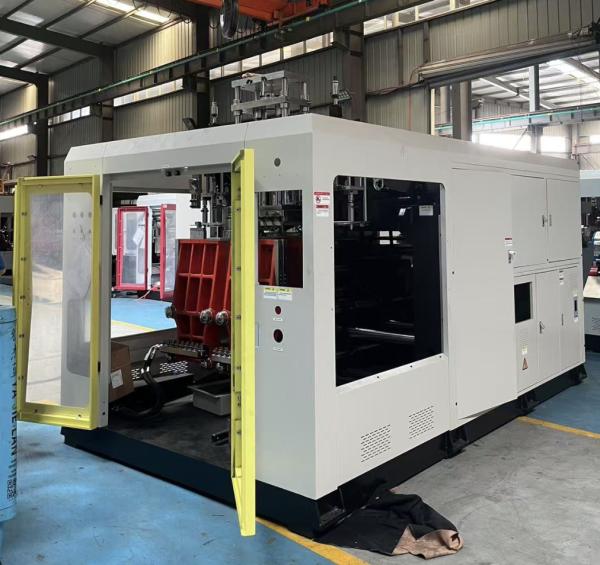

Double Station Fully Automatic Blow Moulding Machine Granules Engineered To Enhance Plastic Bottle Production Efficiency
Double Station Fully Automatic Blow Moulding Machine Granules Engineered To Enhance Plastic Bottle Production Efficiency
Specifications
Brand Name :
MEPER
Model Number :
80FD
Place Of Origin :
China
Certification :
CE/ISO9001:2008
MOQ :
1 Set
Price :
Negotiable
Packaging Details :
Standard Packaging
Delivery Time :
25-35 Work Days
Payment Terms :
L/C,T/T
Supply Ability :
100 Sets Per Month
Clamping Force :
120KN
Die Head Type :
Flat Die, Profile Die, Multi-layer Die
Station :
Double
Max Output Capacity :
50 Kg/h - 1000 Kg/h
Control System :
PLC With Touch Screen
Application :
Granules
Machine Weight :
8.2T
Max Product Volume :
10L
Description

Product Description:

The Meper80D (MP80D) extrusion blow molding machine represents a highly efficient industrial solution tailored for manufacturing plastic containers with volumes of up to 10 liters. Its versatility is evident in its compatibility with a broad spectrum of materials, including polyethylene (PE), polypropylene (PP), polyvinyl chloride (PVC), and polyamide (PA). This adaptability makes the MP80D ideal for producing packaging items, chemical storage containers, everyday-use bottles, and various industrial hollow products.

Featuring an 80mm high-performance screw, the machine delivers a plasticizing capacity of up to 90 kilograms per hour when processing high-density polyethylene (HDPE). This capacity ensures a stable melt quality throughout the operation, contributing to consistent and reliable output. Additionally, the MP80D system is designed with flexibility in mind, supporting configurations ranging from one to four heads. This multi-head capability allows for variable production scales and the use of multi-cavity molds, significantly enhancing productivity.


Technical Parameters:

Major technical parameters

System

Item

Unit

Basic Parameter

Basic specifications

Applicable materials

PE PP PVC PA…

Max product volume

L

10

Number of heads

SET

1,2,3,4

Machine dimension

(LxWxH)

M

4x2.3x2.5

Machine weight

TON

8.2

Mould clamping system

Mould clamping force

KN

150

Platen opening strokes

MM

220-620

Plate stroke

MM

540

Max mould sizes(WxH)

MM

520x460

Extrusion system

Screw diameter

MM

80

Screw slenderness ratio

L/D

24

Plasticizing ability (HDPE)

KG/H

90

Screw heating stage/zone

Zone

4

Screw heating power

KW

15.85

Screw fan power

KW

0.28

Extrusion motor power

KW

30

Head

Head heating stage/zone

Zone

3

Head heating power

KW

10

Energy consumption

Total machine power

KW

80

Oil motor power

KW

18.7

Air pressure

MPA

0.6-0.8

Compression air volume

M3/min

1.5

Cooling water volume

L/min

40


Applications:

Application Fields of Meper80D / MP80D Extrusion Blow Molding Machine

The Meper80D / MP80D extrusion blow molding machine serves a broad range of industries by enabling the production of hollow plastic containers and industrial packaging items with capacities up to 10 liters.

Daily Chemical Packaging Industry

This machine is ideally suited for manufacturing various household chemical packaging such as detergent bottles, shampoo bottles, cleaning liquid containers, disinfectant bottles, and similar items.

Food & Beverage Industry

It is excellent for producing food-grade containers, including edible oil bottles, sauce bottles, drinking water containers, and other packaging that demands safe and hygienic materials.

Pharmaceutical & Medical Packaging

The Meper80D / MP80D is utilized in the pharmaceutical sector to produce medicine bottles, disinfectant containers, and medical liquid packaging that require high precision and consistent quality.

Lubricant & Chemical Industry

It is perfectly suited for creating engine oil bottles, lubricant containers, antifreeze bottles, pesticide containers, and other chemical packaging products that need to be strong and durable.

Industrial Packaging Sector

The machine is also applicable in manufacturing industrial containers, tool bottles, automotive fluid tanks, and various functional hollow parts meant for industrial purposes.

Agrochemical & Agricultural Field

It finds wide application in producing pesticide bottles, fertilizer liquid containers, irrigation chemical containers, and packaging for agricultural solutions.

Cosmetic & Personal Care Packaging

This equipment supports the production of lotion bottles, cosmetic containers, and other personal care packaging products that require a smooth surface finish and precise shaping.

Custom Hollow Plastic Products

Additionally, it allows for customized manufacturing of various hollow plastic items such as small drums, jerry cans, and specialty containers, adapting to different mold designs as needed.


Advantages of Meper80D / MP80D Extrusion Blow Molding Machine

  • High Output Performance
    80 mm screw (L/D 24) with 90 kg/h HDPE plasticizing capacity ensures stable melt flow and continuous production.

  • Flexible Multi-Head Configuration
    Supports 1–4 die heads for multi-cavity bottle production and adjustable capacity.

  • Strong Clamping Stability
    150 kN clamping force with reinforced platen reduces flash and improves forming consistency.

  • Wide Material Compatibility
    Suitable for PE, PP, PVC, PA for bottles, containers, and industrial hollow products.

  • Precision Temperature Control
    4 screw zones + 3 head zones heating system ensures uniform melt and better surface finish.

  • Energy-Optimized Operation
    80 kW total power system with balanced heating and motor configuration.

  • Heavy-Duty Industrial Structure
    8.2-ton machine weight ensures low vibration and stable long-term operation.
