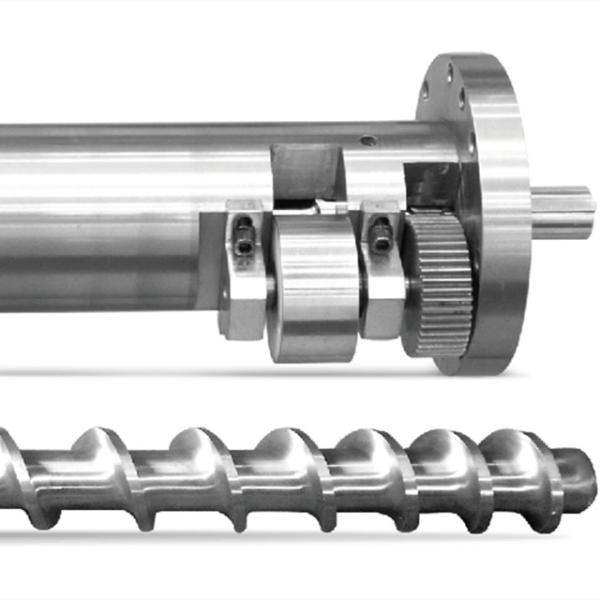

Customized Bimetallic Screw Barrel Ø15-Ø300 For Plastic Extrusion And Recycling Machine
Customized Bimetallic Screw Barrel Ø15-Ø300 For Plastic Extrusion And Recycling Machine
Specifications
Brand Name :
ALVEN
Model Number :
BIMETALLIC03-19
Place of Origin :
ZHEJIANG CHINA
MOQ :
1 SET
Price :
3000USD
Payment Terms :
T/T,D/P
Delivery Time :
30 DAYS
Packaging Details :
Be wrapped with film in wooden cases
material :
38CrMoAIA,SACM645,42CrMo,AISI4140
weight (kg) :
350
warranty :
12 months
place of origin :
Zhejiang, China
video outgoing-inspection :
Provided
machinery test report :
Provided
key selling points :
Long Service Life
Nitriding hardness :
HV950-1050
Description

Customized Bimetallic Screw Barrel For Plastic Extrusion And Recycling Machine

Technical Parameters:

Diameter: Ø15-Ø300

L/D ratio:15-55

Or other according to requirement, we are rich experience in producing and designing!

Product

Plastic extruder screws barrels

Material

38 CrMoAlA(JIS SACM645); 42 CrMo(AISI 4140)
Cr12MoV(JIS SKD-11);4Cr5MoSiV1(JIS SKD-61)

Nitrided Hardness

HV900°~1000°

Hardness after hardening and tempering

HB260 °

Nitrided Depth

0.5~0.7mm

Nitrided Brittleness

above 2 stage

Surface Roughness

Ra0.4

Screw straightness

0.015mm

Hardess of surface chromium-plating after Nitriding

HV≥950HV

Chromium plating Depth

0.05~0.10mm

Alloy Depth

0.8~3.0mm

Alloy hardness

HRC56°~65°

Alloy(bimetallic)

iron,nickel,tungsten,molybdenum

Types of screw barrel

Gradual type,mutant type,wave type,barrier type,double screen type,shunt type,separation type,exhaust type,pin type,mixed type,double-head type,three-head type,multi head type etc.

Scope of application

WPC sheet,pallets,pinch,pipe,profiles,soft pvc,pvc foam sheet,film,tape,recycled,tape tube,water pipe,drainage pipe,etc.

For good plasticizing effect,we have different designs of screw and barrel for extruder or injection to meet customer's demand.Our factory manufactures with high-quality material, applying the method of hardening and tempering and nitriding, thus it enjoys the characteristics of long working life, wear resistance, and anti corrosion. Besides, the technique of hard alloy spraying or chrome plating can be used on the working surface of screw, which will make it have better using effectiveness.

FAQ

Our advantages:

1. Screw and barrel for various models

2. Professional engineers design for you

3. Over 20-year exprience in this line

4. Insist on developing screw and barrel for more injection and extruder machine models

5. Main market: Southeast Asia,Eastern Europe, South America,Africa
