Our company is a professional manufacturer of refrigerator door seal production line, with more than 20 years of production and development experience.

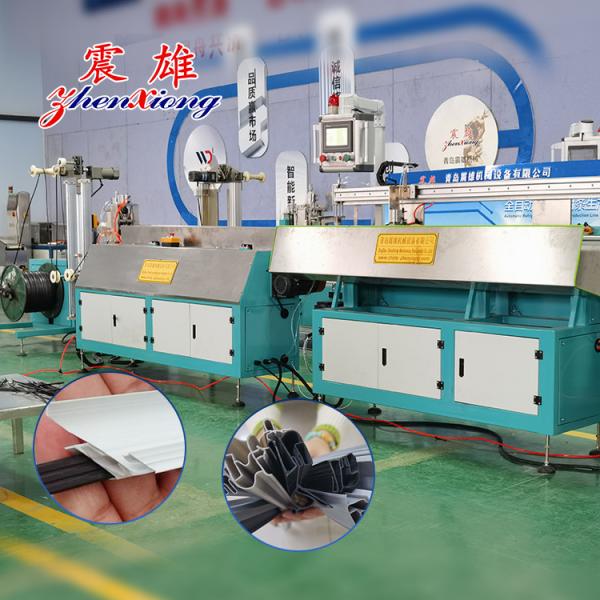

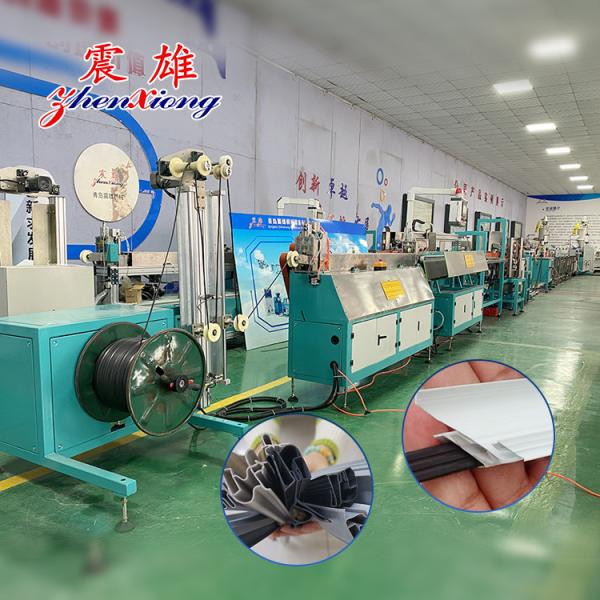

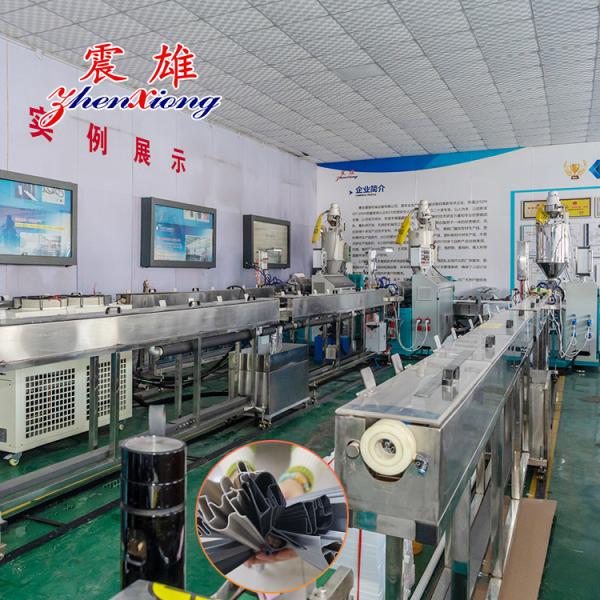

Online magnetic strip refrigerator door seal production line integrates door seal production, automatic punching, 45° cutting Angle, online magnetic strip in one, to achieve door seal online magnetic strip, the whole line to achieve automated production, the whole line only 1 person operation, saving labor, production efficiency greatly improved.
Core advantage:

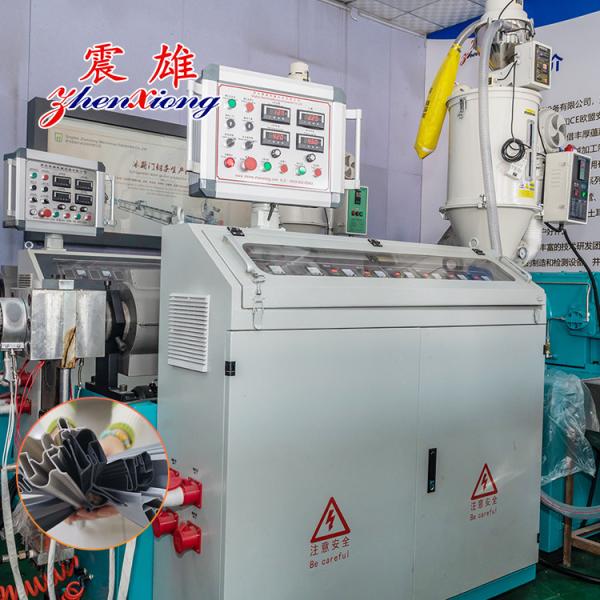

- SJ75 extruder, equipped with PVC professional separation screw, high production capacity and good plasticizing effect.
- The head mold of online magnetic strip refrigerator door gasket production line is made of 40Cr mold steel, tempered and forged, with high strength, wear resistance and high mold precision.
- Equipped with 5P air-cooled chiller, the products are fully and quickly cooled, and the cooling water temperature can be manually adjusted and controlled according to needs.
- online through the magnetic stripe refrigerator door seal production line with automatic drying and feeding machine, overload, shortage of automatic alarm, reduce labor costs;
- Two cooling sinks, each 4 meters, cooling water length, using circulating water spray cooling, rapid and uniform cooling, good product shaping effect.
- Traction speed is controlled by inverter, with pneumatic cutting device, cutting length size is adjustable.

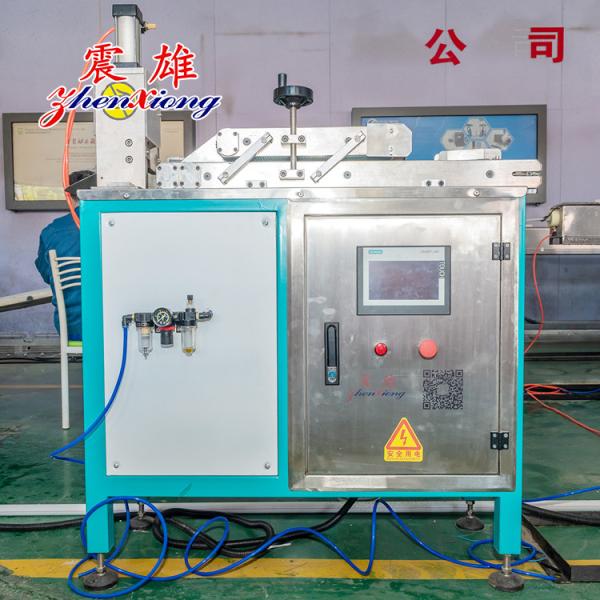

- Online magnetic stripe refrigerator door seal production line 45° automatic cutting machine, can cut both ends of the rubber strip into 45º Angle, cutting accuracy ±1mm.
- The magnetic strip length ranges from 180-1800mm, with high magnetic penetration accuracy.
Online magnetic strip refrigerator door seal production line - product application range:
The products manufactured by the online magnetic strip refrigerator door gasket production line feature a smooth surface free of burrs. They possess strong magnetism, ensuring excellent sealing performance. These gaskets are highly resistant to both high and low temperatures. Even after long-term use, they are not prone to aging or deformation.
These gaskets find extensive application in a wide variety of industrial products. They are commonly used in different types of refrigerators, freezers, water dispensers, beverage cabinets, disinfection cabinets, kitchen utensils, profile doors and windows, as well as various daily products. Their reliable performance and durability make them an ideal choice for ensuring proper sealing and functionality in these diverse applications.
| Model | SJ75 | Voltage | 380V 50HZ |
| Automated | Yes | Applicable Raw Materials | PVC Granules or Powders |
| Control System | PLC | Dimensions | 33000x1500x1800mm |
| Weight | 4 T | Length range of magnetic stripe | 180-1800 mm |
