Fast Door Gasket Production Line Accurate Double Corner Automatic Welding Machine
Fast Door Gasket Production Line Accurate Double Corner Automatic Welding Machine
Fast Door Gasket Production Line Accurate Double Corner Automatic Welding Machine
Fast Door Gasket Production Line Accurate Double Corner Automatic Welding Machine
Fast Door Gasket Production Line Accurate Double Corner Automatic Welding Machine
Fast Door Gasket Production Line Accurate Double Corner Automatic Welding Machine
Fast Door Gasket Production Line Accurate Double Corner Automatic Welding Machine
Fast Door Gasket Production Line Accurate Double Corner Automatic Welding Machine
Fast Door Gasket Production Line Accurate Double Corner Automatic Welding Machine
Fast Door Gasket Production Line Accurate Double Corner Automatic Welding Machine
Fast Door Gasket Production Line Accurate Double Corner Automatic Welding Machine
Fast Door Gasket Production Line Accurate Double Corner Automatic Welding Machine
Specifications
Brand Name :
QingDao Zhenxiong
Model Number :
SJHJ
Certification :
CE certification
Place of Origin :
Qingdao,China
MOQ :
1 set
Price :
6000 - 6500USD per set
Payment Terms :
L/C,T/T
Supply Ability :
20 sets per month
Delivery Time :
15 - 25 working days
Packaging Details :
After being wrapped with stretch film , it is shipped unpacked in the container .
Dimension :
1840 * 1300 * 1220 mm
Warranty :
1 year
Features :
can weld dual angles at once
Total system power :
2.1 kW
Description

Welding Fast Door Gasket Production Line Accurate Double Corner Welding Safety Protection Device

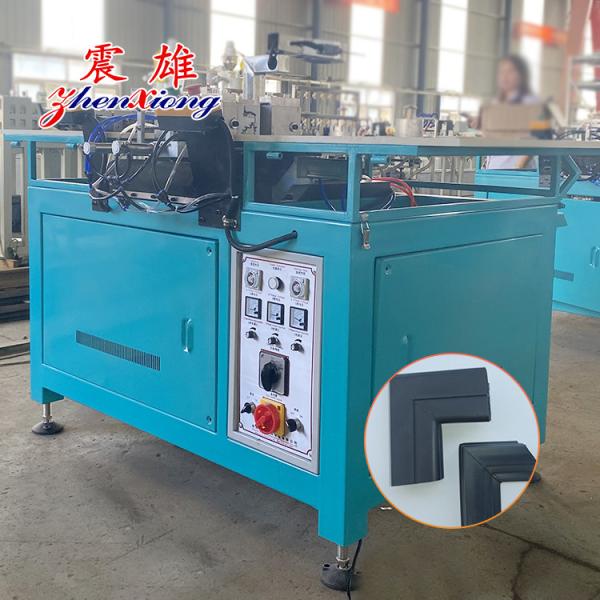

This fully automatic double angle welding machine is mainly used for welding sealing strips at a 90 ° angle. Adopting advanced programmable control technology, welding accuracy is high and efficiency is high. Can weld double corners at once, greatly increasing production capacity.

Core advantages:

  • The fully automatic double angle welding machine adopts a PLC automatic control system, with stable program, high control accuracy, and guaranteed welding quality.
  • Double hole fully automatic welding equipment, automatic cleaning of weld beads, saving labor costs.

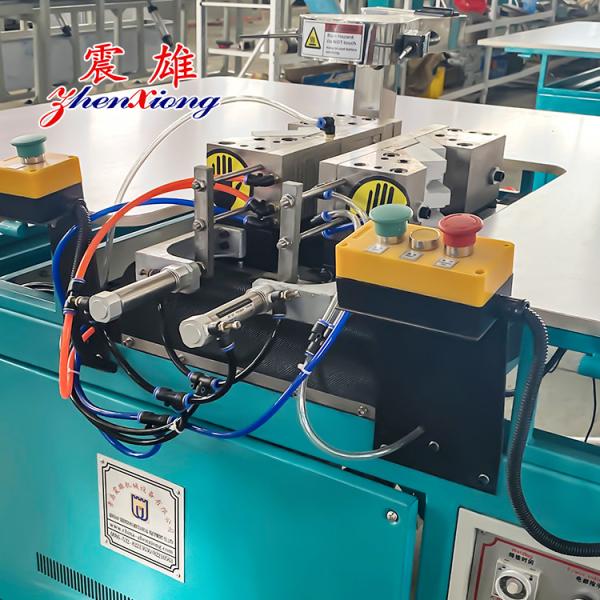

  • The fully automatic double angle welding machine mold and fixture are divided into upper and lower layers, which can weld double angles at once, doubling the production capacity.
  • Install a photoelectric protector in front of the mold, using a dual hand start button and HZ12-25 cut-off switch to prevent electric shock.
  • The production capacity of fully automatic double angle welding machine can reach 600-650 sets/shift, with high welding efficiency.
  • Adopting branded electrical components: PLC control system and photoelectric switch (Omron), pneumatic components (SXPC) to ensure stable operation of the equipment.
  • The welding strength is sufficient, the product can withstand high pressure, and is not easily deformed.
  • High welding quality, flat, firm, and beautiful welding corners

Application scope of fully automatic double angle welding machine:

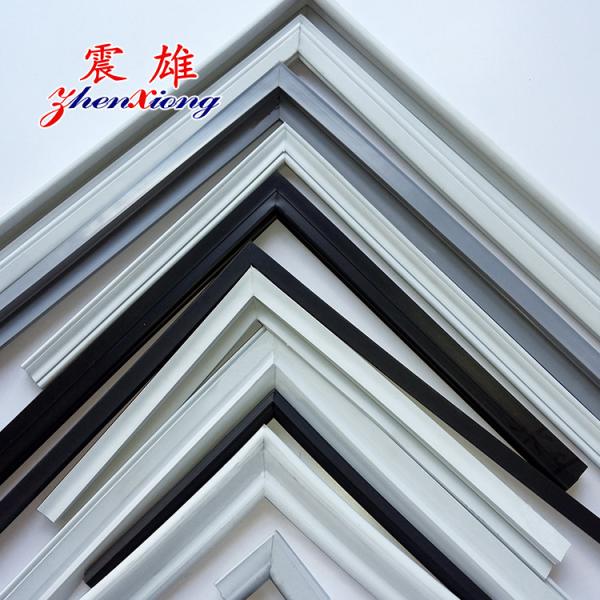

Suitable for batch welding of door seals for refrigerators, freezers, disinfection cabinets, water dispensers, etc., with smooth welding and automatic removal of weld beads, saving labor.

Model

ZXHJJ

Overall Dimensions

1840*1300*1220mm

Horizontal Clamping Stroke

50mm

Motor Power

2.1kw

Vertical Clamping Stroke

98mm

Electro heating System Power

1.95kw

Work Efficiency

600-650 sets/shift

Weight

360kg
