PLC Control Door Gasket Production Line Auto Gasket Welding Machine 600 - 650 Sets / Team

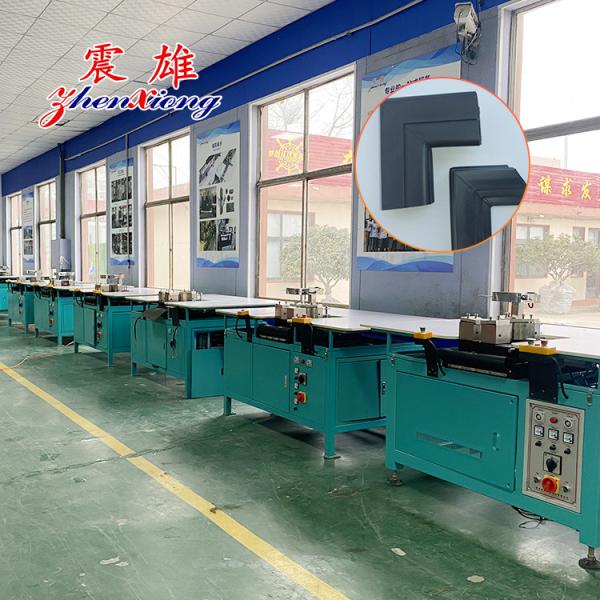

This automatic double corner welding machine is mainly used for welding gasket at a 90 ° angle. Adopting advanced programmable control technology, welding accuracy and efficiency are high. Double corners can be welded at once, significantly increasing production capacity.
Core advantages:
●The automatic double corner welding machine adopts a PLC automatic control system, with stable program, high control accuracy, and guaranteed welding quality.
●Double hole automatic double corner welding machine, automatic cleaning of welding burrs, saving labor costs.
●The automatic double corner welding machine mold and tooling are divided into two layers, upper and lower, and can weld dual angles at once, doubling the production capacity.
●A photoelectric protector is installed in front of the automatic double corner welding machine mold, using a two handed start button and a HZ12-25 cut-off switch to prevent electric shock.
●The production capacity of automatic double corner welding machine can reach 600-650 sets/shift, with high welding efficiency.
●The automatic double corner welding machine adopts brand electrical components: PLC control system and photoelectric switch (Omron), pneumatic components (SXPC) to ensure stable equipment operation.
●The automatic double corner welding machine has sufficient welding strength, and the product can withstand high pressure and is not easily deformed.
●The automatic double corner welding machine has high welding quality, with flat, firm, and beautiful welding corners
Application scope of automatic double corner welding machine:

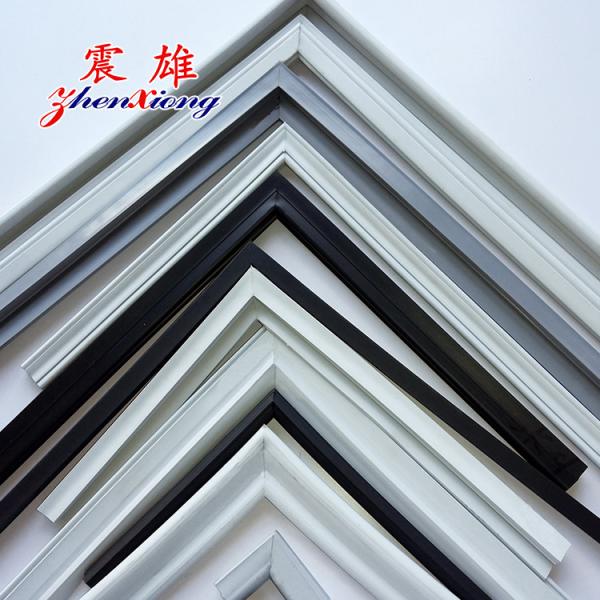

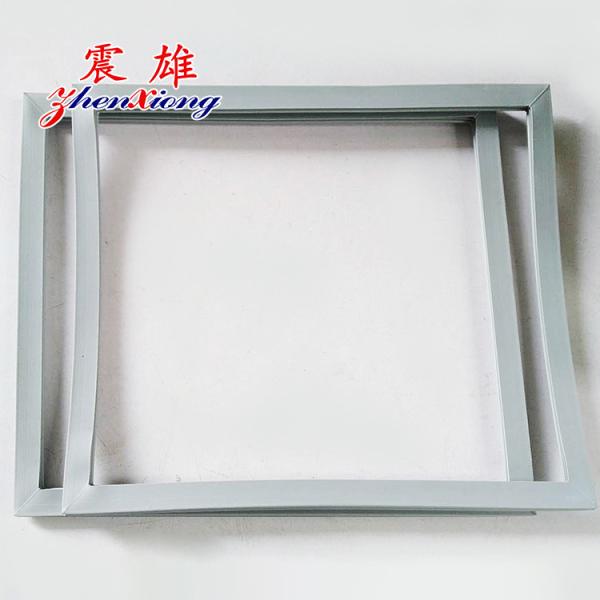

The double corner angle welding machine is suitable for batch welding of door seals in refrigerators, freezers, disinfection cabinets, water dispensers, etc. The welding is smooth and can automatically remove weld nodules, saving labor.
| Model | ZXHJJ | Overall Dimensions | 1840*1300*1220mm |
| Horizontal Clamping Stroke | 50mm | Motor Power | 2.1kw |
| Vertical Clamping Stroke | 98mm | Electro heating System Power | 1.95kw |
| Work Efficiency | 600-650 sets/shift | Weight | 360kg |
