Energy Refrigerator Conservation Door Gasket Production Line Customization High Yield

Our company is a professional manufacturer of refrigerator door gasket production lines, with over 20 years of production and research and development experience.

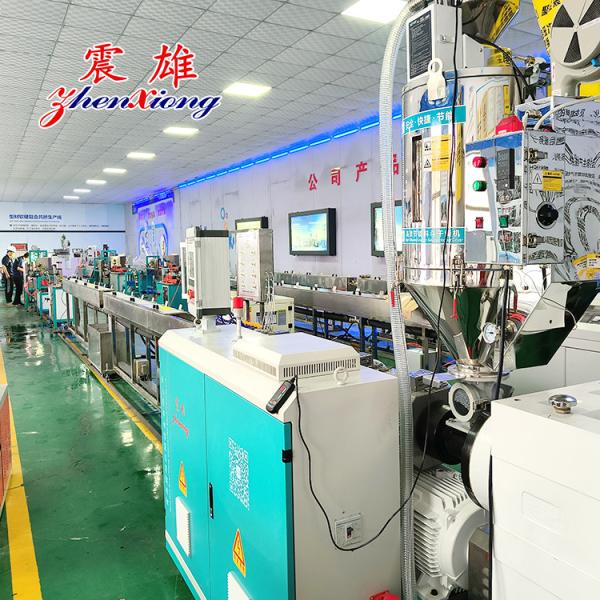

The automatic refrigerator door gasket production line can achieve the production of door gasket while also completing automatic punching, 45 ° cutting angle, and mechanical arm automatic material retrieval. The entire production line is fully automated, with high production efficiency, high production capacity and good product quality.

Core advantages:

• The automatic refrigerator door gasket production line adopts SJ75 extruder, equipped with PVC professional separation screw, with high production capacity and good material plasticization effect.
• The head mold of the automatic refrigerator door gasket production line is made of 40Cr mold steel material, quenched, tempered and forged, with high strength, wear resistance, and mold accuracy.
• The automatic refrigerator door gasket production line is equipped with a 5P air-cooled chiller unit, which allows the products to cool and solidify quickly. The cooling water temperature can be manually adjusted and controlled as needed.
• The automatic refrigerator door gasket production line is equipped with an automatic drying and feeding machine, which automatically alarms for overload and shortage, reducing labor costs;

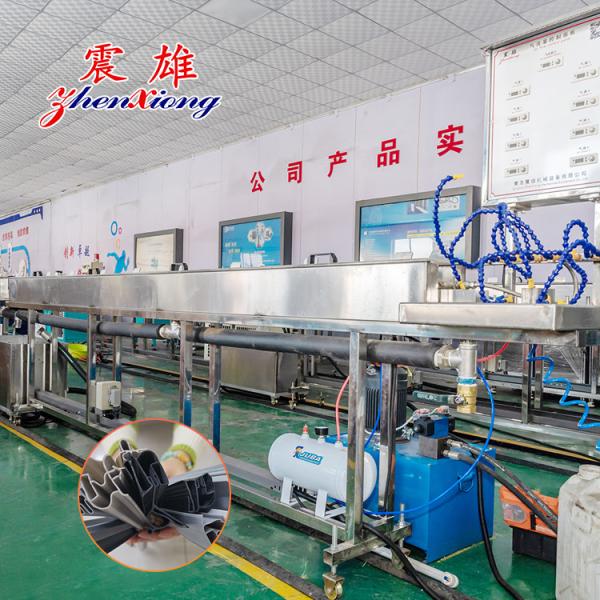

• The automatic refrigerator door gasket production line has two cooling water tanks, each measuring 4 meters, with a long cooling water path. It adopts circulating water spray cooling, which is fast and uniform, and has a good product shaping effect.
• The traction speed of the automatic refrigerator door gasket production line is controlled by a frequency converter, equipped with a pneumatic cutting device, and the cutting length size is adjustable.
• The automatic refrigerator door gasket production line is equipped with a 45 ° fully automatic cutting machine, which can cut both ends of the rubber strip into a 45 º angle with a cutting accuracy of ± 1mm.

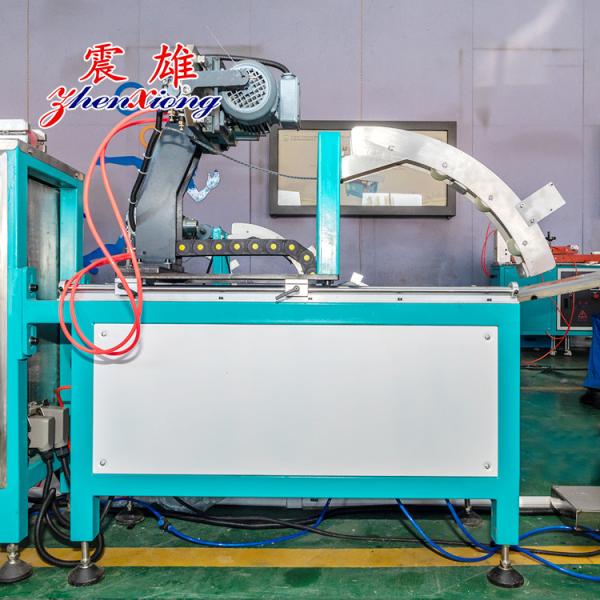

• The mechanical arm of the automatic refrigerator door gasket production line is controlled by photoelectric, and the rubber strip is clamped and placed smoothly on the material receiving table.

Application scope of products on the automatic refrigerator door gasket production line:

The door gasket products produced by the automatic refrigerator door gasket production line have a smooth surface without burrs, strong elasticity, uniform thickness, wear resistance, high and low temperature resistance, high and low temperature resistance, and are not easily aged or deformed after long-term use.

They serve as essential sealing components in refrigeration units (refrigerators, freezers), beverage cooling systems, water dispensers, sanitization equipment, kitchen appliances, architectural door/window profiles, and diverse household or industrial products requiring reliable sealing solutions.
