Specifications
Brand Name :
QingDao Zhenxiong
Model Number :
SJHJ
Certification :
CE certification
Place of Origin :
Qingdao,China
MOQ :
1 set
Price :
6000 - 6500USD per set
Payment Terms :
L/C,T/T
Supply Ability :
20 sets per month
Delivery Time :
15 - 25 working days
Packaging Details :
After being wrapped with stretch film , it is shipped unpacked in the container .
Weight :
Weight approximately 360KG
Automatic :
Yes
Warranty :
12 months
Dimension :
1.84 * 1.3 * 1.22 m
Description
Auto Gasket Welding Machine Door Gasket Production Line - Easy Operate Automatic Cleaning
Product Specifications
Weight Approximately 360KG
Operation Fully Automatic
Warranty 12 months
Dimensions 1.84 × 1.3 × 1.22 meters
Product Overview

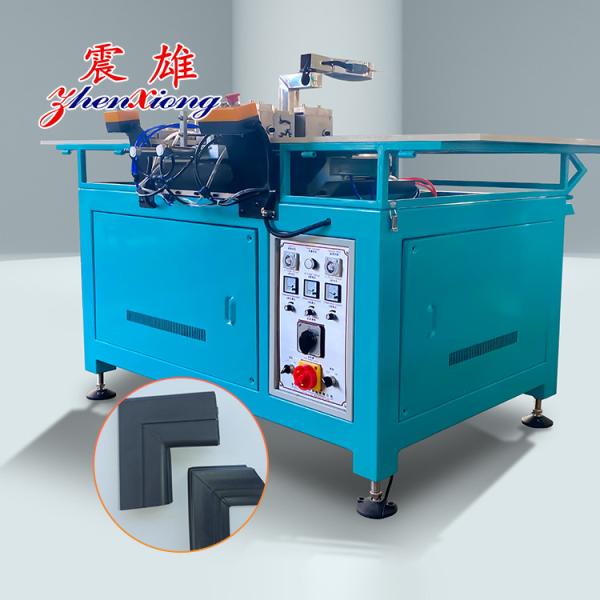

This automatic double corner welding machine is designed for precision welding of gaskets at 90° angles. Utilizing advanced programmable control technology, it delivers high welding accuracy and efficiency. The machine's dual-angle welding capability significantly boosts production capacity.

Key Features

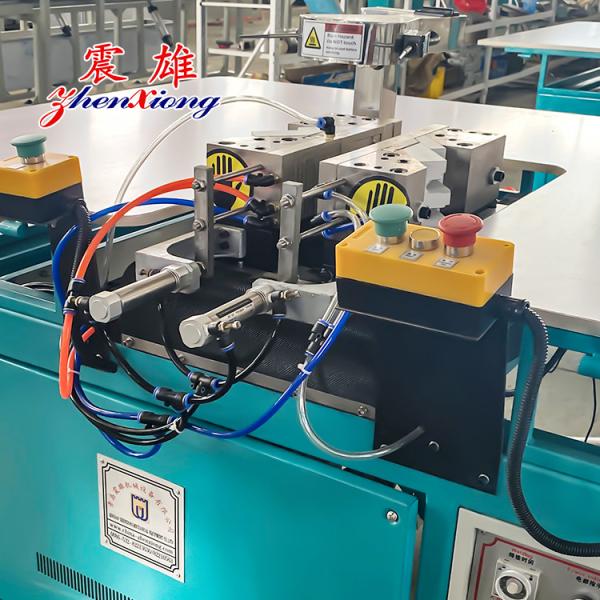

  • PLC automatic control system ensures stable operation and high precision welding
  • Automatic welding burr cleaning reduces labor requirements
  • Two-layer mold design enables simultaneous dual-angle welding, doubling output
  • Safety features include photoelectric protector, two-handed start button, and cut-off switch
  • High production capacity of 600-650 sets per shift
  • Premium components: PLC control system and photoelectric switches, SXPC pneumatic elements
  • Strong welding joints withstand high pressure without deformation

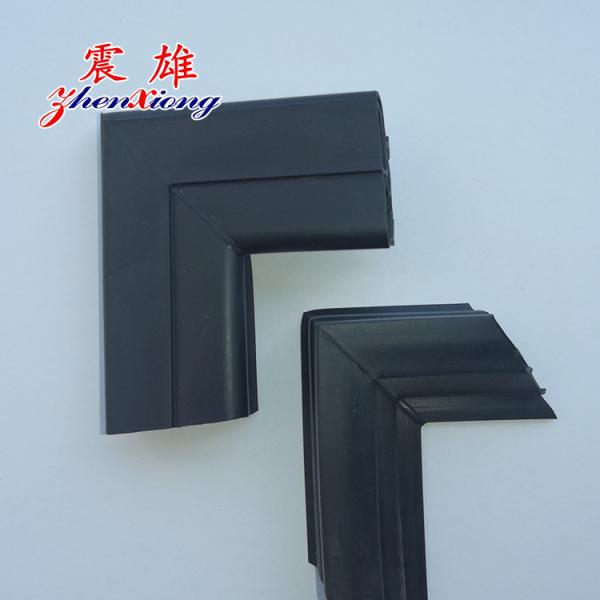

  • Consistent, flat, and aesthetically pleasing weld results
  • Customization available to match specific production requirements and facility layouts
Applications

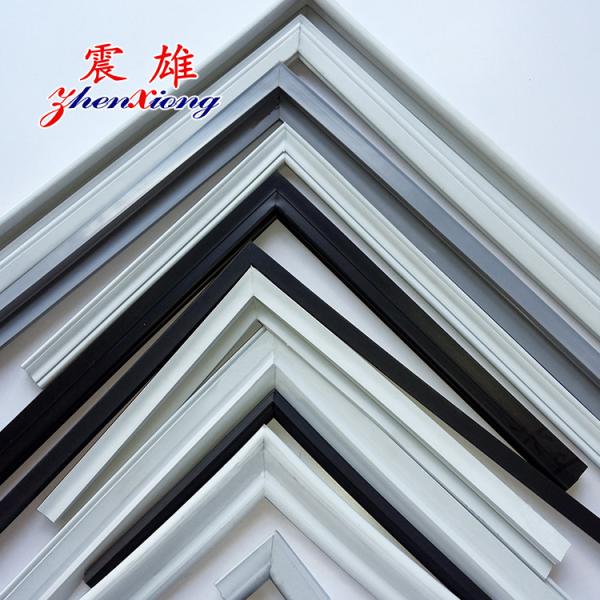

Ideal for batch welding of door seals in refrigerators, freezers, disinfection cabinets, water dispensers, and similar appliances. The machine produces smooth welds while automatically removing weld nodules.

Technical Specifications
Model ZXHJJ
Overall Dimensions 1840 × 1300 × 1220mm
Horizontal Clamping Stroke 50mm
Vertical Clamping Stroke 98mm
Work Efficiency 600-650 sets/shift
Motor Power 2.1kw
Electro Heating System Power 1.95kw
Weight 360kg
