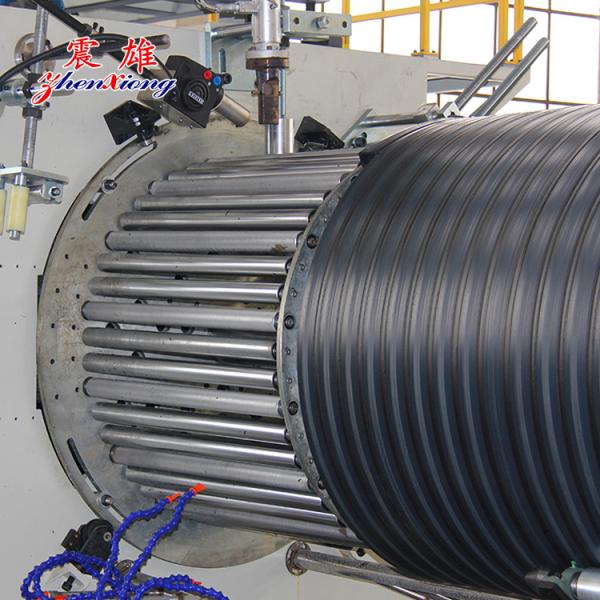

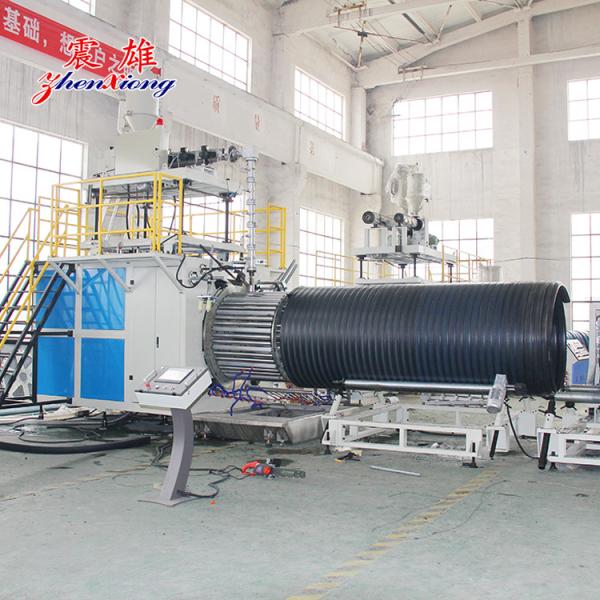

90mm Large Diameter plastic pipe making machine Hollow Wall Winding pipe extruder
90mm Large Diameter plastic pipe making machine Hollow Wall Winding pipe extruder
90mm Large Diameter plastic pipe making machine Hollow Wall Winding pipe extruder
90mm Large Diameter plastic pipe making machine Hollow Wall Winding pipe extruder
90mm Large Diameter plastic pipe making machine Hollow Wall Winding pipe extruder
90mm Large Diameter plastic pipe making machine Hollow Wall Winding pipe extruder
90mm Large Diameter plastic pipe making machine Hollow Wall Winding pipe extruder
90mm Large Diameter plastic pipe making machine Hollow Wall Winding pipe extruder
Specifications
Brand Name :
Qingdao Zhenxiong
Model Number :
SJ90
Certification :
ISO9001
Place of Origin :
Qingdao,China
MOQ :
1 set
Price :
50000 - 80000 USD per set
Payment Terms :
L/C,T/T
Supply Ability :
20 sets per month
Delivery Time :
15 - 25 working days
Packaging Details :
After being wrapped with stretch film , it is shipped unpacked in the container .
Plastic Processed :
HDPE
Motor Power :
55 KW
Screw Diameter :
90mm
Guarantee Period :
12 months
Description
90mm Large Diameter Plastic Pipe Making Machine - Hollow Wall Winding Pipe Extruder
Plastic Processed HDPE
Motor Power 55 KW
Screw Diameter 90mm
Guarantee Period 12 months
High Efficiency Plastic Pipe Machine with Large Diameter Capability

This hollow wall winding pipe extruder combines quality construction with high-speed, high-efficiency extrusion technology. Engineered for scientific precision, it delivers low operational costs with maximum output.

Core Advantages
  • Equipped with two single-screw extruders for square tube and rubber extrusion, featuring special screw design for high-yield production and low-temperature plasticization
  • Advanced composite head design with dual-machine joint feeding and spiral rotation molding ensures superior product quality
  • PLC control system with high-precision temperature modules for stable operation and accurate control
  • Multi-axis transmission structure in spiral forming machine provides powerful transmission force and long service life
  • Available in multiple size ranges: 300-1200mm, 800-1600mm, and 1600-3000mm inner diameter options
  • Produces pipes with smooth surfaces and distinctive wall structure, offering high ring stiffness, lightweight construction, and exceptional pressure resistance
  • Excellent corrosion and wear resistance with long service life and recyclable materials
Applications

Ideal for municipal renovation projects, construction sites, industrial/agricultural drainage systems, water-saving irrigation, and sewage treatment plants. Features low assembly costs, easy operation, and simple connections for economical performance.

Technical Specifications
Model SJ-90 Production Capacity 200Kg/h
Screw Diameter 90mm Overall Dimensions 30000 × 4000 × 5000mm
Max. Extrusion Diameter 90mm Motor Power 55kw
Pipe Diameter Range 300-1200mm Weight 3 - 5 tons
