Specifications
Brand Name :
QingDao Zhenxiong
Model Number :
SJ 120
Certification :
ISO9001
Place of Origin :
Qingdao,China
MOQ :
1 set
Price :
170000 - 1150000 USD per set
Payment Terms :
L/C,T/T
Supply Ability :
20 sets per month
Delivery Time :
15 - 25 working days
Packaging Details :
After being wrapped with stretch film , it is shipped unpacked in the container .
PLC control :
Yes
Note :
Different models and configurations are available for customization
Description

HDPE / PP Plastic Pipe Machine 200 - 600mm Double Wall Corrugated Pipe

PE/PP double-wall corrugated pipe production line is the third-generation improved product of Qingdao Zhenxiong Machinery. The main extrusion output and pipe production speed are greatly improved by 20-40% compared with previous products. It can realize online expansion to ensure that the performance indicators of corrugated pipe products meet customer requirements.

Core advantages:

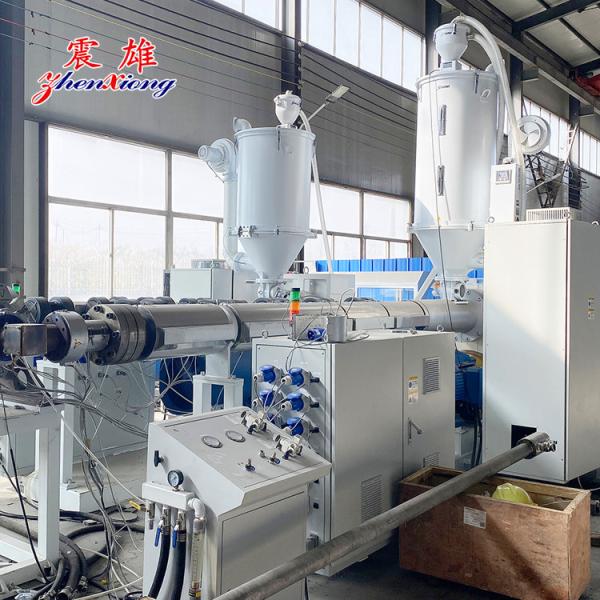

●The extruder is designed with a professional double-separation screw structure according to the characteristics of the raw materials; two single-screw extruders are configured, and the corrugated pipe extrusion die head is professionally designed. The PE/PP double-wall corrugated pipe production line can achieve large-scale stable extrusion.

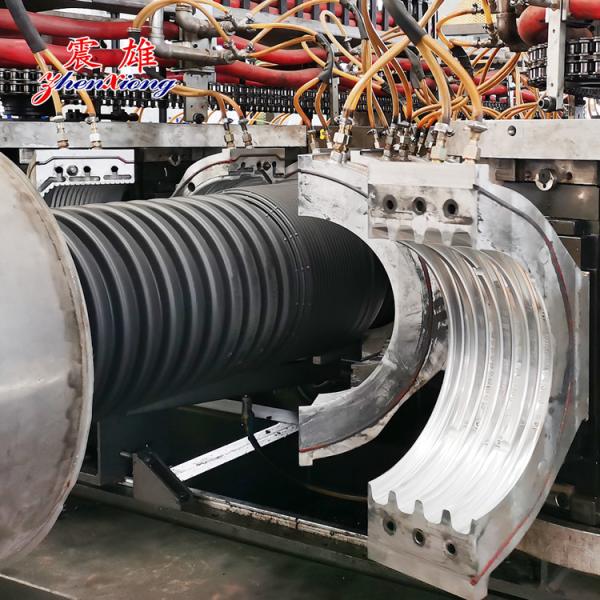

●The corrugated forming module adopts an innovative pressure water direct cooling structure, which allows the cooling medium to circulate inside the module at a higher flow rate, with high cooling efficiency, thereby ensuring that the PE/PP double-wall corrugated pipe production line has a higher output.

●The PE/PP double-wall corrugated pipe production line adopts an advanced Siemens PLC control system and a modular control solution with high compatibility, control accuracy and reliability.

●The molds of the PE/PP double-wall corrugated pipe production line can be used in small, medium and large models, making the production organization more flexible.

●The PE/PP double-wall corrugated pipe production line can customize various module waveform solutions according to user requirements.

●The fully automatic bellows cutting machine operates under computer - program control. This advanced control mechanism ensures pinpoint - accurate cutting positions. It runs stably, and its user - friendly interface makes operation accessible even for those with limited technical knowledge.

●PE/PP double wall bellows production line automatic lubrication system, with a number of lubrication points, can set the lubrication time and frequency of automatic operation.

●The PE/PP double-wall corrugated pipe production line has advanced online expansion function, which can reduce investment and improve production efficiency.

PE/PP double-wall corrugated pipe production line purpose and production range:

1. This equipment is used to produce HDPE/PP double-wall corrugated pipes.

2. This equipment can produce double-wall corrugated pipes with a diameter of 200-600mm.

3. The mold can be customized according to customer needs.

Extruder Type

Single screw extruder

Squeezing ability

300-600kg/h

Pipe diameter range

300-600mm

Weight

10T

Voltage

380V 50Hz

Warranty Time

365 days
