Specifications
Brand Name :
Qingdao Zhenxiong Mechanical Equipment Co., Ltd.
Model Number :
ZX - RQG
Certification :
ISO9001
Place of Origin :
Qingdao,China
MOQ :
1 set
Price :
220000 - 320000USD per set
Payment Terms :
L/C,T/T
Supply Ability :
20 sets per month
Delivery Time :
15 - 25 working days
Packaging Details :
After being wrapped with stretch film , it is shipped unpacked in the container.
Speed :
2 - 5m / min
Screen Brand :
Simens
Item :
HDPE Pipe Machine
Processing Type :
Extrusion
Description
HDPE Plastic Pipe Machine 2 - 5m / Min Gas Water Pipe Production Line
Product Specifications
Attribute Value
Speed 2 - 5m / min
Screen Brand
Item HDPE Pipe Machine
Processing Type Extrusion
Energy-Efficient HDPE Pipe Extrusion Line
Our HDPE gas/water pipe extrusion production line achieves 30% energy savings through optimized screw structure and reverse slotting design in the feeding section. This ensures high production capacity while maintaining low-temperature material melting and even plasticization. The system features rapid heating and utilizes a servo motor for superior energy efficiency.
Core Advantages
  • Versatile production capability for two-layer, three-layer, and multi-layer composite pipes through mold replacement and additional extruders
  • Premium 40Cr mold steel construction - tempered, forged, and hard chrome-plated for exceptional wear resistance, deformation resistance, and precision

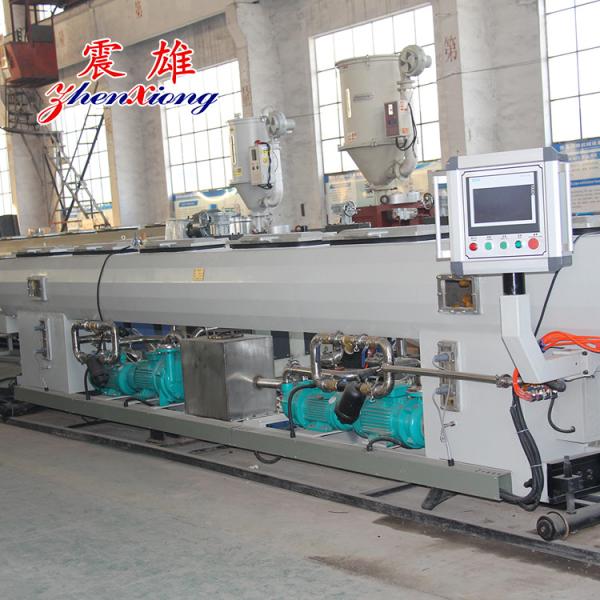

  • Stable vacuum shaping box and spray box system provides uniform cooling capacity and sufficient cooling length
  • Special screw design with fast heating system and servo motor for maximum energy efficiency
  • German brand gravity metering device ensures precise weight control and superior pipe quality
  • Optimized traction structure maintains consistent alignment with the pipe center for easy adjustment

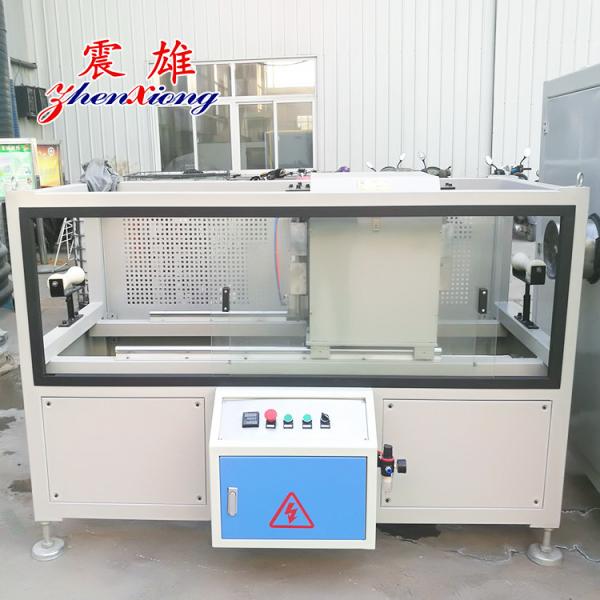

  • Fully automatic chipless cutting produces smooth, flat pipe ends with minimal noise, dust, and energy consumption
  • PLC control system allows customizable operating parameters with clear display
Applications
The pipes produced by this line offer outstanding performance in stiffness, flexibility, heat resistance, aging resistance, mechanical strength, creep resistance, corrosion resistance, and thermal connectivity. Ideal for:
• Urban water supply networks • Drinking water distribution • Industrial liquid transport (chemical, food, forestry, light industry, paper) • Agricultural irrigation • Telecommunications and power line protection • Mining slurry transportation
Technical Specifications
Type Pipe Spec (mm) Extruder Max Output (kg/h) Speed (m/min) Total Power (kw)
ZXPE-63 20-63 SJ50/33 120 0.2-16 65
ZXPE-110 20-110 SJ65/33 220 0.2-10 115
ZXPE-160 63-160 SJ75/33 300 0.3-6 160
ZXPE-250 75-250 SJ80/33 400 0.2-5 200
ZXPE-315 160-315 SJ90/33 550 0.2-2 250
ZXPE-630 315-630 SJ120/33 900 0.1-1 420
ZXPE-800 400-800 SJ135/33 1200 0.08-0.8 500
ZXPE-1200 630-1200 SJ150/33 1400 0.05-0.5 650
