Specifications
Brand Name :
QingDao Zhenxiong
Model Number :
SJ 120
Certification :
ISO9001
Place of Origin :
Qingdao,China
MOQ :
1 set
Price :
170000 - 1150000 USD per set
Payment Terms :
L/C,T/T
Supply Ability :
20 sets per month
Delivery Time :
15 - 25 working days
Packaging Details :
After being wrapped with stretch film , it is shipped unpacked in the container .
Warranty Time :
365 days
Pipe diameter range :
300 - 600mm
Pipe Material :
PE PP double wall corrugated pipe
Application :
Pipe Production
Description

Customizable Plastic Pipe Machine PE / PP Double Wall Corrugated Pipe Stable Extrusion

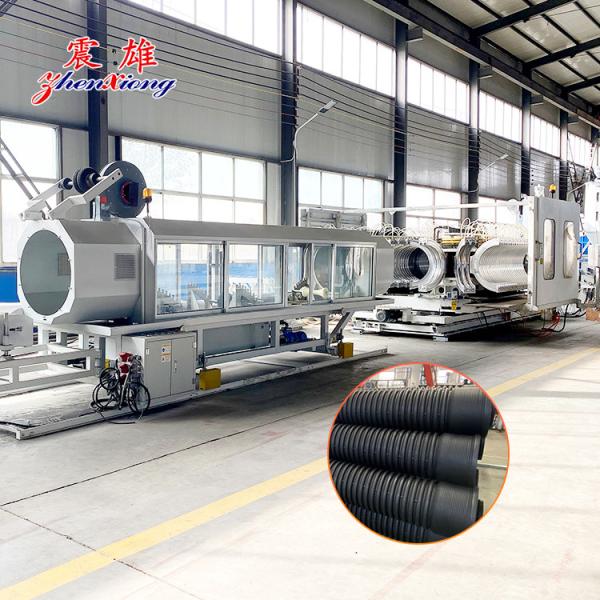

The PE/PP double wall corrugated pipe production line is a third-generation improved product of Qingdao Zhenxiong Machinery. The extrusion output and pipe production speed of the main machine have been significantly increased by 20-40% compared to previous products. It can achieve online expansion to ensure that the performance indicators of corrugated pipe products meet customer requirements.
Core advantages:
  • The extruder is designed with a professional double separation structure for the screw according to the characteristics of the raw materials; Configure two single screw extruders, equipped with professionally designed corrugated tube extrusion dies, to achieve stable extrusion with high output.

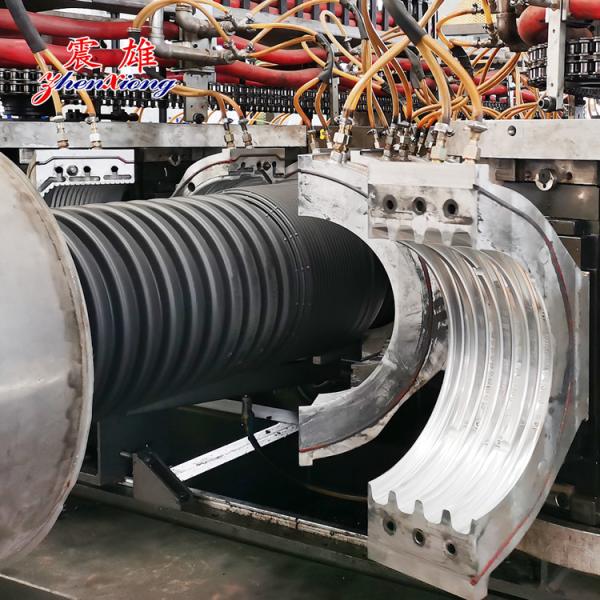

  • The corrugated forming module adopts an innovative pressure water direct cooling structure, allowing the cooling medium to circulate inside the module at a high flow rate, resulting in high cooling efficiency and ensuring higher production capacity of the PE/PP double wall corrugated pipe production line.
  • Advanced Siemens PLC control system, adopting modular control scheme, with high compatibility, high control accuracy and reliability.
  • The mold of PE/PP double wall corrugated pipe production line can be used interchangeably between small, medium and large models, making the production organization more flexible.
  • Various module waveform schemes can be customized according to user requirements.

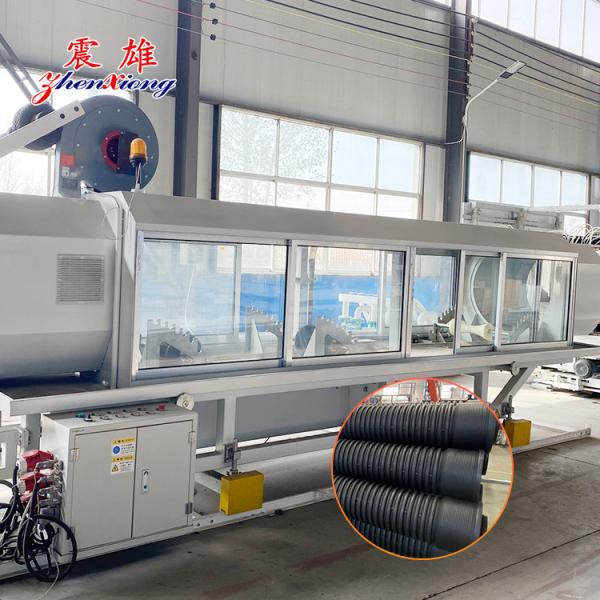

  • The supporting fully automatic corrugated pipe cutting machine is controlled by computer program, with accurate cutting position, stable operation and convenient use.
  • The automatic lubrication system of the PE/PP double wall corrugated pipe production line is equipped with multiple lubrication points, and the lubrication time and frequency can be set to automatically operate.
  • Advanced online expansion function can reduce investment and improve production efficiency.
Application and production scope of PE/PP double wall corrugated pipe production line
1. This equipment is used for producing HDPE/PP double wall corrugated pipes.
2. This equipment can produce double wall corrugated pipe materials with a diameter of 200-600mm.
3. The mold can be customized according to customer needs.

Extruder Type

Single screw extruder

Squeezing ability

300-600kg/h

Pipe diameter range

300-600mm

Weight

10T

Voltage

380V 50Hz

Warranty Time

365 days
