Specifications
Brand Name :
Qingdao Zhenxiong
Model Number :
ZX - SLGMS
Certification :
ISO9001
Place of Origin :
Qingdao,China
MOQ :
1 set
Price :
32800 - 42800USD per set
Payment Terms :
L/C,T/T
Supply Ability :
20 sets per month
Delivery Time :
15 - 25 working days
Packaging Details :
After being wrapped with stretch film , it is shipped unpacked in the container .
Automatic Grade :
Automatic
Applicable raw material :
PE , PP , PVC , wood flour
Motor power :
37KW
Dimension :
22000 * 1500 * 2800 mm
Description
High Quality Plastic Profile Production Line Eco Friendly Wood Plastic Profiles Customizable

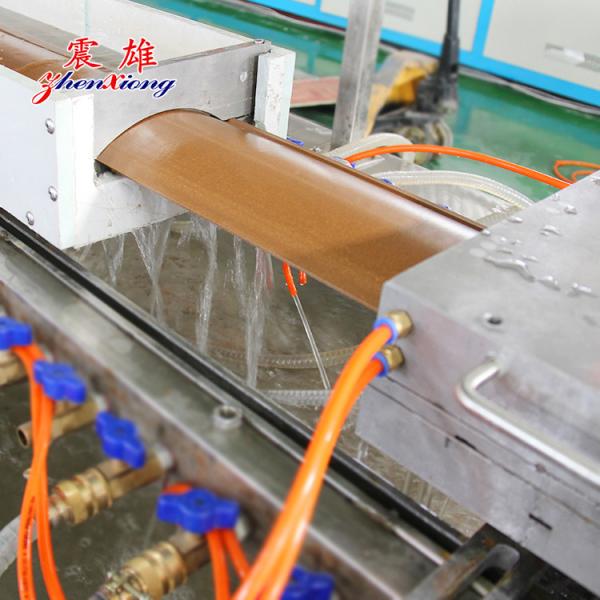

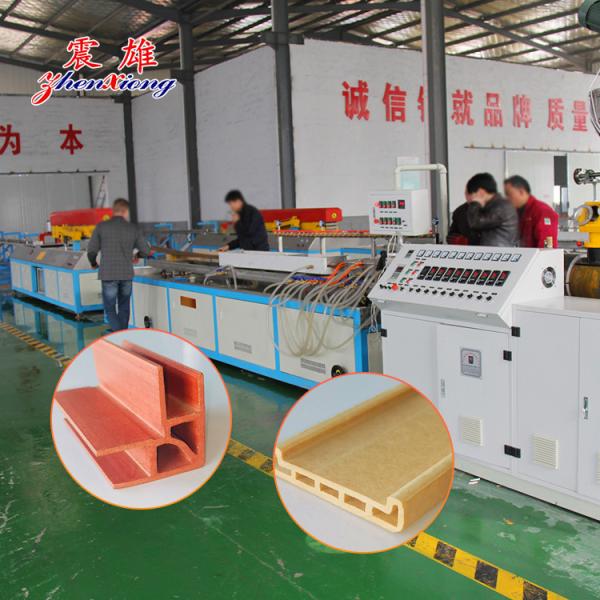

Wood - plastic profile production equipment uses PE, PP, or PVC resin as the fundamental raw materials, along with wood powder. It comes with custom - engineered screw barrels, molds, and advanced technological processes. This equipment offers multiple benefits: high output capacity, low energy consumption, stable operation, effective plasticizing and mixing, minimized wood fiber damage, and extended service life.

Core advantages:

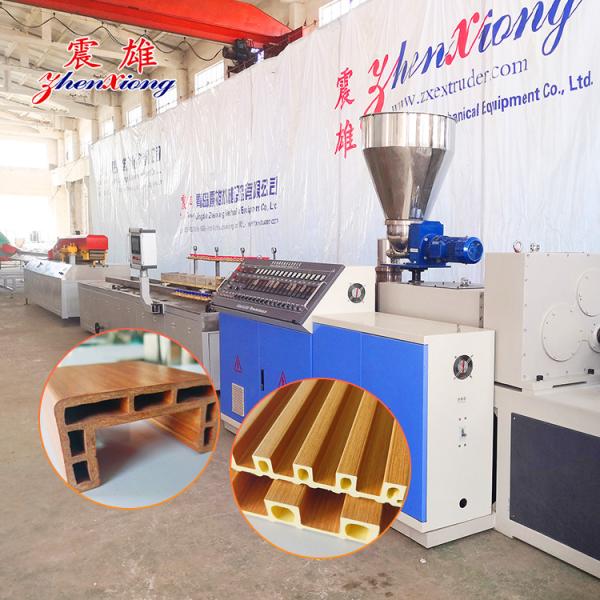

●The wood - plastic production equipment is equipped with a conical twin - screw extruder. This configuration brings multiple benefits: it enables high output, ensures materials are uniformly and thoroughly plasticized, and imparts a high - quality surface finish to products.

●The wood-plastic production equipment adopts a hardened gearbox, which has high stability, low noise and long service life.

●The wood-plastic production equipment adopts domestic famous brand motors, which have stable operation and strong energy-saving effect.

●The temperature control of the wood-plastic production equipment adopts imported temperature control instruments to achieve high-precision temperature control.

●The wood-plastic production equipment uses a spiral feeder to achieve automatic conveying, saving a lot of manpower.

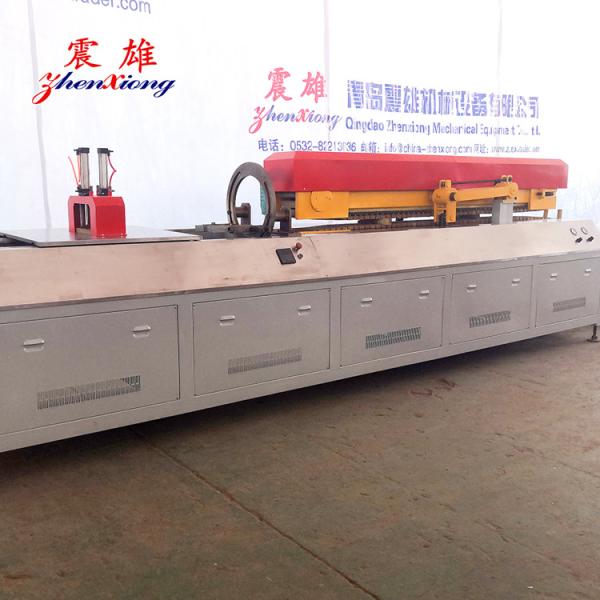

●The cutting machine of the wood-plastic production equipment adopts pneumatic control, and uses clamps and alloy blades to ensure the length of the wood-plastic profile and the flatness of the cut.

●The wood-plastic production equipment is divided into two types: automatic control and manual control.

●The wood-plastic products produced by the wood-plastic production equipment have beautiful appearance, good weather resistance, moisture-proof and insect-proof, not easy to deform, aging-resistant, long service life and easy maintenance.

Product application range:

Wood-plastic composite materials do not require daily maintenance, have a longer service life than ordinary wood, and meet people's pursuit of nature with their simulated log visual effects. Widely used in outdoor garden landscape production, decorative wall panels, outdoor floors, guardrail columns, plastic wood pavilions, garden guardrails, garden fences, leisure benches, tree pools, flower boxes, etc.

Control

Instrument or PLC

Weight

8T

voltage

380V

Dimension

22000 * 1500 * 2800 mm

Motor power

37KW

Processing Type

extrusion

Applicable raw material

PE , PP , PVC , wood flour

Screw Type

twin conical screw
