Specifications
Brand Name :
Qingdao Zhenxiong
Model Number :
SJ75
Certification :
ISO9001
Place of Origin :
Qingdao,China
MOQ :
1 set
Price :
45800 - 55800USD per set
Payment Terms :
L/C,T/T
Supply Ability :
20 sets per month
Delivery Time :
15-25 working days
Packaging Details :
After being wrapped with stretch film , it is shipped unpacked in the container .
Name :
Refrigerator Door Gasket Production Line With On-Line Magnetic Strip Inserting Device
Dimensions :
33000mm x 1500mm x 1800mm
Weight :
4 T
Voltage :
380V 50HZ
Applicable Raw Materials :
PVC Granules or Powders
Length range of magnetic stripe :
180-1800 mm
Description

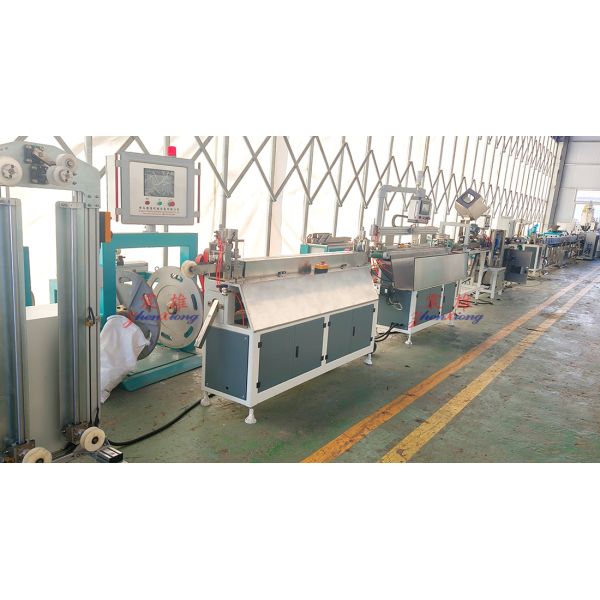

Online Magnetic Strip Inserting Door Gasket Production Line

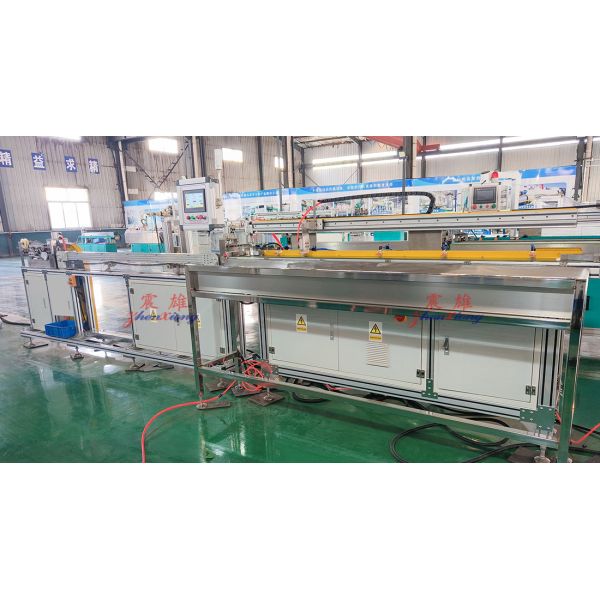

45° Angle Cut Automatic Punching System
As a professional manufacturer with over 20 years of experience, our online magnetic strip refrigerator door seal production line realizes one-stop automated production of extrusion, punching, chamfering, and magnetic strip threading. The entire line only requires one person to operate, significantly saving manpower and improving efficiency.
Core Advantages
  • Specialized separation screw extruder with sufficient material plasticization and high output efficiency
  • High precision 40Cr mold steel, forged and tempered for durability and precise sizing
  • Air-cooled chiller ensures rapid product shaping and convenient water temperature adjustment
  • Automatic feeding system equipped with fault alarms to reduce manual monitoring
  • Two-stage spray cooling system with 8-meter total length for uniform cooling and excellent shaping
  • Traction speed controlled by frequency conversion with pneumatic cutting for different length requirements
  • 45° cutting angle accuracy of ±1mm for high-precision splicing requirements
  • Wide range and high accuracy magnetic strip insertion for optimal sealing performance
Product Application Range

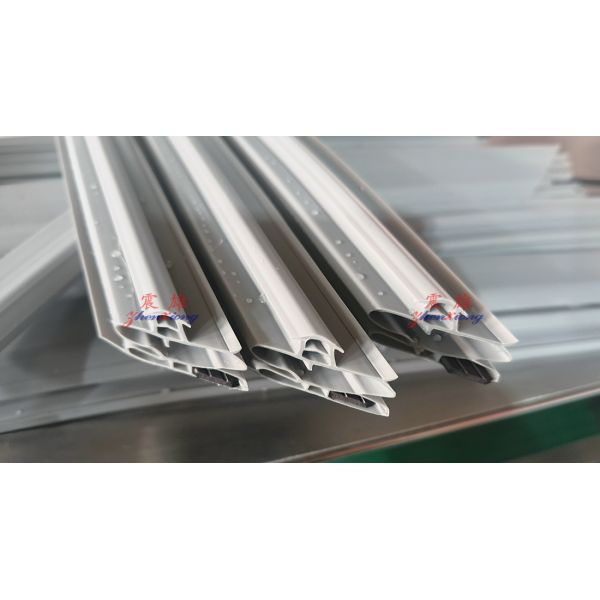

The surface of the sealing strip produced by this line is smooth, magnetically stable, and has excellent sealing performance. Suitable for refrigerators, freezers, water dispensers, beverage cabinets, disinfection cabinets, kitchenware, profile doors and windows, and various industrial and civilian products.
Technical Specifications
Model SJ75
Voltage 380V 50HZ
Automation Yes
Applicable Raw Materials PVC Granules or Powders
Control System PLC
Dimensions 33000x1500x1800mm
Weight 4 T
Length Range of Magnetic Stripe 180-1800 mm
