Automatic Refrigerator Door Gasket Production Line with Material Shortage Alarm SJ75 Mainframe and 45° Angle Cutting
Automatic Refrigerator Door Gasket Production Line with Material Shortage Alarm SJ75 Mainframe and 45° Angle Cutting
Automatic Refrigerator Door Gasket Production Line with Material Shortage Alarm SJ75 Mainframe and 45° Angle Cutting
Automatic Refrigerator Door Gasket Production Line with Material Shortage Alarm SJ75 Mainframe and 45° Angle Cutting
Automatic Refrigerator Door Gasket Production Line with Material Shortage Alarm SJ75 Mainframe and 45° Angle Cutting
Automatic Refrigerator Door Gasket Production Line with Material Shortage Alarm SJ75 Mainframe and 45° Angle Cutting
Automatic Refrigerator Door Gasket Production Line with Material Shortage Alarm SJ75 Mainframe and 45° Angle Cutting
Automatic Refrigerator Door Gasket Production Line with Material Shortage Alarm SJ75 Mainframe and 45° Angle Cutting
Automatic Refrigerator Door Gasket Production Line with Material Shortage Alarm SJ75 Mainframe and 45° Angle Cutting
Automatic Refrigerator Door Gasket Production Line with Material Shortage Alarm SJ75 Mainframe and 45° Angle Cutting
Specifications
Brand Name :
Qingdao Zhenxiong
Model Number :
SJ75
Certification :
ISO9001
Place of Origin :
Qingdao,China
MOQ :
1 set
Price :
31000 - 39000USD per set
Payment Terms :
L/C,T/T
Supply Ability :
20 sets per month
Delivery Time :
15 - 25 working days
Packaging Details :
After being wrapped with stretch film , it is shipped unpacked in the container .
Name :
Automatic Refrigerator Door Gasket Production Line
Product application scope :
Refrigerator, freezer, water dispenser, disinfection cabinet, kitchenware, etc
Cooling water tank :
total length of 8 meters
Voltage :
380V 50HZ
Applicable Raw Materials :
PVC Granules or Powders
Dimensions :
25000*1500*2800mm
Description
Automatic Feeding Door Gasket Production Line with Material Shortage Alarm
This advanced production line reduces labor costs while ensuring consistent, high-quality refrigerator door gasket manufacturing through fully automated operation.
Professional Manufacturing Expertise
With over 20 years of professional experience, our fully automatic refrigerator door seal production line achieves highly automated operation. The system covers complete processes including extrusion, punching, 45° cutting, and robotic arm material retrieval, helping enterprises improve production capacity and product consistency.
Core Technical Advantages
  • SJ75 mainframe equipped with separation type screw for high plasticizing efficiency and stable extrusion
  • 40Cr mold steel material with quenched and tempered forging process ensures mold accuracy and extended service life
  • 5P air-cooled chiller unit provides fast cooling speed with adjustable water temperature for different processes
  • Automatic feeding machine with overload and material shortage alarm reduces manual monitoring requirements
  • Two-stage spray cooling water tank with 8-meter total length ensures uniform and sufficient cooling
  • Variable frequency control traction and pneumatic cutting system for flexible, adjustable cutting sizes
  • 45° angle cutting machine achieves ±1mm cutting accuracy for high-precision splicing requirements
  • Photoelectric control robotic arm enables smooth material retrieval and fully automatic collection
Product Quality Characteristics

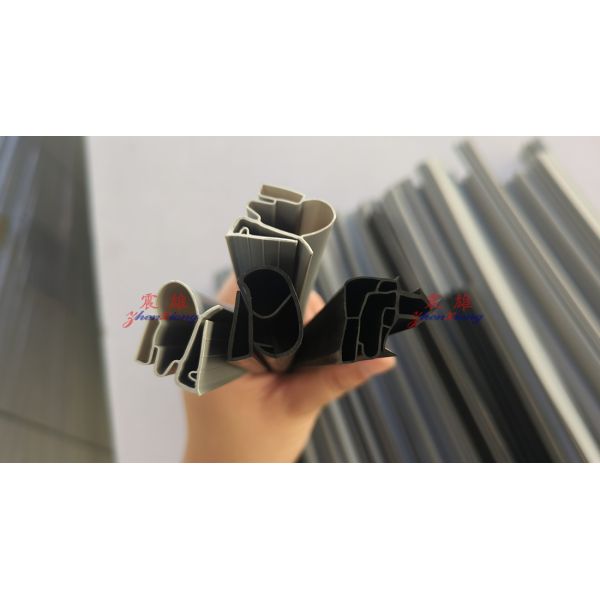

Manufactured products feature burr-free surfaces, uniform thickness, long-lasting elasticity, and excellent resistance to high/low temperatures and wear.
Application Scope
Widely used in refrigerators, freezers, water dispensers, disinfection cabinets, kitchenware, profile doors and windows, and various industrial and consumer product fields.
Technical Specifications
Model SJ75
Voltage 380V 50HZ
Motor Power 22Kw
Applicable Raw Materials PVC Granules or Powders
Dimensions 25000×1500×2800mm
Screw Diameter 75mm
Weight 3T

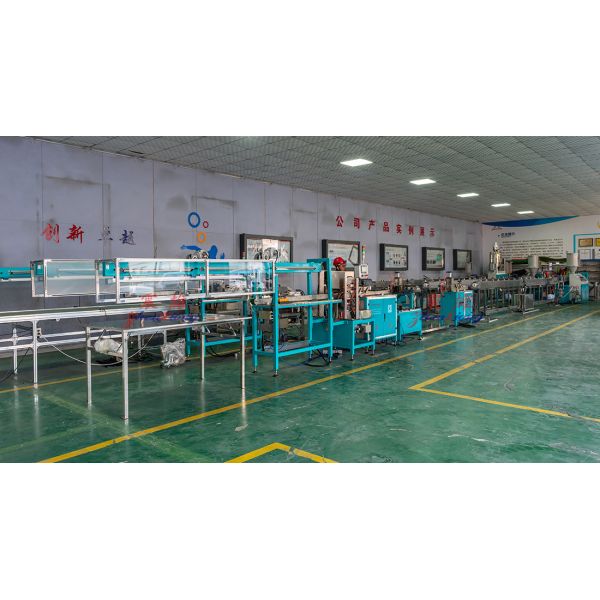

Production Line Images
Automatic Refrigerator Door Gasket Production Line with Material Shortage Alarm SJ75 Mainframe and 45° Angle Cutting Automatic Refrigerator Door Gasket Production Line with Material Shortage Alarm SJ75 Mainframe and 45° Angle Cutting Automatic Refrigerator Door Gasket Production Line with Material Shortage Alarm SJ75 Mainframe and 45° Angle Cutting Automatic Refrigerator Door Gasket Production Line with Material Shortage Alarm SJ75 Mainframe and 45° Angle Cutting
