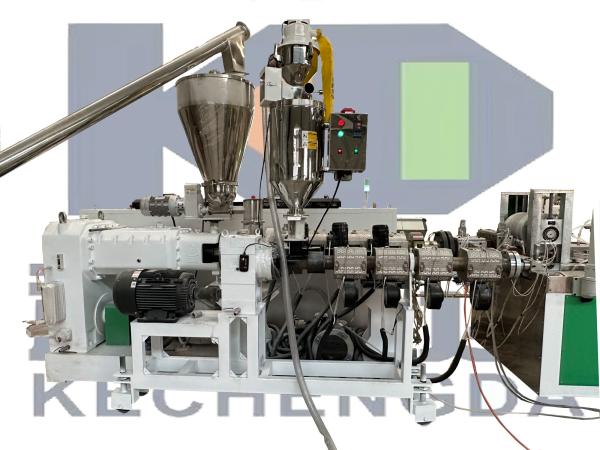

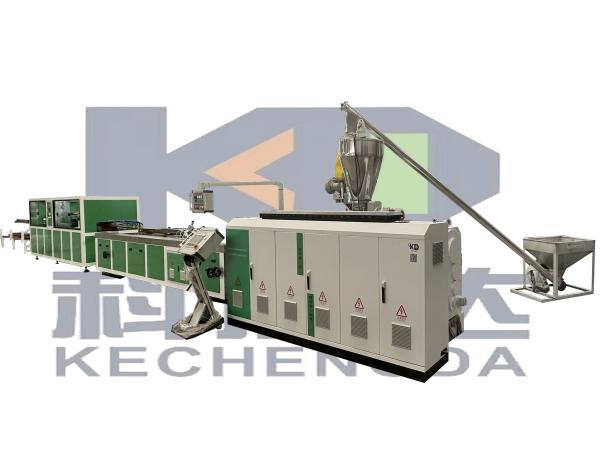

Sevenstars wpc profile extrusion line / wpc profile production line
Sevenstars wpc profile extrusion line / wpc profile production line
Sevenstars wpc profile extrusion line / wpc profile production line
Sevenstars wpc profile extrusion line / wpc profile production line
Sevenstars wpc profile extrusion line / wpc profile production line
Sevenstars wpc profile extrusion line / wpc profile production line
Sevenstars wpc profile extrusion line / wpc profile production line
Sevenstars wpc profile extrusion line / wpc profile production line
Sevenstars wpc profile extrusion line / wpc profile production line
Sevenstars wpc profile extrusion line / wpc profile production line
Sevenstars wpc profile extrusion line / wpc profile production line
Sevenstars wpc profile extrusion line / wpc profile production line
Specifications
Brand Name :
Kechengda
Model Number :
SJSZ-65/132
Place of Origin :
Shandong, China
MOQ :
1
Price :
26000~60000 USD
Payment Terms :
T/T
Supply Ability :
100
Delivery Time :
35 work days
Packaging Details :
wrapping film
Screw Design :
Double-screw
Screw L/D Ratio :
65/132
Condition :
New
Plastic Processed :
PVC
Application :
Profile
Showroom Location :
Egypt, Brazil, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Morocco, Argentina, Algeria
Weight :
10000 KG
Warranty :
1 Year
Key Selling Points :
Competitive Price
Applicable Industries :
Manufacturing Plant
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
Core Components :
Bearing, Motor, Pump, Gear, PLC, Pressure vessel, Engine, Gearbox, Screw
Machinery Test Report :
Provided
Screw Material :
38CrMoALA
Screw diameter (mm) :
65
Screw Speed (rpm) :
200 rpm
Voltage :
380V OR CUSTOMIZED
Dimension(L*W*H) :
20mx2.5mx2.2m
Power (kW) :
60
Raw material :
PVC Powder+additatives
Description
Description
1. It can produce PE, PP or PVC wood-plastic of by applying specially designed screw, material cylinder, mold and processing
production technology and auxiliary machines for shaped material, the line is Wood-plastic Extruding Production Line.
2.it may produce PE, PP or PVC wood-plastic different shaped products. The wooden-plastic mixing extruding production line adopts special-designed screw stem, material cylinder, moulds and processing
technology.
3.Equipped with YE model auxiliary it can produce wooden-plastic profile. It is a new kind of environment protection products
which Mix plastic and waste wood fiber in proper proportion, adding plastic processing extender.
4.It can produce, package box plate, frame material for door and window, floor board, outside products extruded in high temperature and high pressure wood-plastic extruder line. wood-plastic extruding line. wood-plastic production line
Parameters
Model
SJSZ80/156
SJSZ92/188
Screw dia.(mm)
Φ80/Φ156
Φ92/Φ188
Screw quantity(pcs)
2
2
Screw speed(r/min)
1-38
1-32.9
Main extruder power(kwh)
55
90
Heating power (approx.)( kwh)
36
78
Extrusion output(kg/h)
350-450
500-600
