Specifications
Brand Name :
HYPET
Certification :
CE
Place of Origin :
Wuhan
MOQ :
1
Price :
US$500,000
Payment Terms :
L/C,D/P,T/T,Western Union
Supply Ability :
100 sets/ year
Delivery Time :
90 days
Packaging Details :
FCL
Keywords :
90-250mm OPVC Pipe Production Line
Description
90-250 PVC-O pipe production line
Guarantee that other machine supplier cannot do:
1. 110mm pipe above 200kg/h.
2. Pipe with belling pass MRS 500 Grade test.
90-250 PVC-O Pipe line consists
SN
Items & Specification
Quantity
1
Gravimetric dosing system (for PVC powder)
1 set
2

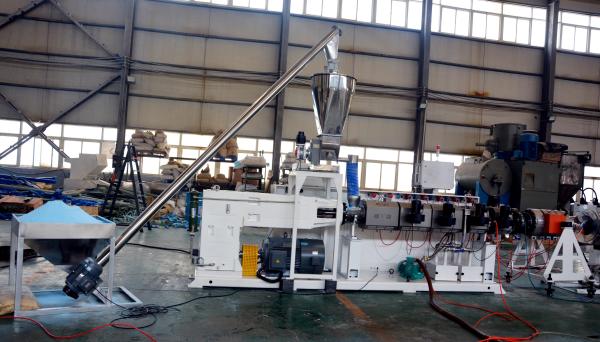

HYPS 95/34 parallel twin screw extruder with output 450kg/h
1 set
3

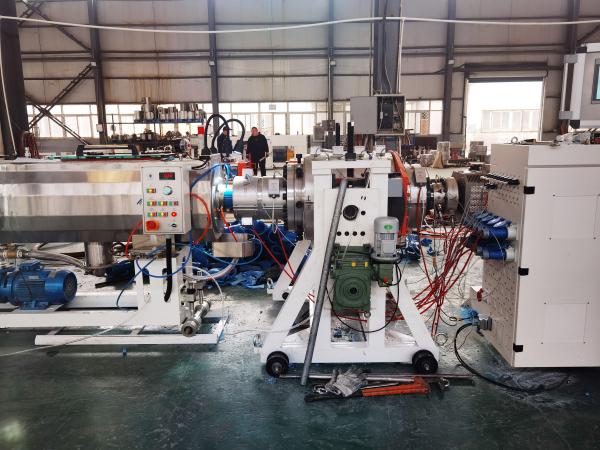

PVC-O pipe die mould, 90- 110 - 160 - 200 - 250mm
1 set
4
HYZK250-6m Double chamber vacuum tank
1 set
5
HYQY-250 Four Claw Haul-off Machine
1 set
6

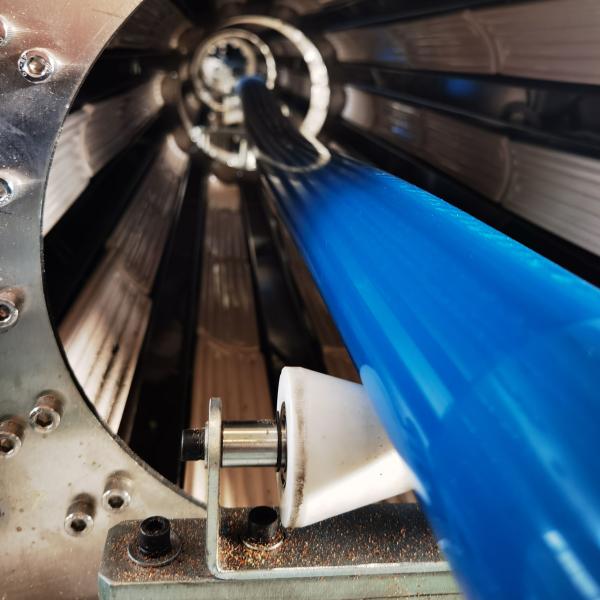

HYJR-250 Infrared heating machines
3 sets
7
Special alloy expansion mold and pipeline die head connector
1 set



8
90- PN12.5 / 16 OPVC pipe expansion mould for MRS 500
2 sets
110- PN12.5 / 16 OPVC pipe expansion mould for MRS 500
2 sets
160- PN12.5 / 16 OPVC pipe expansion mould for MRS 500
2 sets
200- PN12.5 / 16 OPVC pipe expansion mould for MRS 500
2 sets
250- PN12.5 / 16 OPVC pipe expansion mould for MRS 500
2 sets
9
90-250 PVC-O pipe forming machine
1 set
10
HYQY-250 Six claw Haul-off machine in servo control
1 set
11
HYQG-250 Planetary Cutting machine
1 set
12

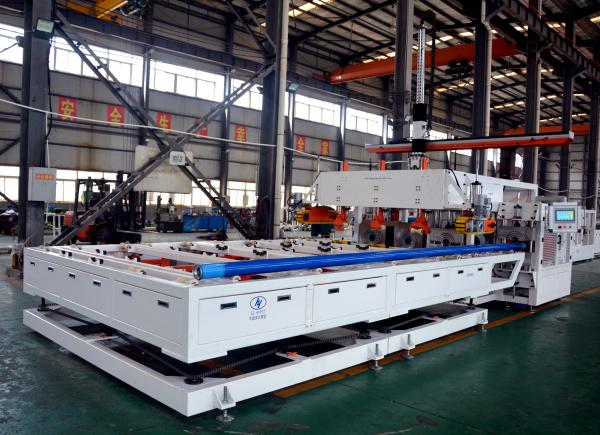

HYKK-250 PVC-O Belling Machine with belling mould
1 set
13
Spare parts
1 set
China National Test Report For HYPET PVC-O Pipe
Price for reference
No.
PVC-O pipe sizes
Extruder model
Motor
Max Output
Price
1
90-250mm
PS95/34
55kw
160-280kg/h
$500000
2
160-400mm
PS112/34
90kw
280-510kg/h
$700000
3
200-500mm
PS125/34
110kw
510-800kg/h
$780000

Key Advantage Points of PVC-O Pipe:

1. Exceptional Strength & Pressure Resistance
- Tensile strength reaches 50-80 MPa (vs. 40-50 MPa for standard PVC-U).
- Pressure rating up to PN16-PN40, withstanding 2-4x higher pressure than traditional PVC.

2. Lightweight Design
- 60%-70% lighter than metal pipes and 20%-30% lighter than standard PVC (e.g., DN200 pipe ≈3.5kg/m).
- Installation efficiency increased by 30%-50%, reducing labor and transport costs.

3. Corrosion Resistance
- Tolerates pH range 2-12, resistant to 99% soil chemicals (salt, acid, alkali).
- Zero coating required; maintenance cost is 1/5-1/10 of metal pipes.

4. Fatigue & Impact Resistance
- Withstands ≥10 million pressure cycles (ISO 16422 compliant).
- Impact strength at -10°C remains ≥20 kJ/m² (vs. <10 kJ/m² for standard PVC-U).

5. Longevity
- Accelerated aging tests confirm ≥50-year lifespan (ISO 11673).
- Field performance: zero-failure records in projects over 30 years (e.g., Australian water supply).

6.Sustainability
- Production energy reduced by 40%-50% vs. metal pipes; 30% lower carbon footprint.
- 100% recyclable, compliant with EU RoHS standards.

7. Cost Efficiency
- Lifecycle cost savings of 25%-40% vs. metal (80% less maintenance).
- Superior hydraulics (Hazen-Williams C=150), cutting pumping energy by 10%-15%.

8.Versatility
- Global applications:
- Water supply (max DN1000, PN25).
- Irrigation (Israel’s 100,000-hectare water-saving projects).
- Industrial pipelines (chemical resistance, operating temp ≤45°C).
Recommend Products
SN
Item
Output
Price
1
16-32mm four pipe line with 65/132-45kw extruder
420kg/h
US$45,700
2
10 cavities belling machine for four strand conduit pipe 16-32 line
/
US$11,400
3
Automatic packaging machine for four strand pipes 16-32 machine
/
US$21,800
4
High speed 50-110 PVC pipe production line
550kg/h
US$52,700
5
High speed 110-200 PVC pipe extrusion line
1000kg/h
US$134,300
6
20-63 Dual PVC pipe extrusion machine
320kg/h
US$38,400
7
90-110 Double PVC pipe production line
500kg/h
US$61,650
8
20-110mm two die head PVC pipes production line
250kg/h
US$35,800
9
110-250mm PVC drainage pipe making production line
500kg/h
US$70,200
10
250-400 mm PVC big size waste water pipe production line
650kg/h
US$93,800
11
315-630mm PVC big size pipe production line
900kg/h
US$157,900
12
90-250 PVC-O pipe making machine
180-360
US$500,000
13
160-400 PVC-O Bi Strenching pipe line
330-550
US$700,000
14
200-500 OPVC pipe production line guarantte MRS500
520-800
US$780,000
15
Corrugated pipe line 16-50 without molds
80kg/h
US$37,950
SN
PVC Twin Conic Screw Extruder
Output
Price
1
ZS35/80- main motor 7kw Extruder machine
50-70kg/h
$10,800
2
ZS45/100-main motor18kw Extruder machine
60-100kg/h
$13,200
3
ZS51/110-main motor22kw Extruder machine
80-125kg/h
$13,800
4
ZS55/120-main motor30kw Extruder machine
150-220kg/h
$15,200
5
ZS65/132-main motor37kw Extruder machine
220-300kg/h
$17,000
6
ZS65/132-main motor45kw Extruder machine
300-400kg/h
$18,500
7
ZS80/156-main motor55kw Extruder machine
450-500kg/h
$26,900
8
ZS80/173-main motor75kw Extruder machine
500-600kg/h
$31,500
9
ZS95/188-main motor110kw Extruder machine
700-850kg/h
$42,800
SN
PVC extruder Twin Parallel Screw Extruder
Output
Price
1
PS67/28-main motor 30kw Extruder machine
280-330kg/h
$23,950
2
PS75-28-main motor 37kw Extruder machine
300-350kg/h
$25,200
3
PS78/38-main motor 45kw Extruder machine
380-420kg/h
$28,570
4
PS92/28-main motor 55kw Extruder machine
480-530kg/h
$32,500
5
PS93/38-main motor 75kw Extruder machine
670-700kg/h
$36,500
6
PS112/28-main motor 90kw Extruder machine
750-830kg/h
$42,800
7
PS125/28-main motor 110kw Extruder machine
800-950kg/h
$53,800
8
PS130/28-main motor 132kw Extruder machine
1000-1150kg/h
$62,800
9
PS140/28-main motor 160kw Extruder machine
1700-1850kg/h
$72,800
Item
Suitable Extruder
Type
Price






Screw & Barrel
For ZS55/120 Conic Twin Screw Extruder
A
$2580
For ZS55/120 Conic Twin Screw Extruder
B
$2650
For ZS55/120 Conic Twin Screw Extruder
C
$3100
For ZS65/132 Conic Twin Screw Extruder
A
$2950
For ZS65/132 Conic Twin Screw Extruder
B
$3150
For ZS65/132 Conic Twin Screw Extruder
C
$3600
For ZS80/156 Conic Twin Screw Extruder
A
$5500
For ZS80/156 Conic Twin Screw Extruder
B
$6100
For ZS80/156 Conic Twin Screw Extruder
C
$6650


Gear box
For ZS55/120 Conic Twin Screw Extruder


Vertical
$3050
For ZS65/132-37 Conic Twin Screw Extruder
$3235
For ZS65/132-45 Conic Twin Screw Extruder
$3350
For ZS80/156 Conic Twin Screw Extruder
$4675
